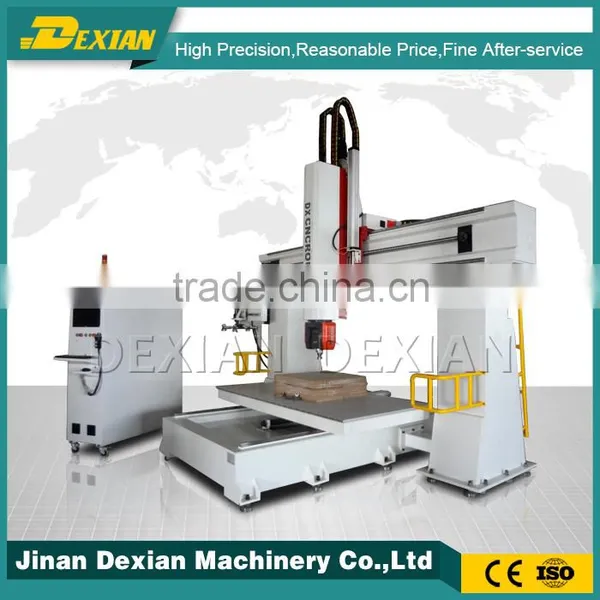

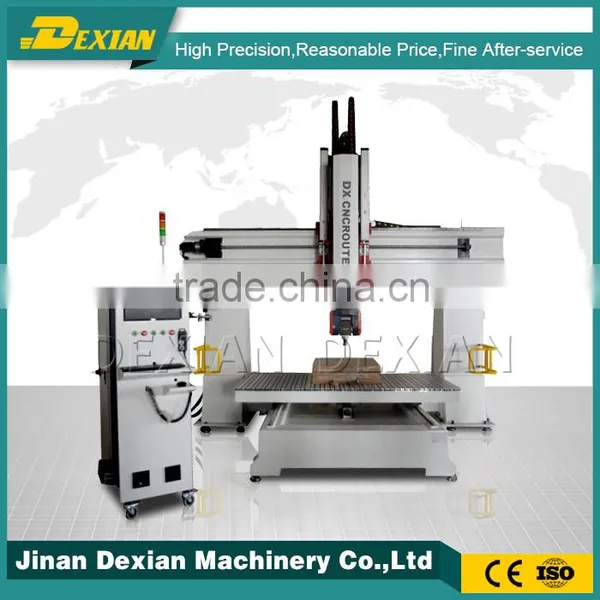

Mini Cnc 5 Axis DX-1224-5A Axis Cnc Machine With 9kw HSD Spindle and High Quality

mini cnc 5 axis DX-1224-5A axis cnc machine with 9kw HSD spindle and high quality

Main Features

1. Italy OSAI controlling system, steady performace, powerful function,easy operation

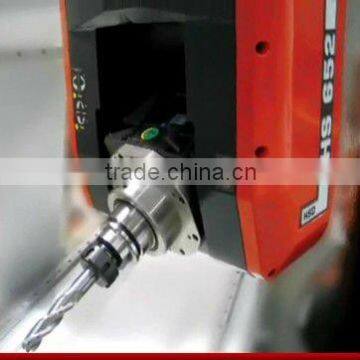

2. Well-known Italy HSD air cooling spindle, high precision, long life time, steady working

3. Well-designed whole cast steel lathe bed, well welded, no distortion for whole structure.

4. Adopt Japan THK linear square guide rail system, working steadily, high precision, long life time.

5. Movable table structure, working more steadily than that with moving gantry, especially while engraving     waved plate

6. Diversified controlling. It can control working speed, air line speed and cutter setting speed separately which improves both processing quality and efficiency.

Technical Parameters

X,Y,Z working area 1200*2400*900mm
Table size 1200*2500mm
Spindle 9kw HSD spindle, 1000-24000rpm
Motor  Yaskawa Servo motor and driver
Moving mode Table moving
C travelling ±180°
A travelling ±112.5°
Beam spacing(MM) 4260
Beam Height(MM) 2150
Vacuum pump Dry Vacuum pump 5.5kw
product fixed form vacuum table
Tool magazine  Round tool tool magazine (6 positions)
X, Y, Z Travelling Potioning Accuracy ±0.03/300mm
X, Y, Z Travelling Repositioning Accuracy ±0.05mm
Frame Cast steel
X, Y structure rack and pinion drive, THK rail linear bearing from Japan
Max Rapid Travel Rate 45,000mm/min
Max working speed 30,000mm/min
Z Axis    20m/min
 c Axis  20m/min
 A Axis  20m/min
Machine size     4260*2150*3300
 Total Power(kw) 24KW
Maximum lifting weights  20T
Working voltage AC380V/50Hz
Command languages G code,F/S
Control system OSAI
Collet BT40
Limit switch Omron

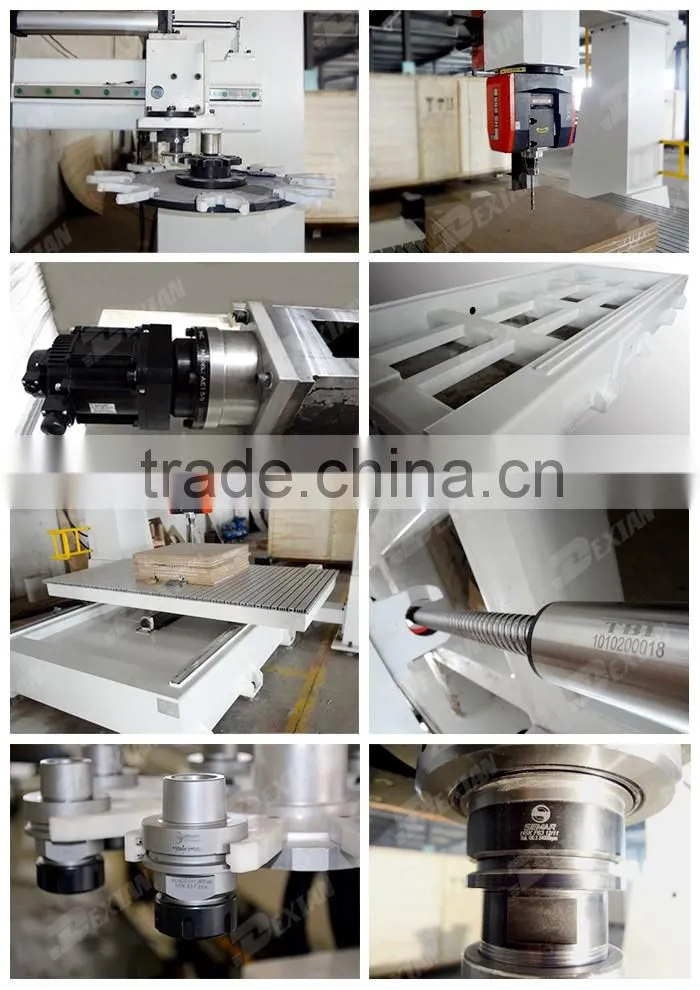

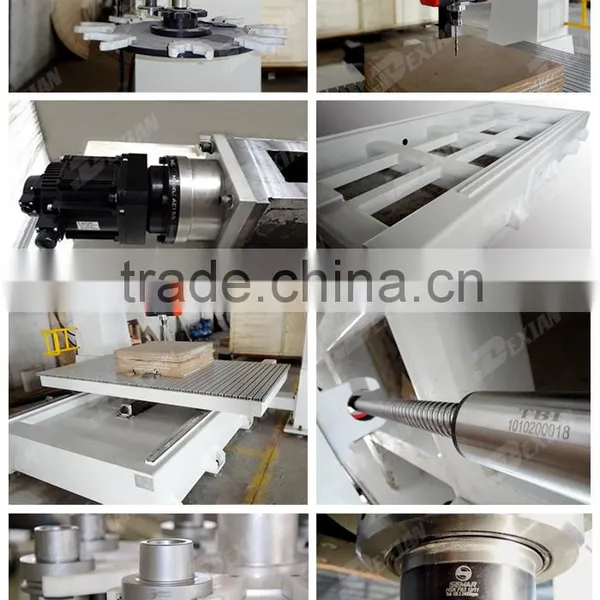

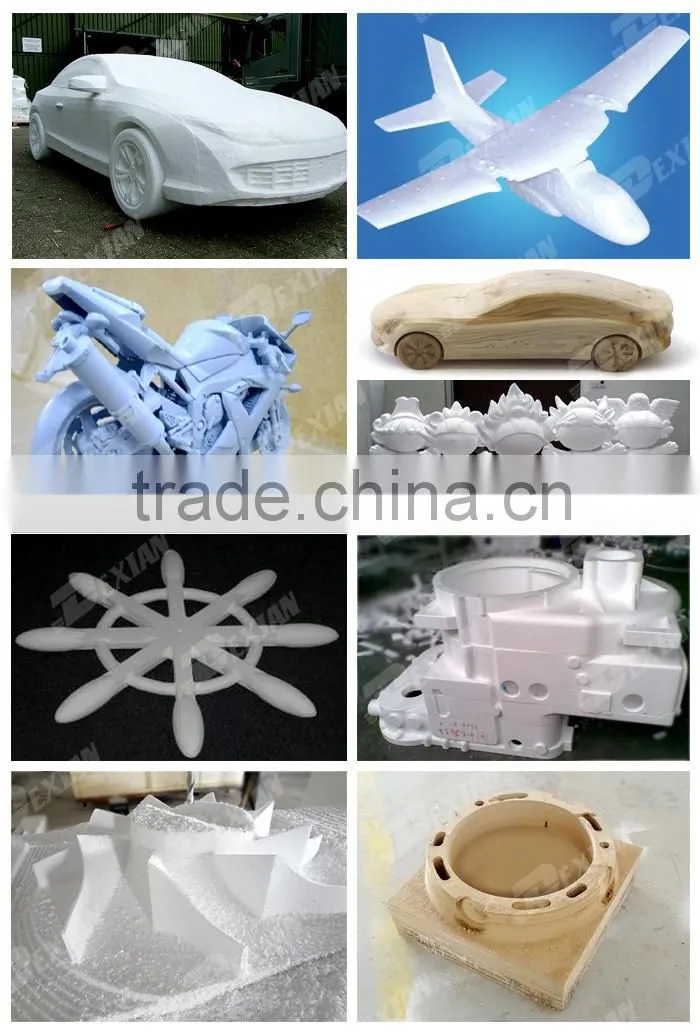

DX-1224  5 axis CNC Router machine parts and Sample

Applicable Industries

1.Mould industry: metalloid mould, especially suitable for automotive foam mould, wooden train/ship/car model and so on

2. Instrument Industry: Shaping large instrument and engraving on three-dimensional surface

3. Furniture industry:wood furniture,wooden jewelry box, wood carvings

Questions and Answer:

1.Are you a factory or trading company?
 We are the manufacturer and we have 10 years factory experience .As only the machine made by ourself  ,quality can be trusted,  and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit to our factory

2. How long is the delivery time?

For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.

3. How should I pay for my order ? what is the procession of this purchase ?
 You can do 30% prepayment at first, then we will start to make production.

 when the machine is ready , we will take pictures to you, and then you can do the ballance.

 after we got your payment. We will send the machine to you.
4. How about your service after sales ?  can your engineer speak fluent english ?
We offer the service from you got the machine,  including how to install the machine,

how to use machine. how to let machine work. and so on.  usually we will teach you how to do by email or by skype .our engineer has many years of experience for cnc machine service .  he can speak very good english ,

so he can slove the problem in short time.

5. How about the documents after shipment?

Aftershipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by client.

We are looking for agents from all over the world, welcome to be one of us!!
