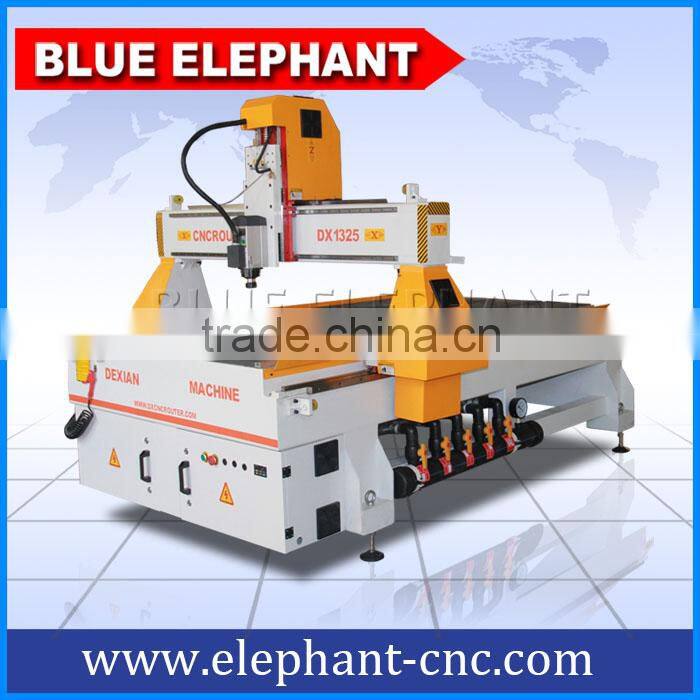

Jinan router cnc woodworking machine with good quality , cnc milling and cutting machine price , cnc machine for furniture
(More sizes for choice:1500*3000MM, 1800*3600MM, 2000*3000MM, 2000*4000MM. We also have ATC, multi-heads, 4 axis, 5 axis and mini desktop type.)
Features of router cnc woodworking machine:
1. Air cooling spindle----Italy HSD air cooling spindle
2. DSP control system----With hand held controller and USB interface,doesn't need to connect with computer,easy and convenient.
3. HIWIN linear rail 20# from Taiwan for 3 axes----smooth and precise transmission,low noise,and lifetime is 10 times longer than common rail way.
4. Optional rotary : 400mm diameter,1200mm length rotary device----help work on cylindricial objects.
5. Helical/oblique rack and gear transmission----ensure fast speed,big loading capacity,strong power,long lifetime, and it ensures the machine more stable.
6. Leadshine servo motor----5 sets,Z axis is with brake. Servo motor is more stable and powerful.
Parameter of woodworing cnc router machine:
| X,Y,Z Working Area | 1300x2500x800mm (any size) |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z Repositioning Accuracy | ±0.03mm |
| Table Surface | T-slot Table(vacuum for option) |
| Frame | Welded Structure |
| X, Y Structure | helical rack, Taiwan HIWIN Rail Linear Bearings |
| Z Structure | HIWIN Rail Linear Bearings and TBI Ball Screw |
| Max. Rapid Travel Rate | 33000mm/min |
| Max. Working Speed | 25000mm/min |
| Spindle Power | 4.5KW water cooling spindle ( Italy HSD spindle for option) |
| Spindle Speed | 0-24000RPM |
| Drive Motors | Leadshine servo motor |
| Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| Command Language | G Code |
| Operating System | DSP control System(Options: Ncstudio/Mach3 ) |
| Computer Interface | USB |
| Flash Memory | 512M |
| Collet | ER25 |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
Optional parts:
- vacuum table and vacuum pump
- 4.5kw/6kw/7kw/13.5kw Italy HSD air cooling spindle
- Japan YASKAWA / Panasonic / Taiwan DELTA Servo drivers and motors
- Oil mist cooling system for working on metal and stone
- Dust collect system : 3kw/5.5 KW double bag
- Working area: 1500*3000*200 mm / 2000*3000*200 mm / 2000*4000*200 mm
Pictures of details:
Application for dexian woodworking cnc router machine:
- various Wooden products,like Solid Wood Furniture,Solid Wood Door,Decorative Panel,Computer Desk,Office Furniture
- Advertising: Advertising sign, logo making, acrylic cutting, plastic molding, engraving on a variety of advertising decorative products materials
- Other industry: relief, widely used in craft gifts industry
- Aluminum industry, Cutting aluminum, aluminum composite panel, aluminum honeycomb panels, aluminum profile, 3D ornamental engraving process, wave board production, LED, neon trough literal cutting, plastic mold making light box . Acrylic, copper, PVC board, artificial stone, MDF board and other types of sheet processing.

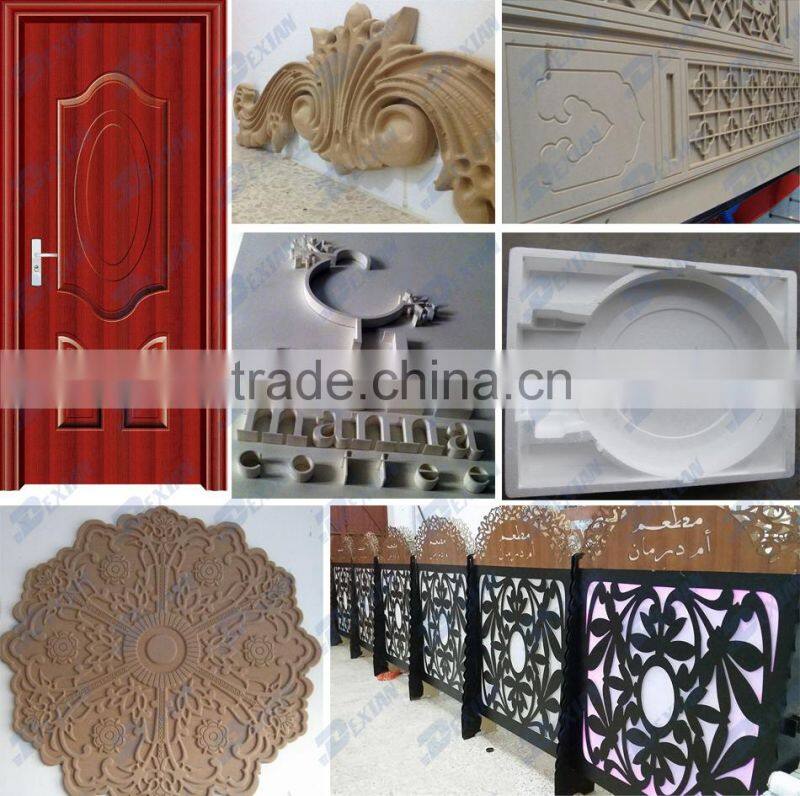

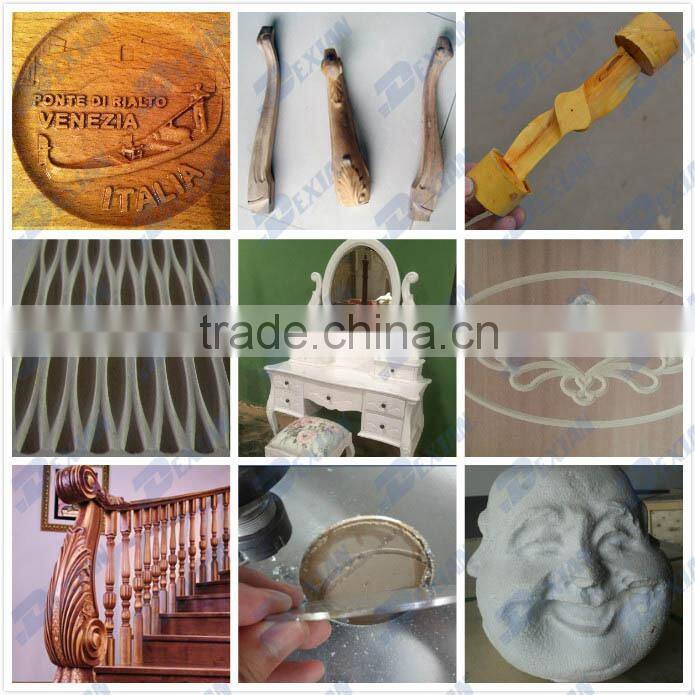

Working Samples:

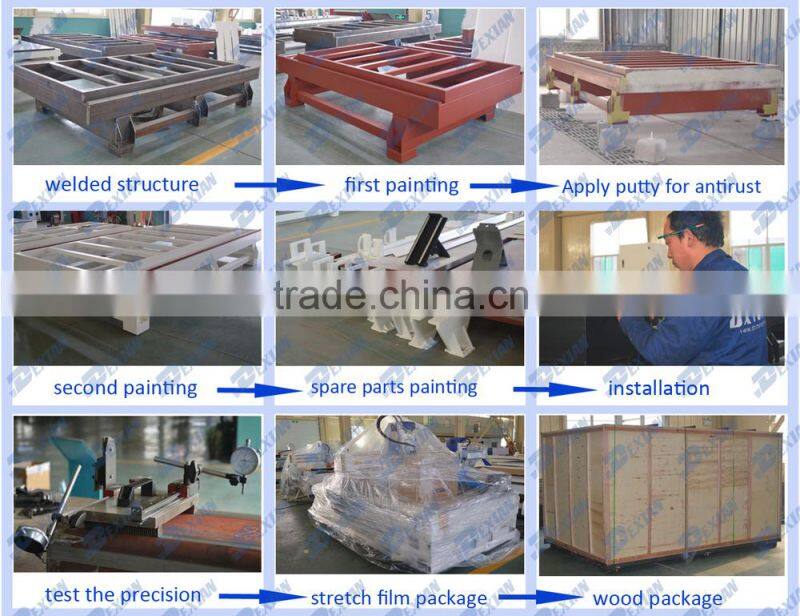

Production process:
Sales Terms
Guarantee:
12 months for the whole machine.
Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free.
Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1, Technical support by phone, email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.
You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
Welcome to visit our factory!
Contact us:
Skype: elephantcnc
WhatsApp/Mobile: 0086-15064026772
