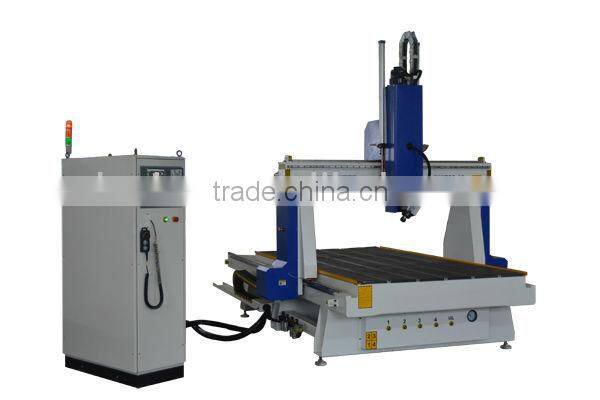

China top brand good quality High Z axis travelling mold making 4 axis cnc router cnc shoes mould making
Application:
Woodworking: three-dimensional wave board processing, cabinet doors, solid wood doors, wooden craft, paint doors, screens, craft fan window processing, shoe polisher, game cabinets and panels, mahjong table, computer desk and furniture products, auxiliary processing .
Advertising industry: advertising signs, logo making, acrylic cutting, plastic molding, a variety of materials advertising the production of decorative products.
Mold Industry: engraving copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wood and other non-metallic mold.
Other Industry: a variety of large-scale relief sculpture, shadow carving, widely used in the craft industry.
Features :
1, High Z travel: 700mm
2, Italy HSD brand air cooling spindle
3, Japan YASKAWA servo
4, Germany Eisele Reducer
5, Rotary device with servo: 400mm diameter,1500mm length
6,Taiwan SYNTEC control system
7, Helical rack gear
8, Taiwan TBI ball screw with high precision
9, 4th axis can move ±100°
10, 4th axis + Rotary device
Parameter:
1 | X,Y,Z Working Area | 1500x3000x700mm*±100° |
2 | Table Size | 1500×3500mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
4 | X,Y,Z Repositioning Accuracy: | ±0.01mm |
5 | Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
6 | Frame | Big Steel Tube Structure |
7 | X, Y Structure | Helical rack gear , HIWIN Linear guide |
8 | Z Structure | Imported Ball Screw , HIWIN Linear guide |
9 | Max. Power Consumption | (Without Spindle) 4.2Kw |
10 | Max. Rapid Travel Rate | 40000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Spindle Power | HSD spindle 4.5kw( Italy ATC spindle for option) |
13 | Spindle Speed | 0-18000RPM |
14 | Drive Motors | Japan 850 W YASKAWA servo motor |
15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
16 | Command Language | G Code |
17 | Operating System | SYNTEC Control System (model: EZ4M) |
18 | Computer Interface | USB |
19 | Flash Memory | 512M |
20 | Collet | ER25 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | UG , Power mill |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
25 | Packing Size | 4.1*2.3*2.6m |
26 | N.W. | 2500KG |
27 | G.W. | 2800KG |
28 | Optional Parts | Dust Collector/ Dust Hoods for three Axis |
Vacuum Pump | ||
Rotary System | ||
Mist-cooling System | ||
SIEMENS/DELTA/ Panasonic Servo Motors | ||
Colombo Spindle | ||
X:2.5m, Y:4m, Z:1.2m |

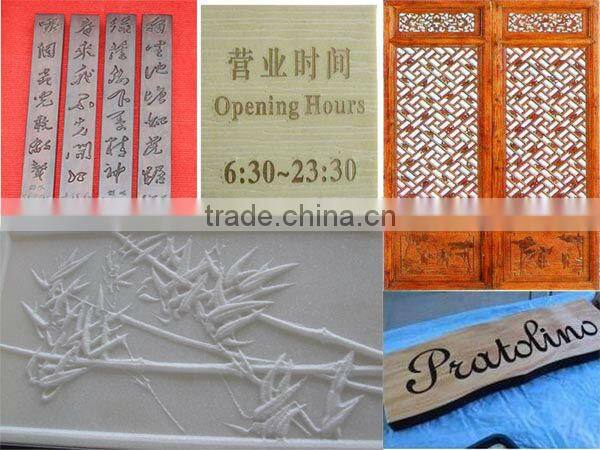

Product sample:
Our company has obtained CE, FDA and ISO
certificates.
We promise to provide high quality product with
competitive price!!
What we will provide is best quality,best service and best price !
