sculpture wood carving cnc router machine , wood working cnc router with Aluminum profile T-slot working table
- 200 Set / Sets per Month
- any port
- T/T L/C D/P D/A Credit Card PayPal
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | DX | Model Number: | DX-9015 | Voltage: | 220/110V,1Phase,50/60HZ |
Power(W): | 2.2kw | Dimension(L*W*H): | 2030*1610*1680mm | Weight: | 560kgs |
Certification: | CE,CIQ,ISO | Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

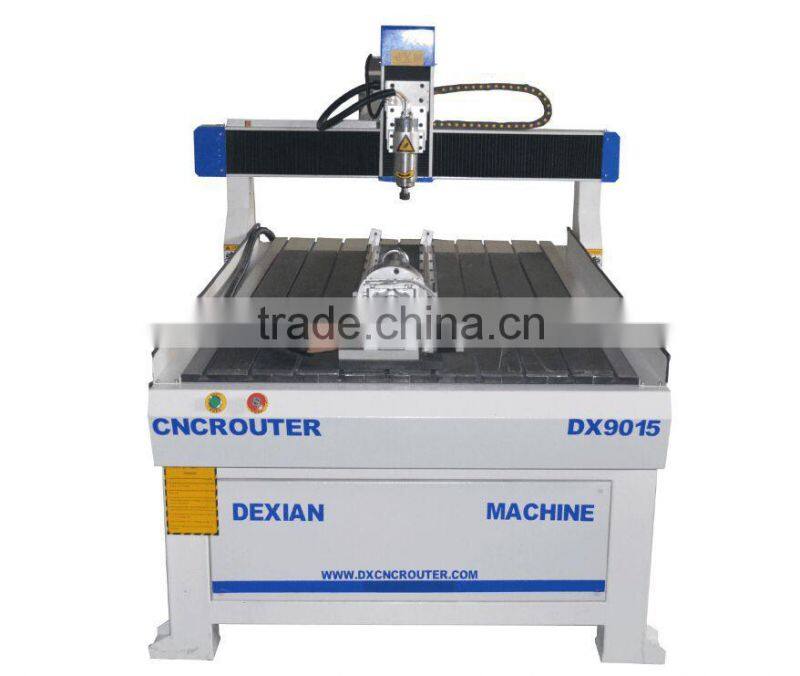

sculpture wood carving cnc router machine , wood working cnc router with Aluminum profile T-slot working table
Features:
1. Adopt 2.2kw water-cooled spindle, 0-24000RPM,great cooling effect, high speed, low noise and long life.
2. Cast iron machine body,heavy duty,stable and strong.
3. Popular DSP 4 axis control system,X,Y,Z axis and rotary axis can work at same time,very powerful function. It also has a hand held controller,with USB interface,doesn't need connect with computer,easy and convenient for every buyer.
4. Ball screw gives it good resolution and less noise. We use Taiwan TBI brand,more stable and precise.
5. We use accurate Taiwan HIWIN square linear for XYZ axis, more stable,higher precision,longer lifetime and lower noise.
6. Rotary device(4th axis),help work on cylindrical objects.
Parameter:
Working area | 900*1500*200mm |
Table | Aluminum profile T-slot working table with PVC protection |
Spindle power | 2.2kw water cooling spindle,24000rpm |
Motor system | Stepper motor system(option:servo motor) |
Control system | DSP 4 axis control, support USB interface |
Transmission | TBI ballscrew from Taiwan |
Linear rail | Taiwan HIWIN linear guide for XYZ axis |
Inverter | 2.2kw FuLing inverter(option:Delta inverter fromTaiwan) |
Driver | Ledshine driver(top brand in China) |
structure | cast iron bed |
Speed | Max travelling speed:6000mm/min |
Max working speed: 5000mm/min | |
Switch | Japanese OMRON Switch |
Cable | Highly flexible towline;fire-resistant double-sheathed cable |
Software | Type3,Artcam |
Package | Plywood case |
Working voltage | AC220V/1PH/50Hz (option:110V) |
Photos of machine parts:
water cooling spindle and FuLing inverter

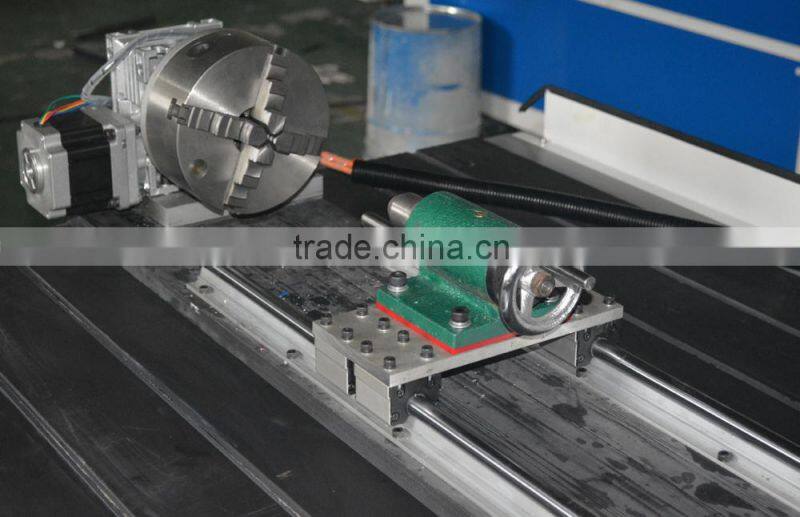

rotary device(4th axis):
Taiwan HIWIN square linear guide and slider:
DSP 4 axis controller:
Application:
1.WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal mold s, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.Relief sculpture and 3D engraving
5.Cylindrical object
Samples:
More models:

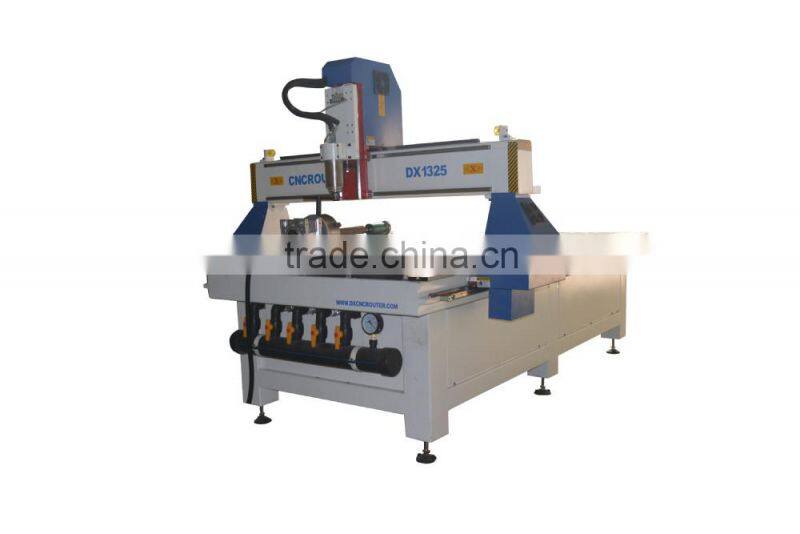

1325 with Z axis 500mm
1325 with Z axis 300mm

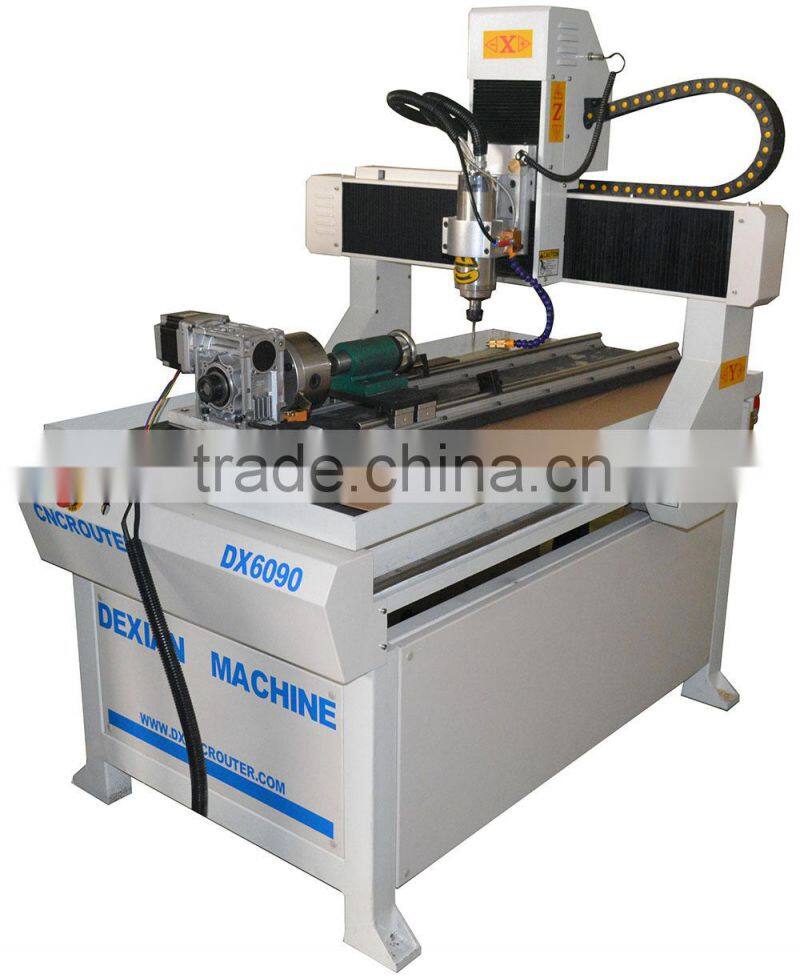

6090 with Z axis 200mm
1325 with Z axis 800mm
Warranty and technical support
12 months for the whole machine
24 Hours technical support by email or calling
user friendly English manual and Video CD for machine operation and maintain
After-sale service
1. Small parts will be supplied to you for free, such as, software CD, dongle.
2. Any problem will be replied to you within 24 hours!
3. By video, solution manual in English, Email, Skype, QQ, telephone etc.
4, We supply lifelong after-sale service under our professional’s guide for free!
5, Free training in our factory.
Certificate:
