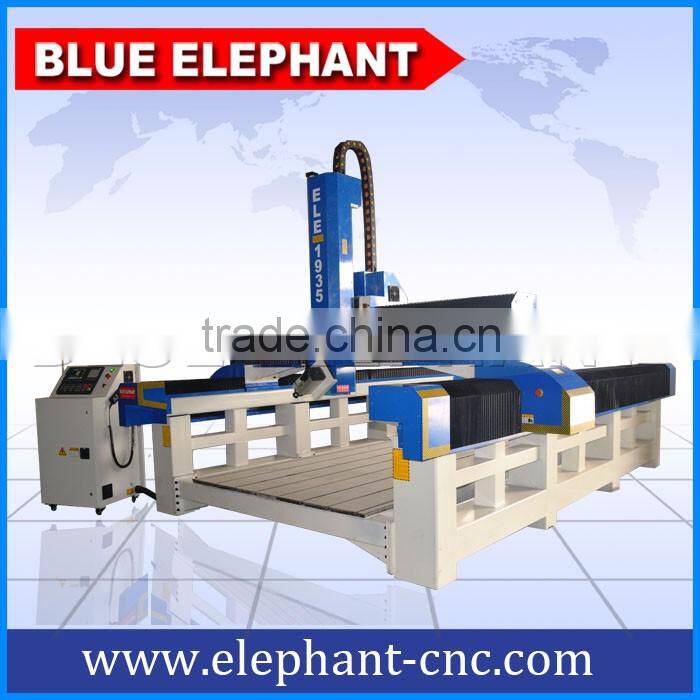

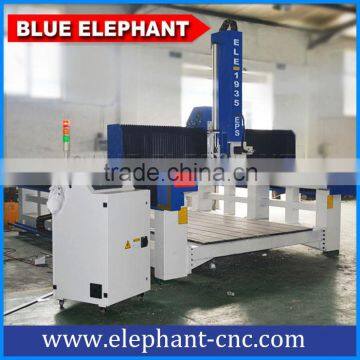

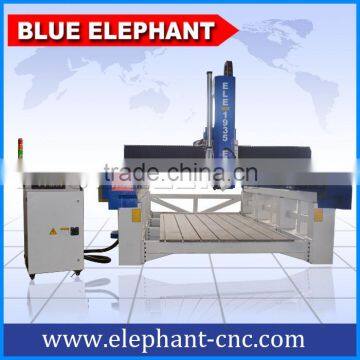

1935 Styrofoam 4 axis cnc wood router engraver machine , cnc machine 4 axis mould foam
Video of Styrofoam cnc router:
Video on youtube: /watch?v=zKaDRKbTGdQ
Advantages of Styrofoam cnc router:
- Self-lubricating, life-long maintenance-free Taiwan guide rail.
- Italian high-speed spindle, with top speed of 18000rpm, guaranteering maximum processing efficiency and productivity.
- Whole working table cast by resin sand. The annealing and other heat treatment methods ensure that the whole structure is tested to the limit for sturdiness and reliability.
- Taiwan controller reads the codes in an efficient manner. Online simulation and monitoring function are available. Processing efficiency and safety are guaranteed.
Features of Styrofoam cnc router:
- Effective working area :1900x3500x800mm

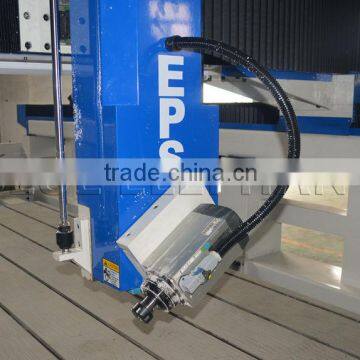

- Italy HSD brand air cooling spindle: 4.5kw
- 4th axis can move ±100°
- Taiwan DELTA inverter: 5.5kw
- Japan YASKAWA servo driver 850KW
- Taiwan SYNTEC control system 4 axis 6MB model
- Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z travel
- Taiwan TBI ball screw with high precision
- Divided structure bed structure ,Fixing with screws

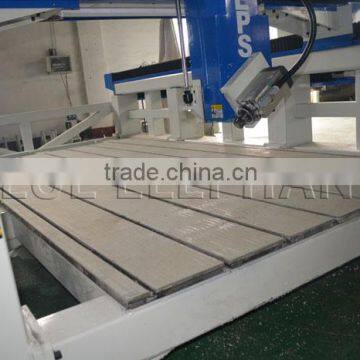

- Working table:T-slot working table.
- Japan Shimpo reducer

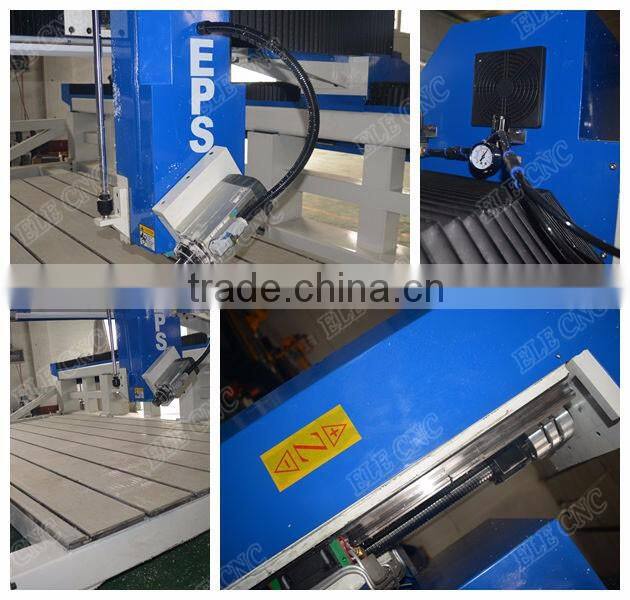

Product Details of Styrofoam cnc router:
Parameters:
Description | Parameter |
X,Y,Z Working Area | 1900x3500x800 mm*±100° |
Effective working area | 2860x3500x1450 mm |
X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
X,Y,Z Repositioning Accuracy: | ±0.01mm |
Table Surface | T-slot Table |
Frame | Divided structure bed structure ,Fixing with screws |
X,Y Structure | Helical rack gear , 4pcs HIWIN #35 Linear guide |
Z Structure | TBI ball screw,4 pcs slider |
Max. Power Consumption | (Without Spindle) 6Kw |
Max. Rapid Travel Rate | 40000mm/min |
Max. Working Speed | 30000mm/min |
Spindle Power | HSD spindle 4.5kw |
Spindle Speed | 0-18000RPM |
Drive Motors | Japan 850W YASKAWA servo |
Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
Command Language | G Code |
Operating System | SYNTEC Control System 6MB |
Computer Interface | USB |
Flash Memory | 512M |
Collet | ER30 |
X,Y Resolution | <0.01mm |
Software Compatibility | UG , Power mill |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
PS: All the working area and specifications can be customized according to your requests.
Application:
Ideal for automobile mold industry, suitable for EPS foam, casting wood mold, automobile interior decoration, engineering plastic and other non-metal materials .
Samples show:
Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 25 working days after payment.
Welcome to our factory:
Jinan Dexian Machinery Co.,Ltd
---10 years factory experience
---Professional CNC machinery manufacturer
---very professionally produce 3 axis,4 axis, 5 axis, ATC cnc router,laser cutting machine
---The price will be 20% off in 2016
Looking forward for the agents from all over the world! Welcome to contact us!
