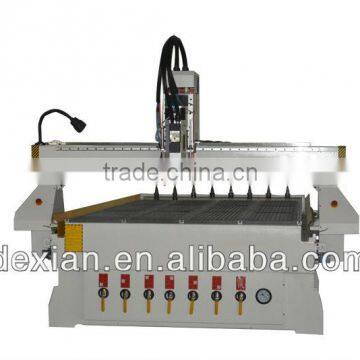

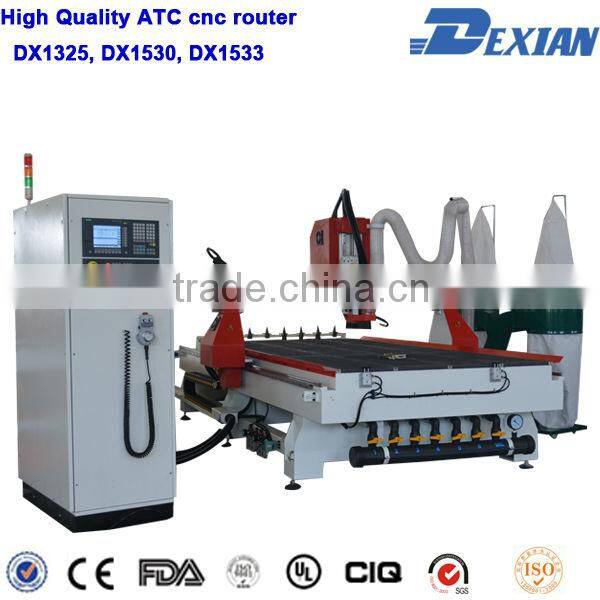

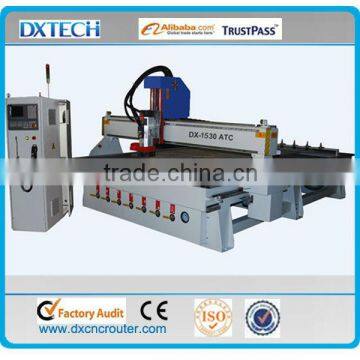

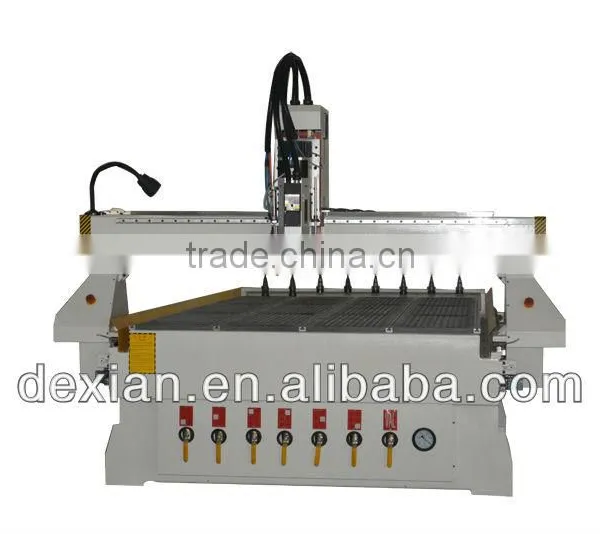

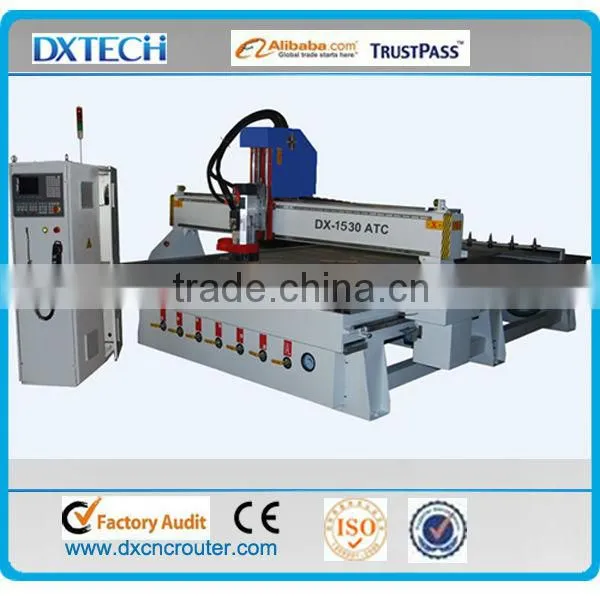

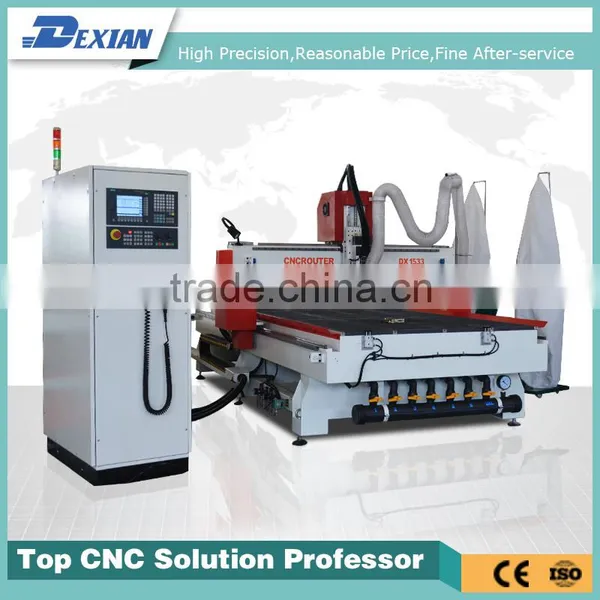

Auto Tool Changer/CNC Router with high performance machine 1530
- 1500x3000 effective working area, Z axis 200mm
- 9KW Italy HSD ATC air cooling spindle
- 11kW Taiwan DELTA inverter

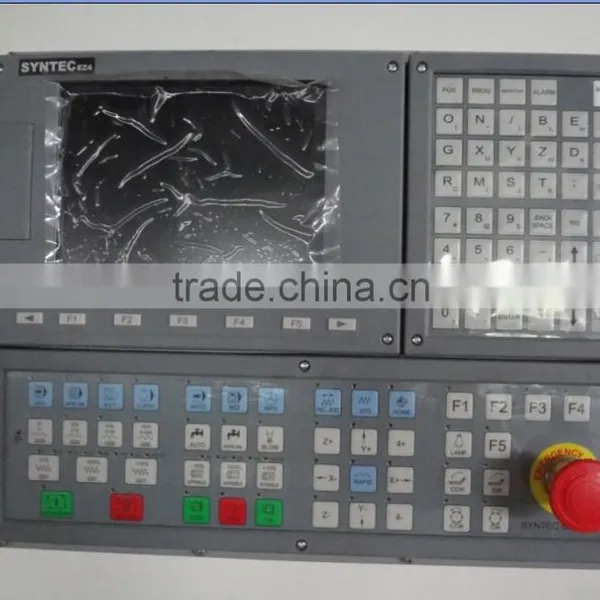

- Taiwan SYNTEC control system 6MB
- 8tool linear magazine
- 850w Japan YASKAWA servo motor and 1.0kw driver
- Taiwan HIWIN Linear Guide 25#
- Taiwan TBI ball screw
- Helical rack gear for X,Y axis
- T-slot&vacuum working table
- Japan OMRON Limit switch
- French Schneider electirc spare parts
- New type thicker and bigger heavy duty welded frame and gantry
- All the working size and specifications can be customized according to your requests

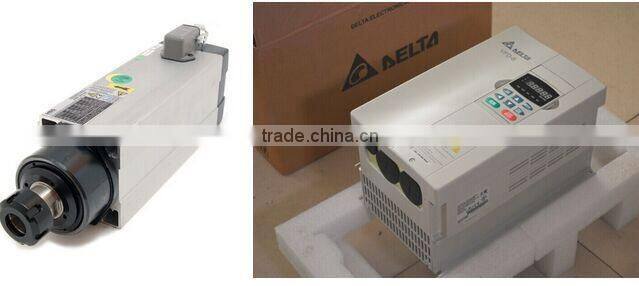

9kw Italy HSD spindle andTaiwan DELTA inverter:

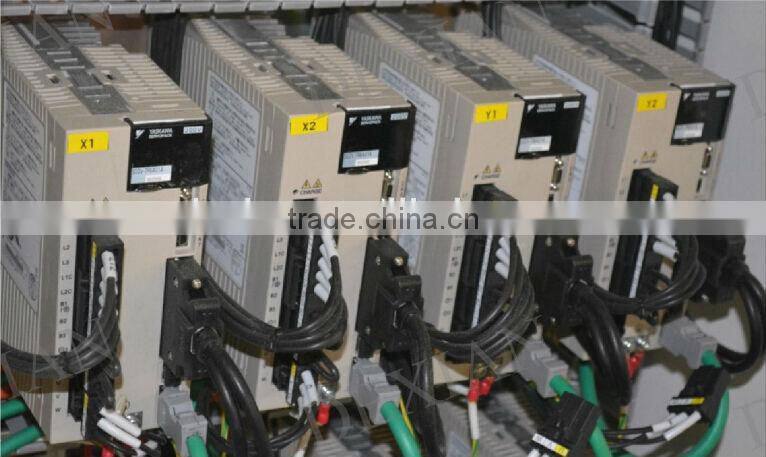

1000w Japan YASKAWA servo driver

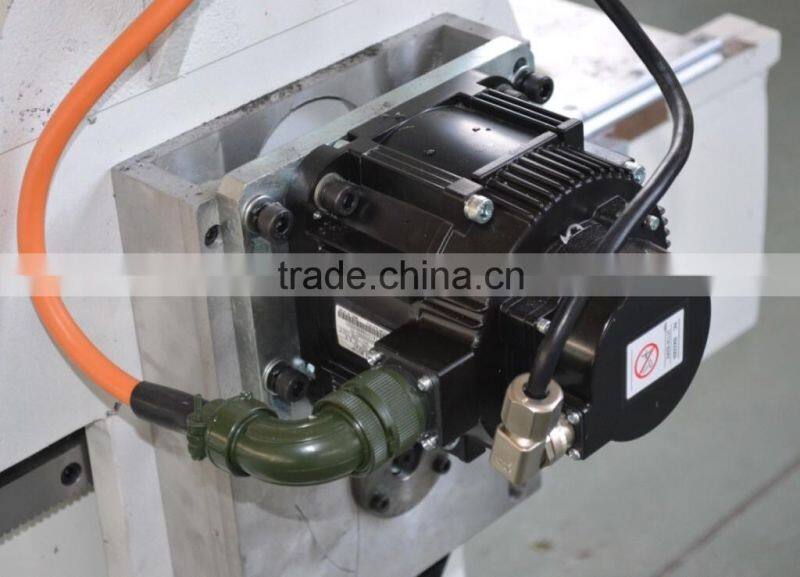

YASKAWA servo motor:

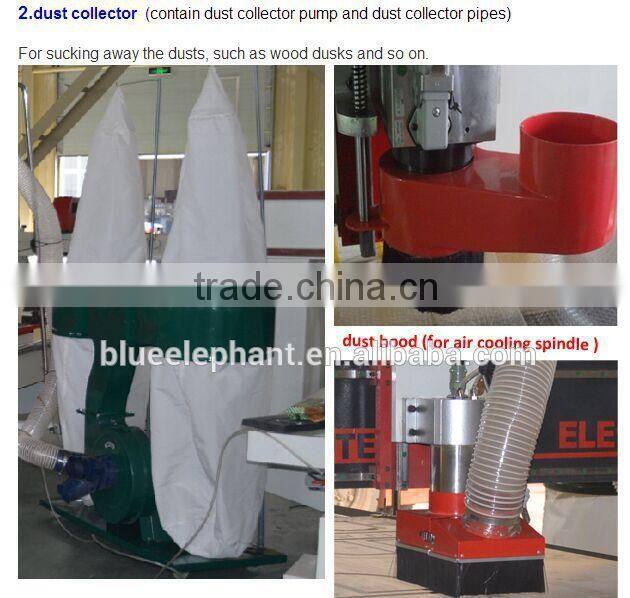

Option Parts:
Technical Parameters:
working Area |
1500x3000x200mm(Can be customized) |
Traveling Positioning Accuracy |
±0.03/300mm |
Repositioning Accuracy |
±0.03mm |
Table |
Vacuum & T-slot Table |
Frame |
Welded Structure |
X, Y axis |
Hiwin 20# Rail Linear Bearing |
Z axis |
Taiwan TBI Ball Screw |
Max. Power Consumption |
(Without Spindle) 2.5kw~3Kw |
Max. Rapid Travel Rate |
45m/min |
Max. Working Speed |
25m/min |
Spindle Power |
9KW Italy HSD air cooling spindle |
Spindle Speed |
24000RPM |
Drive Motors |
Japan Yaskawa servo 850w |
Working Voltage |
AC380V/50/60Hz,3PH (Option: 220V) |
Command Language |
G Code |
Operating System |
DSP (Options: Ncstudio/Mach3 PC Software) |
Computer Interface |
USB |
Collet |
ER25 |
X,Y Resolution |
<0.01mm |
Software Compatibility |
Type3/UcancameV9/Artcam Software |
Running Environment Temperature |
0 - 45 Centigrade |
Relative Humidity |
30% - 75% |
More modle for option:
About our service
Guarantee:
12 months for the whole machine.
Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free.
Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1, Technical support by phone, email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.
You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
