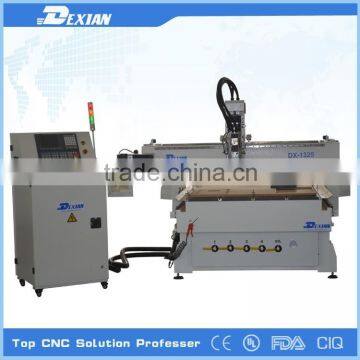

European quality siemens 9kw servo motor cnc router/cnc router spindle motor

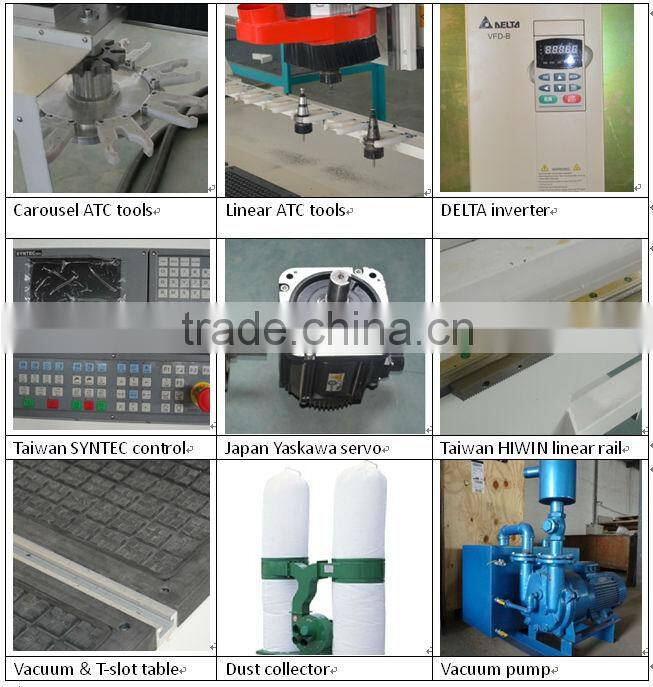

Machine Description of cnc router spindle motor :
1, 8 positions of tools,carousel auto tool changer,with crossbeam,in the right side of spindle,making it faster to change tools.
2, Imported Italy HSD air cooling spindle,powerful in cutting & engraving,has after-sale service all over the world. Matched with Taiwan DELTA inverter.
3, Taiwan SYNTEC (6MB) control system,support offline operation;even there is sudden electricity power-off,you needn't reset from beginning.
4, HIWIN linear rail 25# from Taiwan,smooth and precise transmission,low noise;lifetime is 10 times longer than common rail way.
5, Vacuum & T-slot worktable,can both absorb big materials by vacuum power and fix small materials by clamps. There is MDF board on it for protection.
6, Japan Yaskawa servo motors and drivers,Z axis is with band brake,very powerful in use.
Specifications of cnc router spindle motor :
1 |
Model |
DX- 1325 ATC / DX- 1650 ATC |
2 |
X,Y,Z Working Area |
1300x2500x200mm/1600x5000x200 |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.01/300mm |
4 |
X,Y,Z Repositioning Accuracy |
±0.01mm |
5 |
Table Surface |
Vacuum and T-slot Combined |
6 |
Frame |
Thicken steel Square Tube Heavy structure ,15mm thicken steel gantry with T type |
7 |
X, Y Structure |
Helical rack, Taiwan HIWIN 25# square linear guide way |
8 |
Z Structure |
Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail |
9 |
Max. Power Consumption |
(Without Spindle) 4.5Kw |
10 |
Max. Rapid Travel Rate |
45000mm/min |
11 |
Max. Working Speed |
30000mm/min |
12 |
Spindle Power |
9KW HSD ATC spindle from Italy |
13 |
Spindle Speed |
0-24000RPM |
14 |
Drive Motors |
Japan Yaskawa servo |
15 |
Working Voltage |
AC380V/50/60Hz,3PH (Option: 220V) |
16 |
Command Language |
G Code, PLT |
17 |
Operating System |
Tawain SYNTEC/Germany SIEMENS |
18 |
Computer Interface |
CF card interface |
20 |
Collet |
ISO30 |
21 |
Inverter |
Taiwan DELTA 11kw |
22 |
Software Compatibility |
Type 3 /Artcam |

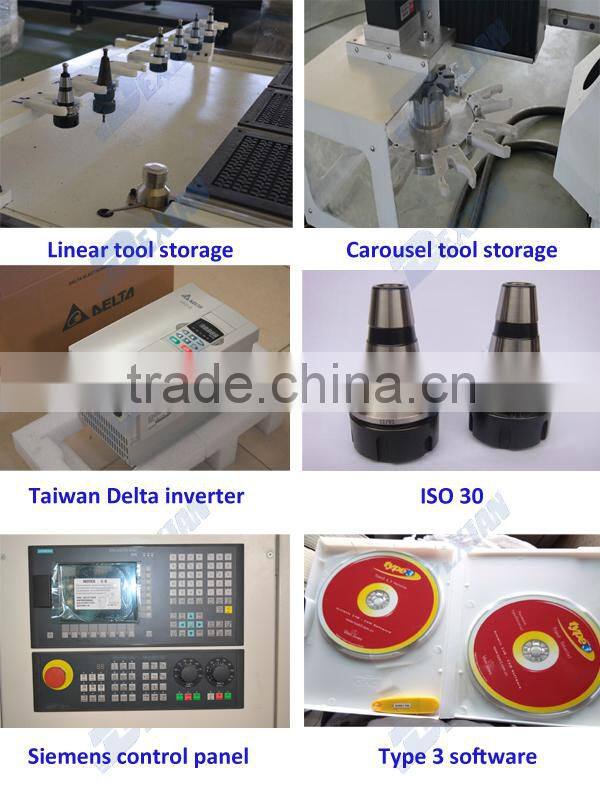

Additional Option parts :
Products sample of cnc router spindle motor :

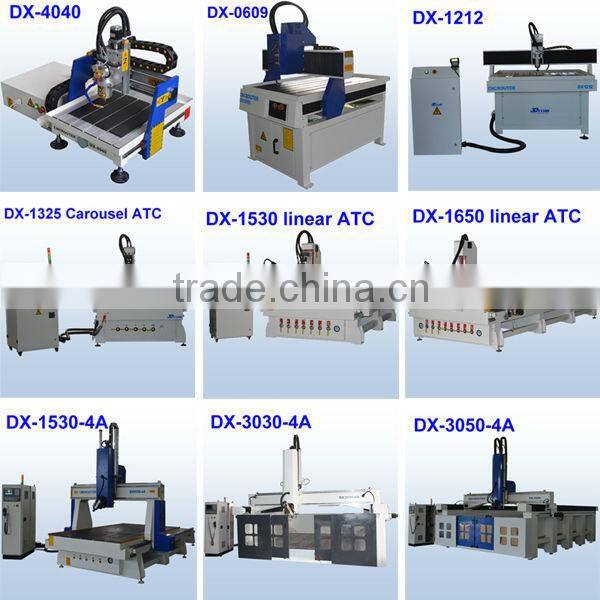

We have many other models cnc router.I believe we can meet your need.
Warranty:
18 months for the whole machine
After-sale service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, email
5, Our technician can give you remote guide online(Skype or MSN) if you have any question
6, We can record videos of operating the laser machine
7, Free training course in our factory
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
