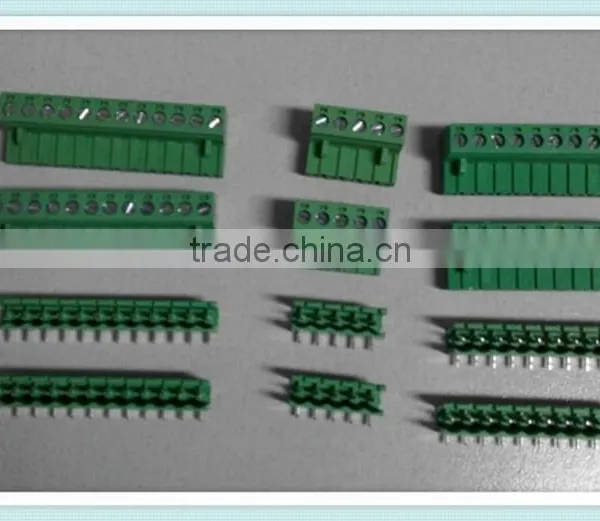

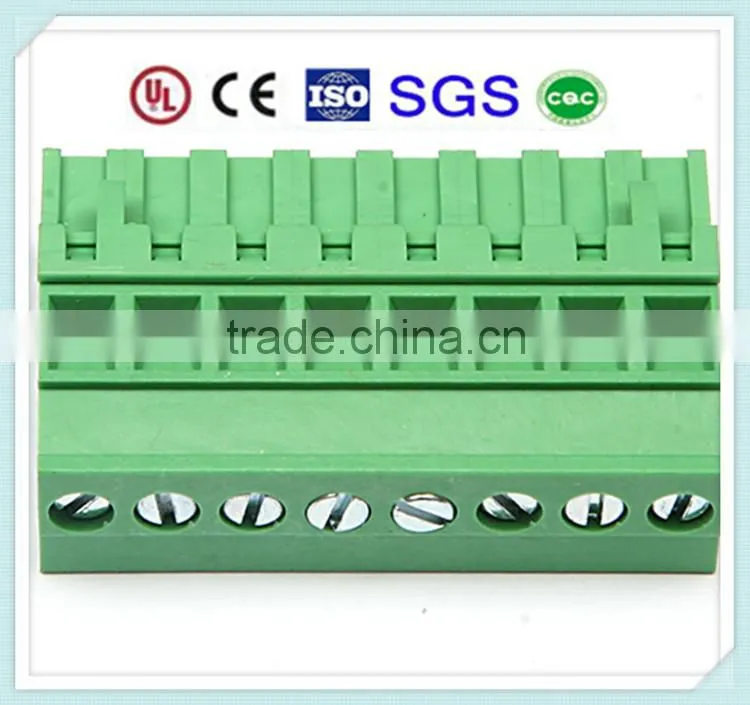

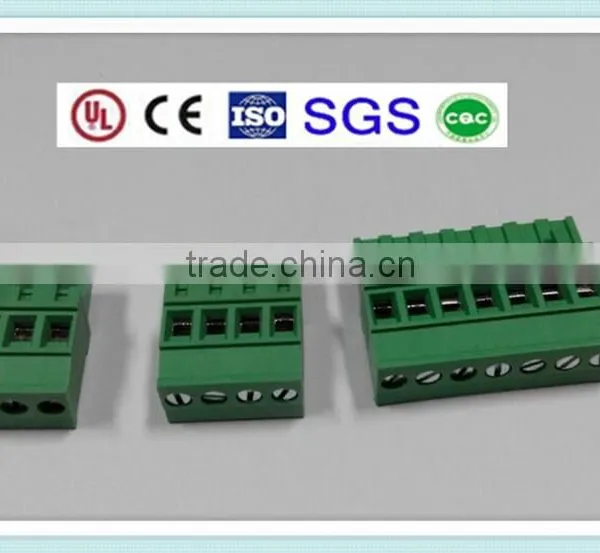

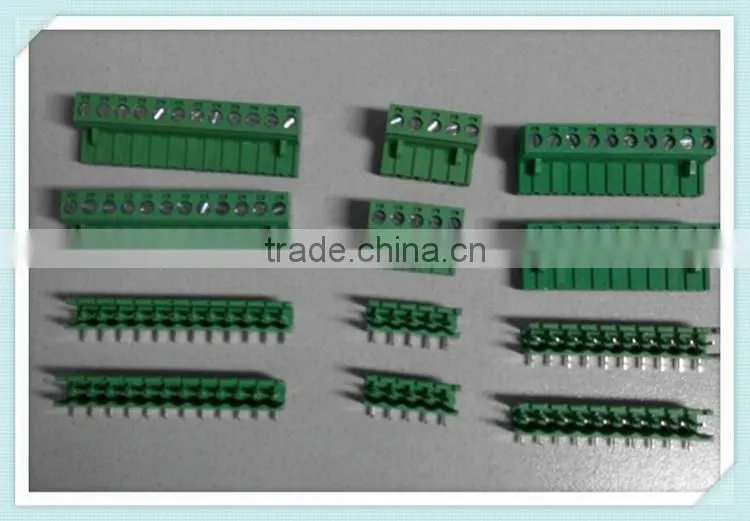

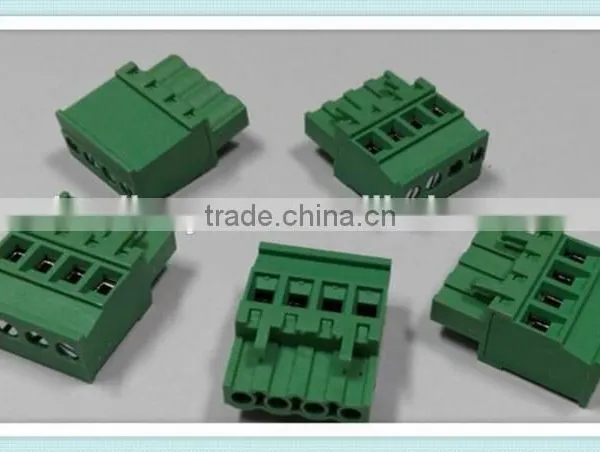

Plug-in Terminal Block XS2ESDV 300V 15A 5.0/5.08/7.62/3.81/3.5mm Pitch with UL, CE, ISO, SGS,CQC Approved

Plug-in Terminal Block  XS2ESDV 300V 15A 5.0/5.08/7.62/3.81/3.5mm Pitch

with UL, CE, ISO, SGS,CQC Approved

PCB Terminal Block XS2ESDV        ISO9001:2000   CE  CUL  CQC   SGS

Rated Voltage/Current: 300V 15A

Operation Temp.: -40°C~+105°C

Pitch:   5.0mm 5.08mm 7.62mm

Terminal Number:2-24P

Wire range:24-12AWG 2.5mm2

Insulation Housing: PA66. UL94V-0, Green

Screw: M2.5, Steel, Ni-Plated

Terminal Material: Brass, Tin-Plated

Fair

2011        ELECTRONICA       Japan

2012        ELECTRONICA       Germany

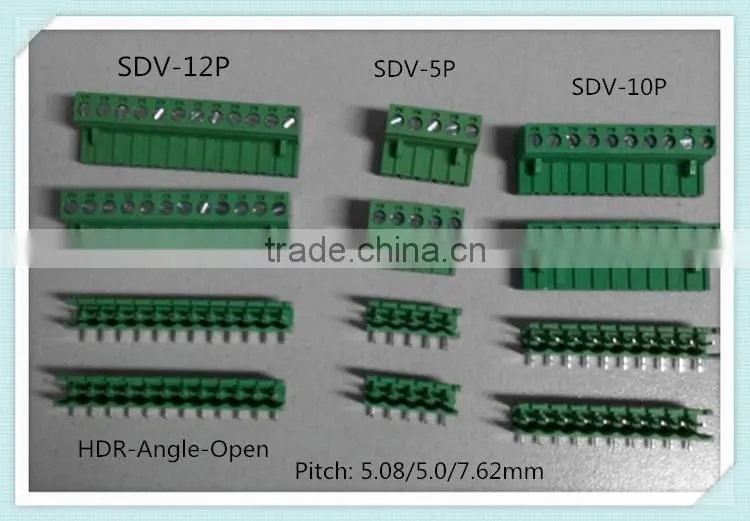

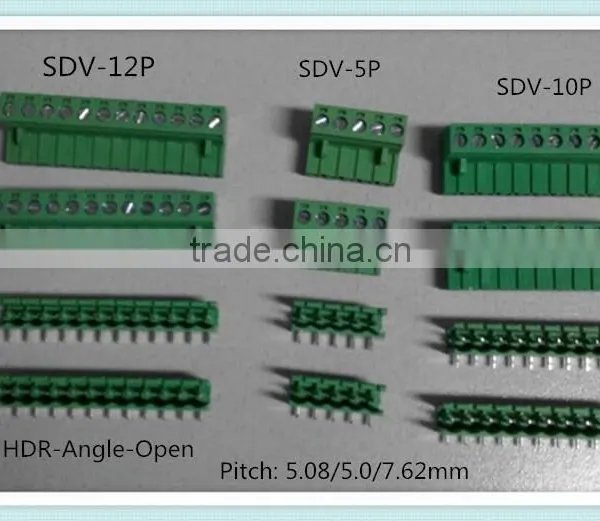

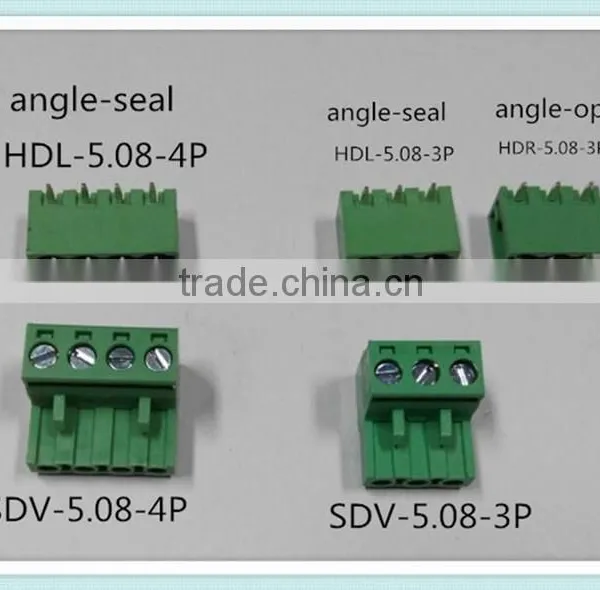

5.08mm 5.0mm Pitch, 300V 15A, Tin /Gold/ Silver Plated Brass Straight Pin, Wire Range:24-12AWG 2.5mm² 2-24P  , Green Plastic PA66, Seal Type Socket,   Ni Plated Steel Scew,  Model: XS2EHDF

5.08mm 5.0mm Pitch, 300V 15A, Tin /Gold/ Silver Plated Brass Angle Pin, Wire Range:24-12AWG 2.5mm² 2-24P  , Green Plastic PA66, Open Type Socket,   Ni Plated Steel Scew,  Model: XS2EHDR

5.08mm 5.0mm Pitch, 300V 15A, Tin /Gold/ Silver Plated Brass Pin, Wire Range:24-12AWG 2.5mm² 2-24P  Straight Pin Male Plug, Green Plastic PA66, Open Type Socket,   Ni Plated Steel Scew,  Model: XS2EHDV

  5.0mm 5.08mm 7.62mm Pitch, 300V 15A,Tin Plated Brass Pin, Wire Range:28-16AWG  2.5mm² 2-24P, Green Plastic PA66,  Ni Plated Steel Scew, Model: XS2ESDA

  5.0mm 5.08mm 7.62mm Pitch, 300V 15A,Tin Plated Brass Pin, Wire Range:24-12AWG  2.5mm² 2-24P, Green Plastic PA66,  Ni Plated Steel Scew, Model: XS2EHDB

5.0mm 5.08mm 7.62mm Pitch, 300V 15A,Tin Plated Brass Pin, Wire Range:24-12AWG  2.5mm² 2-24P, Green Plastic PA66,  Ni Plated Steel Scew, Model: XS2EHDC

5.0mm 5.08mm 7.62mm Pitch, 300V 15A,Tin Plated Brass Pin, Wire Range:24-12AWG  2.5mm² 2-24P, Green Plastic PA66,  Ni Plated Steel Scew, Model: XS2ESDV

   5.0mm 5.08mm 7.62mm Pitch, 300V 15A,Tin Plated Brass Pin, Wire Range:24-12AWG  2.5mm² 2-24P, Green Plastic PA66,  Ni Plated Steel Scew, Model: XS2ESDV
