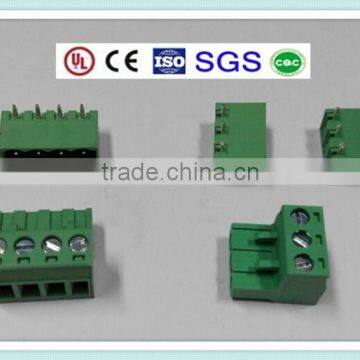

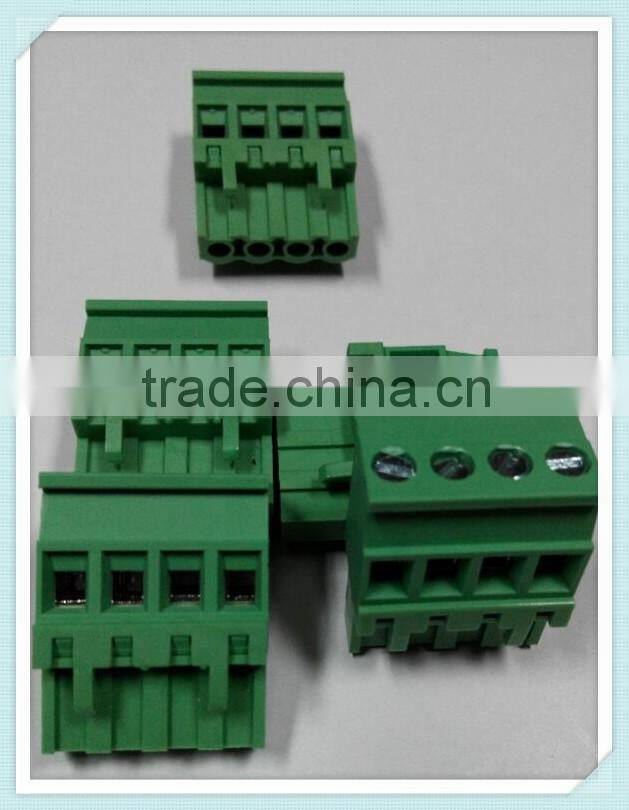

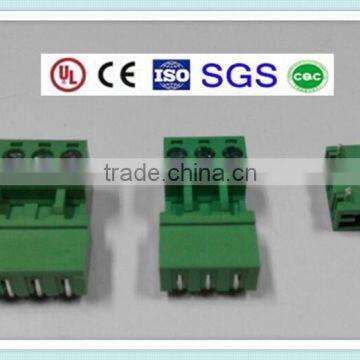

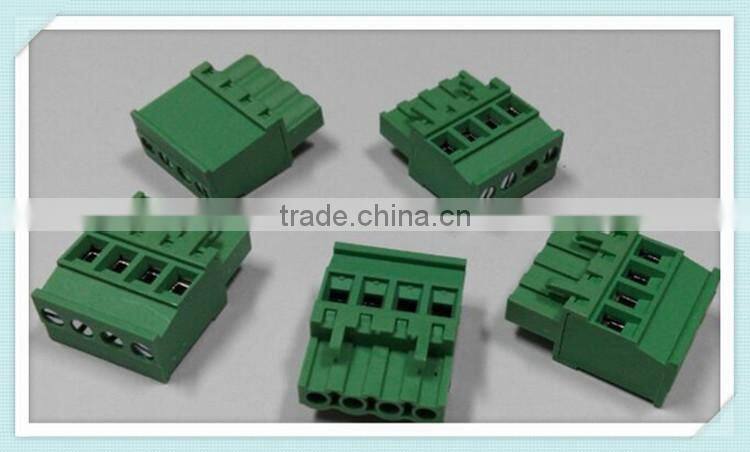

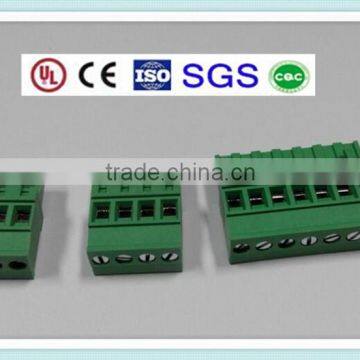

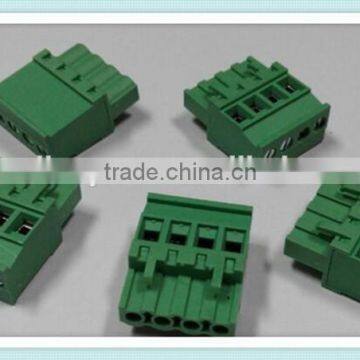

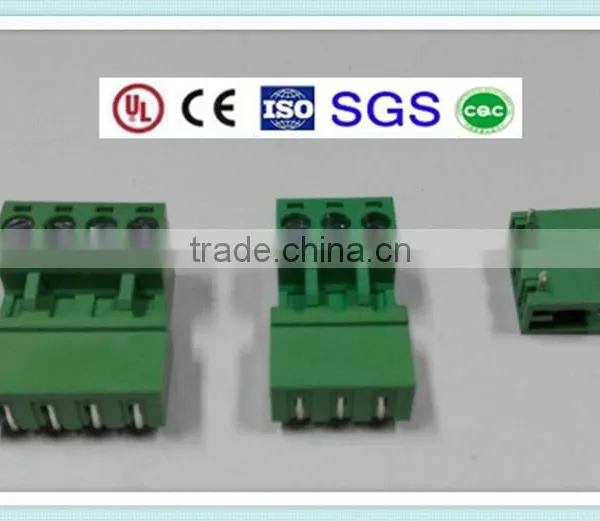

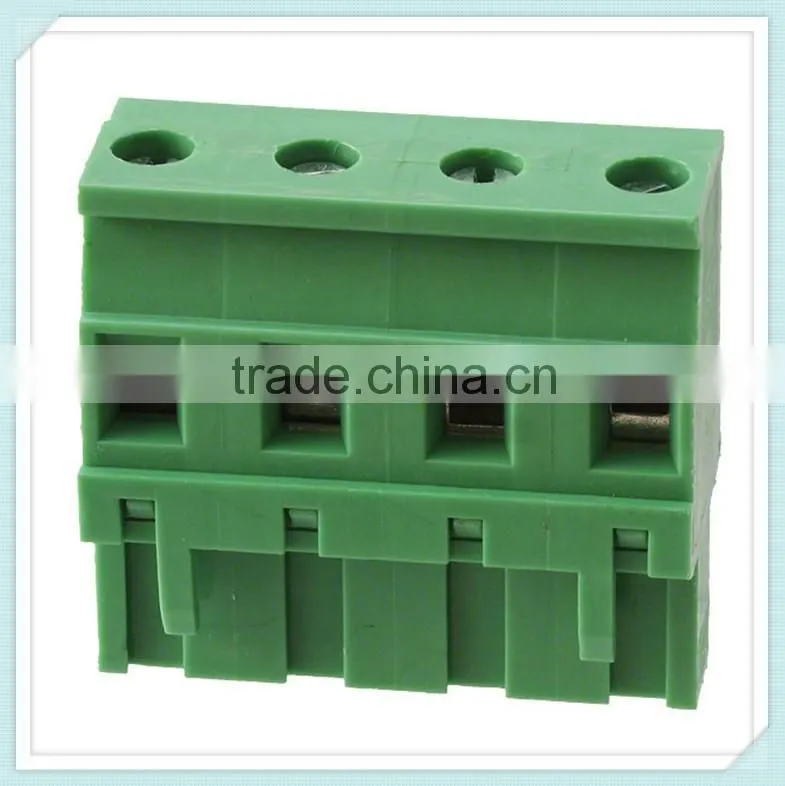

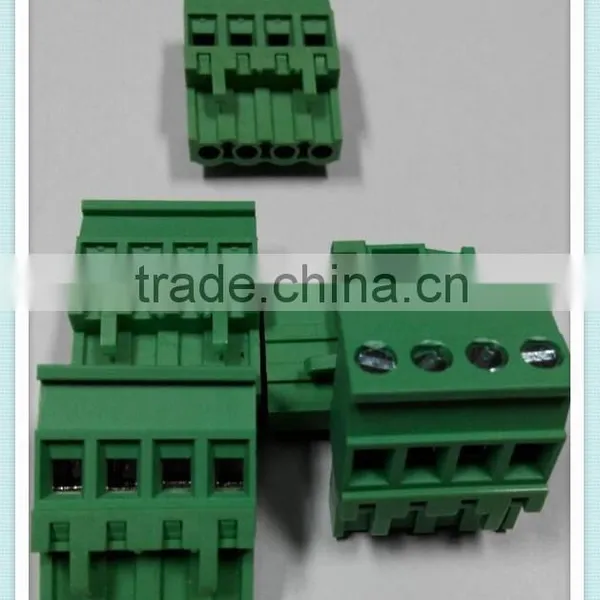

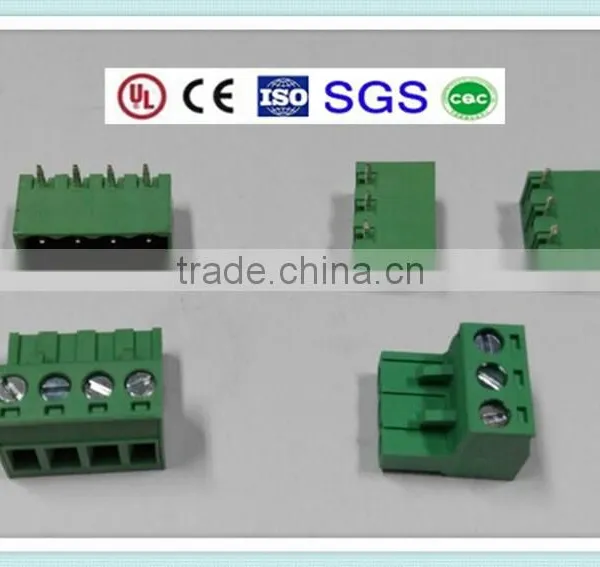

4-way Terminal Block XS2ESDT 300V 15A 5.0/5.08/7.62/3.81/3.5mm Pitch with UL, CE, ISO, SGS,CQC Approved

4-way Terminal Block  XS2ESDT 300V 15A 5.0/5.08/7.62/3.81/3.5mm Pitch

with UL, CE, ISO, SGS,CQC Approved

PCB Terminal Block XS2ESDT       ISO9001:2000   CE  CUL  CQC   SGS

Rated Voltage/Current: 300V 15A

Operation Temp.: -40°C~+105°C

Pitch:   5.0mm 5.08mm 7.62mm

Terminal Number:2-24P

Wire range:24-12AWG 2.5mm2

Insulation Housing: PA66. UL94V-0, Green

Screw: M2.5, Steel, Ni-Plated

Terminal Material: Brass, Tin-Plated

Fair

2011        ELECTRONICA       Japan

2012        ELECTRONICA       Germany

5.08mm 5.0mm Pitch, 300V 15A, Tin /Gold/ Silver Plated Brass Angle Pin, Wire Range:24-12AWG 2.5mm² 2-24P  , Green Plastic PA66, Seal Type Socket,   Ni Plated Steel Scew,  Model: XS2ESDT

5.08mm 5.0mm Pitch, 300V 15A, Tin /Gold/ Silver Plated Brass Straight Pin, Wire Range:24-12AWG 2.5mm² 2-24P  , Green Plastic PA66, Seal Type Socket,   Ni Plated Steel Scew,  Model: XS2ESDT

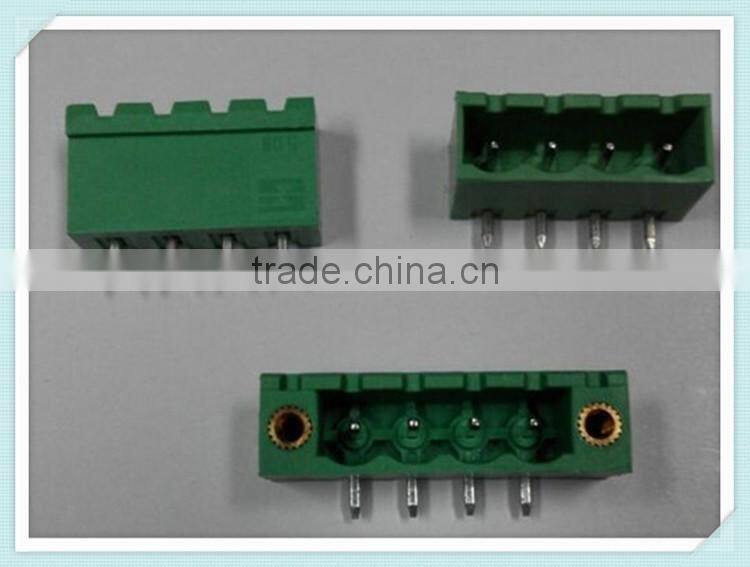

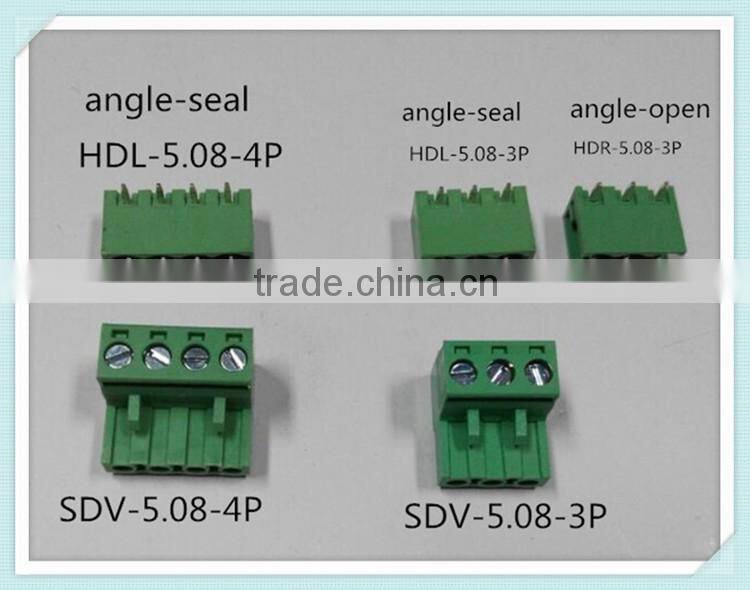

5.08mm 5.0mm Pitch, 300V 15A, Tin /Gold/ Silver Plated Brass Angle Pin, Wire Range:24-12AWG 2.5mm² 2-24P  , Green Plastic PA66, Open Type Socket,   Ni Plated Steel Scew,  Model: XS2EHDL  XS2EHDC with Flange

5.08mm 5.0mm Pitch, 300V 15A, Tin /Gold/ Silver Plated Brass Pin, Wire Range:24-12AWG 2.5mm² 2-24P  Straight Pin Male Plug, Green Plastic PA66, Open Type Socket,   Ni Plated Steel Scew,  Model: XS2ESDV

  5.0mm 5.08mm 7.62mm Pitch, 300V 15A,Tin Plated Brass Pin, Wire Range:28-16AWG  2.5mm² 2-24P, Green Plastic PA66,  Ni Plated Steel Scew, Model: XS2ESDA

  5.0mm 5.08mm 7.62mm Pitch, 300V 15A,Tin Plated Brass Pin, Wire Range:24-12AWG  2.5mm² 2-24P, Green Plastic PA66,  Ni Plated Steel Scew, Model: XS2EHDB

5.0mm 5.08mm 7.62mm Pitch, 300V 15A,Tin Plated Brass Pin, Wire Range:24-12AWG  2.5mm² 2-24P, Green Plastic PA66,  Ni Plated Steel Scew, Model: XS2ESDT

   5.0mm 5.08mm 7.62mm Pitch, 300V 15A,Tin Plated Brass Pin, Wire Range:24-12AWG  2.5mm² 2-24P, Green Plastic PA66,  Ni Plated Steel Scew, Model: XS2ESDV

Certificate

Company Information



Beijing Tiandi Nayuan Technology Co., Ltd. was established in 2003, is a professional manufacturer of terminal blocks. The company has passed the SGS, CQC, CE, UL, ISO9001: 2008 quality system certification for the purpose of "quality first, reputation first" committed "to meet customer demand" production and operation mode.
Over the years, in order to improve product quality, our company was established by the professional and technical personnel, research and development institutions, plastic mold, punching mold, metal processing, injection molding, assembly of finished products and a series of specialized production plant. At present, our products have been widely sold at home and abroad.
Meet the needs of our customers, we also established a sales company, available quantities, sufficient supply, range, price. In order to better customer service, I also undertake a variety of products customized business models.
We warmly welcome your visit, visit!







Dear Valued Clients, thank you for your interests to our products. For more details, pls feel free to contact us.
