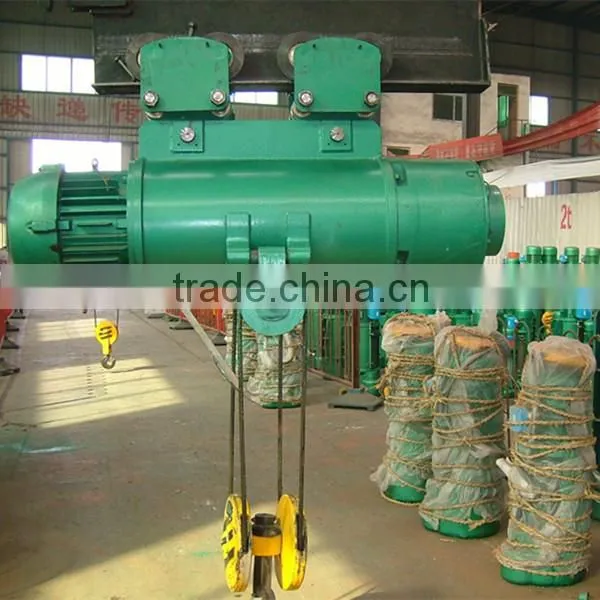

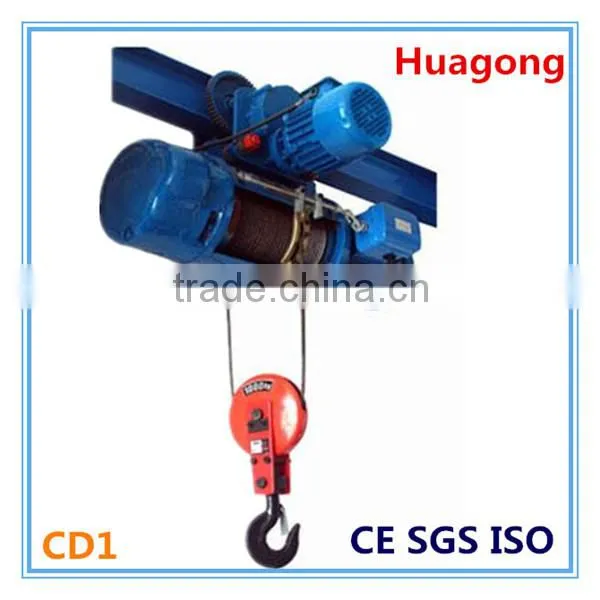

CD1 Electric wire rope hoist with motorized trolley
Product Features of CD1 Electric wire rope hoist with motorized trolley:
1. Model: Two types for your selection: CD Type: Four direction movement,Single speed(With electric trolley). MD Type: Four direction movement,Double speed(With electric trolley).
2. Weight Capacity: From 0.25t to 10t.
3. Lifting longth: From 6m to 30m (6m,9m,12m,18m,24m,30m).
4. Hook: Most tensile safety hook without break.
5. Motor: Compact and high efficient motor with heat protection device.
6. Push button: With 36v low voltage to guarantee safety.
Technical Parameters of CD1 Electric wire rope hoist with motorized trolley:
| Model | 0.25TON | 0.5TON | 1TON | 2TON | 3TON | 5TON | 10TON |
| Capacity ton | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 |
| Standard lift m | 3-9 | 6-12 | 6-30 | 6-30 | 6-30 | 6-30 | 6-30 |
| Lifting Height m/min | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 7(7/0.7) |
| Running Speed m/min | 20/30 | ||||||
| Wire Rope type | 6*19-3.6 | 6*37-4.8-180 | 6*37-7.4-180 | 6*37-11-155 | 6*37-13-170 | 6*37-15-200 | 6*37-15-200 |
| I beam track type | 16-22b | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-63c | 28a-63c |
| Loop track minimum Radius m | 0.8 | 1.5 | 1.5-4 | 2-4 | 2-4 | 2.5-5 | 3.5-9 |
| Voltage V | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Frequency HZ | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Phase | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
1. 100% QC inspection Before Shippment
2. Your professional questions will be answered by our Technical Team
3. Sample order is acceptable
4. Best after-service
5. OEM Provide
1.Are you Trading or Factory?
We are factory, with more than 15 year production history in hoisting line.
2.When Can I get the quotation?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
3.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. If you need the samples, you need pay the express fee, but it will be refundable after order confirmation when your products amount is more than USD10,000.
4.What information should I let you know if I want to get a quotation?
1. Lifting capacity.
2. Lifting height(hook center to ground).
3. Power supply: Voltage.
4. Span(rail center to rail center).
5. Working condition: which material to lift? temprature?
6. Would be better if you have drawings of your plant.
5.What about the lead time for mass production?
Honestly, it depends on the order quantity and specification and the season you place the order.
About 10-20days will be finished. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
6.What is your terms of delivery?
We accept EXW,FOB,CFR,CIF, etc. you can choose the one which is the most convenient or cost effective for you.
7.Which payment terms will you receive?
T/T, L/C, Western Union, etc.
8.How about your quality control before shipment?
All products will have been strictly quality checked and tested in house before packing.
All products will be well packed before shipping .
9.How long is the warranty?
The whole machine of all our products have 12 months warranty, and we sure the product will be free from maintenance within warranty period.
Low charge for continue maintenance when warranty is expired.
Qingyuan Huagong Hoisting Machinery Manufacture Factory is a manufacturer and trader enterprise specialized in the research, design, development and production of chain block, lever block, electric hoist, webbing sling, jack and trolley.
All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
If you are interested in any of our products or have any questions about our products, please feel free to contact us. We are looking forward to forming successful business relationships with you.
