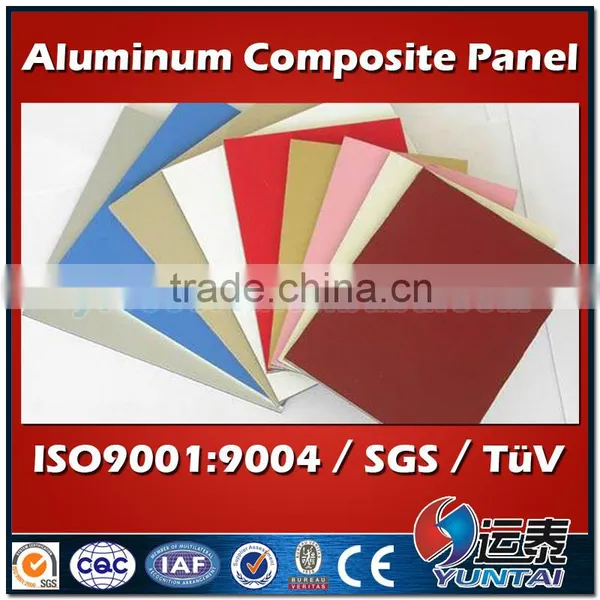

ACP Wall Panel
ACP Panel Specifications and Sizes
template | ||||
| 1, Coating Option : PE,PVDF,FEVE and others. | ||||
| 2, Aluminum Option : 1100, 3003, 3005, 5005, 5052. | ||||
| 3, Standard Size : 1220*2440 mm, 1500*4000 mm. Special size is available to meet customers' request. | ||||
| 4, Total Thickness : 2mm, 3mm, 4mm, 5mm, 6mm. According to customers' need. | ||||
| 5, Skin Thickness : 0.05-0.5 mm. | ||||
| 6, Coating Thickness : >25UM (kynar, FEVE) >18um(PE), None for other metals | ||||
| 7, Certificates : ISO,SGS,BV,CE,CQC,IAF | ||||
| 8, Warranty : 20 years(PVDF) 12 years(PE) | ||||
| 9, Core Option : PE and FR core. | ||||
| 10, Color : Have all major colors. Ral and Pantone colors are acceptable. |
Besides of above general core options, there are also other core options for different needs.

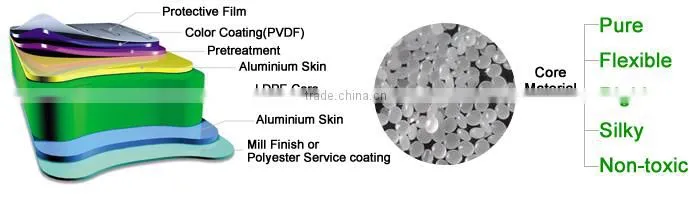

We use pure, flexible, rigid and silky core material to support the top and back metals. Quality LDPE and FR material are our major choice. 100% LDPE Non-toxic, Rigid and Flexible. FR core (EN13501-1 certified) is another option.
In order to produce and offer excellent quality aluminum compostie panel to our customers, we perticularly set up a specialist team to run all tests needed and to control quality in every single process of production. ISO 9001 is our basic principle to rule and run our factory.
PHYSICAL PROPERTIES
| Properties | 2 mm | 3 mm | 4 mm | 6 mm |
| Aluminum thickness, in (mm) | 0.010 (0.25) | 0.010 (0.25) | 0.020 (0.5) | 0.020 (0.5) |
| Weight, psf (kg/m2) | 0.59 (2.9) | 0.80 (3.9) | 1.12 (5.5) | 1.50 (7.32) |
| Coefficient of expansion, ASTM D696, in/in/°F | 13 × 10^-6 | 13 × 10^-6 | 13 × 10^-6 | 13 × 10^-6 |
| Tensile strength, ASTM E8, psi (MPa) | - | - | 6913 (48) | 4978 (35) |
| Yield strength, ASTM E8, psi (MPa) | - | - | 6429 (44) | 4466 (30) |
| Elongation | - | - | 13.50% | 17.50% |
| Thermal conductance, ASTM C976, Btu/(ft2 × h × °F) (W/(m2 × K)) | - | - | 10.75 (18) | 8.53 (14) |
| Minimum Drum peel, ASTM D1781, in-lb/in(N-mm/mm) | - | - | 22.5 (100) | 22.5 (100) |
| Thermal resistance, ft2 × h × °F/Btu (m2 × K/W) | - | - | 0.09 (0.016) | 0.12 (0.021) |
| Sound transmission coefficient, ASTM E413 | - | - | 26 | 26 |
FIRE PERFORMANCE PROPERTIES
| Properties | 4 mm | 6 mm | ||
| Surface burning characteristics, ASTM E84 | ||||
| Smoke developed index | 450 maximum | 450 maximum | ||
| Flamespread index | 25 maximum | 25 maximum | ||
| Vertical transmission, ASTM E108 (modified) | Passed | Passed | ||
| Ignition temperature, ASTM D1929 | ||||
| Flash ignition | 716° F (380° C) | - | ||
| Self-ignition | 752° F (400° C) | - | ||
| Rate of burning, ASTM D635 | CCI | - | ||
We keep improving ourselves. All certificates we've got are proofs of our product quality. Even without these certificates, our products can speak for themselves!

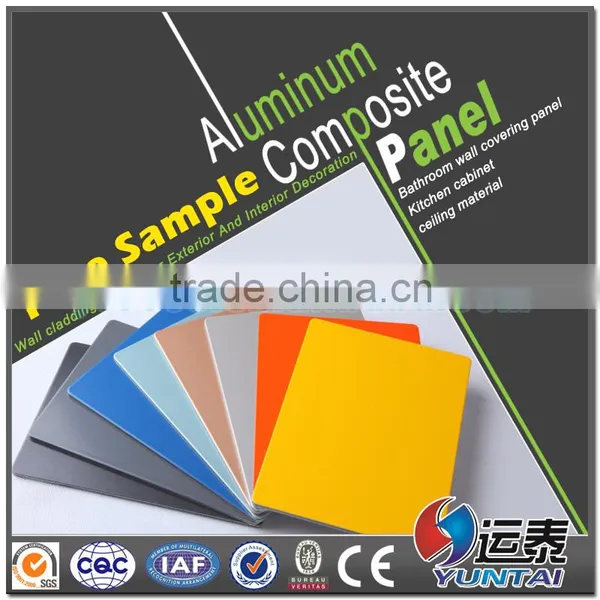

Colors remain bright and vivid after long time duration even under server weathering condition. You can also send us samples or provide RAL/Pantone color numbers so we can make exact colors that meet your need.
Our prodcuts have been applied to different kinds of decorations all over the world. Exterior decoration,interior decoration,signs,airports,etc. Take the airport here in JieYang for example, every single piece of Aluminium Composite Panel(ACP) you can see there was all made in our factory!

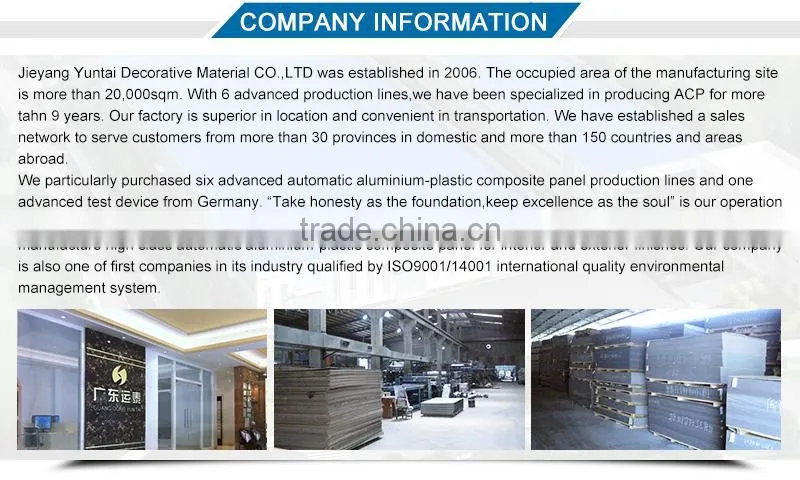

YunTai Decorative Material Co.,Ltd is one of few manufacturers in China imported high-technology aluminum composite panel production lines from Germany. With these production lines and our experienced technicists, we are able to produce perfect quality ACP 7,000 sheets per day!
Below is general info of our factory.
Product : Aluminum-plastic Composite Panel
Production lines : 6 imported production lines
Employees : 120
Certivicates : ISO9001/14001 / CE / CQC / IAF / SGS / TUV
Thrid party audit : Bureau Veritas
You are more than welcome to visit us. We deeply believe that you will be very satisfied and impressed with our modern factory, advanced production lines, huge production capacity, quality products, professional management and service. If you are looking for an aluminum composite panel manufacturer who provides excellent quality products and very competitive prices, well, you just found one.
We have been in this business for almost one decade. Every process is under well control. Tell us what you need, we will take good care of the rest.
With quality guarantee and competitive price, our products have been exported to many countries and areas such as USA, Australia, Russia, Saudi Arabia, Indonesia, Mexico, Panama, South Africa, etc. And, we have helped some of our customers, who are now our agents in their local areas, to extend business in their markets. If you are interested, contact us for further cooperation details.
