Aluminum Sandwich Panel
Aluminum Sandwich Panel
Commodity |
Aluminum Sandwich Panel |
||
Surface |
PE/PVDF Coating |
||
Size |
General Size |
Tolerance |
|
Thickness(mm) |
1-6mm |
± 0.04 |
|
Skin Thickness(mm) |
0.05-0.5mm |
± 0.01 |
|
Width(mm) |
1220-2000mm |
± 2 |
|
Length(mm) |
800mm-10000mm |
± 3 |
|

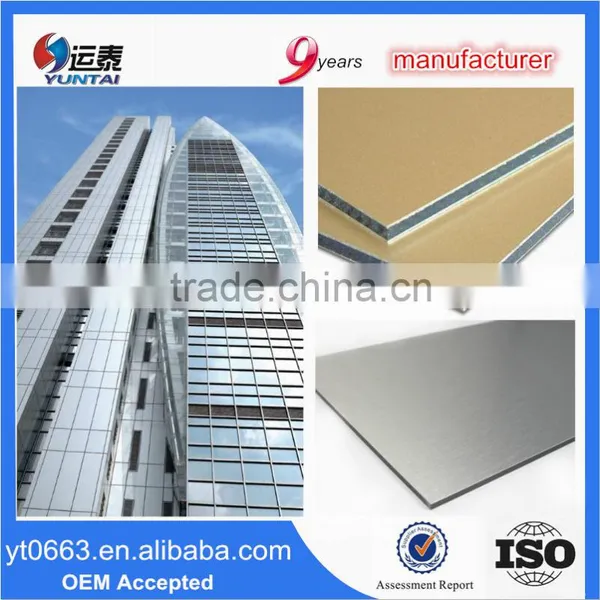

Size can be customized according to the designs of curtain walls.
100% quality manufacturing. All productions are quality certified. We guarantee that our products meet your supplied specifications Partial container orders.

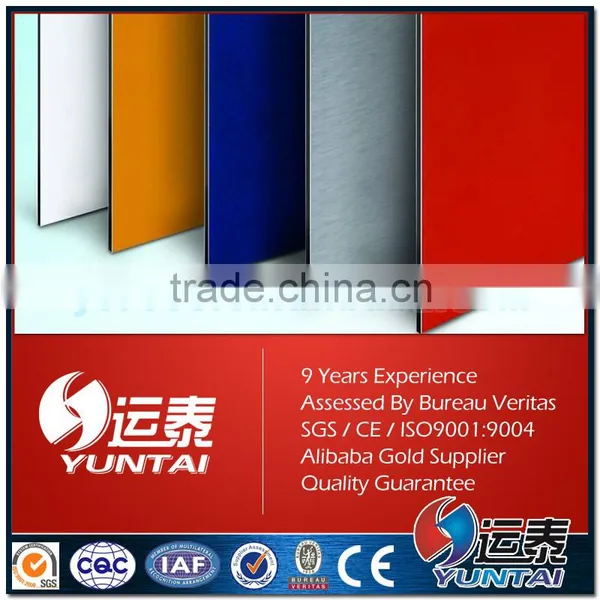

Pantone/RAL colors are all acceptable. You can also send us your samples so we can make the exact colors you want!
We keep improving ourselves. All certificates we've got are proofs of our product quality. Even without these certificates, our products can speak for themselves!
In order to produce and offer excellent quality aluminum compostie panel to our customers, we perticularly set up a specialist team to run all tests needed and to control quality in every single process of production. ISO 9001 is our basic principle to rule and run our factory.
PHYSICAL PROPERTIES
| Properties | 2 mm | 3 mm | 4 mm | 6 mm |
| Aluminum thickness, in (mm) | 0.010 (0.25) | 0.010 (0.25) | 0.020 (0.5) | 0.020 (0.5) |
| Weight, psf (kg/m2) | 0.59 (2.9) | 0.80 (3.9) | 1.12 (5.5) | 1.50 (7.32) |
| Coefficient of expansion, ASTM D696, in/in/°F | 13 × 10^-6 | 13 × 10^-6 | 13 × 10^-6 | 13 × 10^-6 |
| Tensile strength, ASTM E8, psi (MPa) | - | - | 6913 (48) | 4978 (35) |
| Yield strength, ASTM E8, psi (MPa) | - | - | 6429 (44) | 4466 (30) |
| Elongation | - | - | 13.50% | 17.50% |
| Thermal conductance, ASTM C976, Btu/(ft2 × h × °F) (W/(m2 × K)) | - | - | 10.75 (18) | 8.53 (14) |
| Minimum Drum peel, ASTM D1781, in-lb/in(N-mm/mm) | - | - | 22.5 (100) | 22.5 (100) |
| Thermal resistance, ft2 × h × °F/Btu (m2 × K/W) | - | - | 0.09 (0.016) | 0.12 (0.021) |
| Sound transmission coefficient, ASTM E413 | - | - | 26 | 26 |
FIRE PERFORMANCE PROPERTIES
| Properties | 4 mm | 6 mm | ||
| Surface burning characteristics, ASTM E84 | ||||
| Smoke developed index | 450 maximum | 450 maximum | ||
| Flamespread index | 25 maximum | 25 maximum | ||
| Vertical transmission, ASTM E108 (modified) | Passed | Passed | ||
| Ignition temperature, ASTM D1929 | ||||
| Flash ignition | 716° F (380° C) | - | ||
| Self-ignition | 752° F (400° C) | - | ||
| Rate of burning, ASTM D635 | CCI | - | ||
You are more than welcome you to visit our factory in Jieyang. We deeply believe that you will be very satisfied and impressed with our modern factory, advanced production lines, huge production capacity, quality products, professional management and service. If you are looking for an aluminum composite panel manufacturer who provides excellent quality products and very competitive prices, well, you just found one.
With quality guarantee and competitive price, our products have been exported to many countries and areas such as USA, Australia, Russia, Saudi Arabia, Indonesia, Mexico, Panama, South Africa, etc. And, we have helped some of our customers, who are now our agents in their local areas, to extend business in their markets. If you are interested, contact us for further cooperation details.
