Help CenterTWH 16 Scroll Forming Machine
Related Products
Specifications

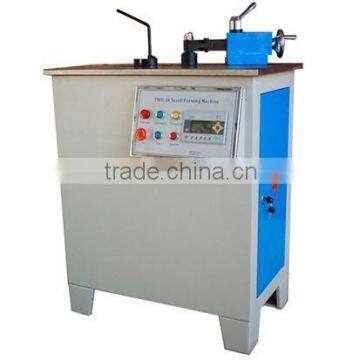

Scroll forming wrought iron machine(TWH-16)Professional wrought iron machine manufacturer
CE Certification,High Quality
TWH-16 and TWH-20 Scroll forming wrought iron machine can scroll some raw materials such as flat steel, square steel and round steel, etc. into C, P and S wrought iron flower designs of different specifications. These two machines can be used in batch processing through automatic program as well as lofting processing through manual program; moreover, they have not only simple operation but also high performance. The TWH-20 is a new type reinforced equipment with processing capacity larger than TWH-16. TWH-16B and TWH-20B are the new type equipment which are controlled by microcomputer and operate with high accuracy, large batch processing and automatic reckon by the piece, therefore are the ideal equipment indispensable to specialized batch production.
Items |
Model TWH-16 Processing Capacities |
Model TWH-20 Processing Capacities |
|
Max Sizes of the Stocks to be processed |
Round Steel |
≤Φ16 mm |
≤Φ20 mm |
Flat Steel |
≤40×8 mm |
≤40×8 mm |
|
Square Steel |
≤16×16 mm |
≤20×20 mm |
|
Motor |
Power |
1.1 KW |
1.5 KW |
Electricity |
380 V 50 HZ |
380 V 50 HZ |
|
Rotating Speed |
910 rpm |
910 rpm |
|
External Size (L×W×H)mm |
810×580×1140 mm |
1200×700×1380 mm |
|
Packing Size (L×W×H)mm |
920×680×1340 mm |
1300×890×1400 mm |
|
Net /Gross Weightkg |
270/ 330 kg |
400/ 510 kg |
|
