Specifications
1.the machine can twist the metallic materials into screw thread pattern and basket.2. High qulity
3.Low price

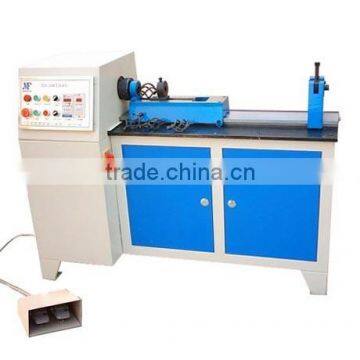

Model TNQ-20 or TNQ-25 Wrought Iron Twisting Machine can twist the square steel, flat steel, etc. metallic materials into screw thread pattern, and meanwhile guarantee the high efficiency batch production and the standardization of twisted product. Such machine can also be equipped with the lantern auxiliary unit manufactured by our factory to twist basket, it is simple in installation, saving labor, and easy to operate; such machine can also be equipped with the fishtail auxiliary unit manufactured by our factory to coin fishtail pattern as well. The TNQ-25 is a new type reinforced equipment with processing capacity larger than the TNQ-20.
Items |
Model TNQ-20 Processing Capacities |
Model TNQ-25 Processing Capacities |
|
Max Sizes of the Stocks to be processedmm |
Flat Steel |
≤40×8 mm |
≤40×8 mm |
Square Steel |
≤20×20 mm |
≤25×25 mm |
|
|
Cycloidal pin-wheel Decelerator |
Power |
1.1 KW |
1.5 KW |
Rotating Speed |
910 (r/min) |
910 (r/min) |
|
Electricity |
380 V 50 HZ |
||
External Size (L×W×H)mm |
1400×570×970 mm |
1600×600×1100 mm |
|
Packing Size (L×W×H)mm |
1510×650×1330 mm |
1680×680×1220 mm |
|
Net /Gross Weightkg |
330/ 420 kg |
380/ 460 kg |
|
