RS232 90mm Magnetic Card Readers for GPS Car Tracker with Setting Program

Make the best product!

To bring customer the best satisfaction is our principle!

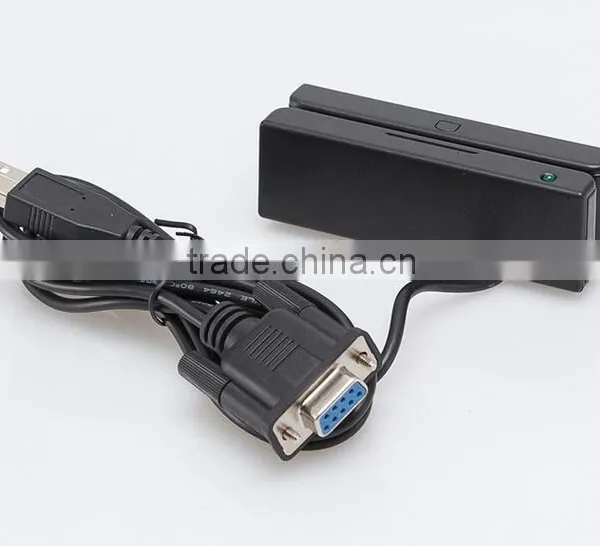

RS232 90mm Magnetic Card Readers for GPS Car Tracker with Setting Program

RS232 90mm Magnetic Card Readers

Feature

Bi-directional read

F2F (FM) hardware decode

use import chip, Fast reading speed, environmental-friendly materials.

Card standard: magstripe card ISO 7810/7811/7812/7813, 1-2-3 tracks

Read ABA/ANSI/ISO/AAMVA standard cards plus some customized formats

Work on windows, linux, mac, android operation system.

With setting program. Programmable.

Dimensions

90mm(L)*27mm(W)*28mm(H)

Color: Black, White, Customized

Application

·POS terminal ·ID verification  . GPS Tracker

·Banking system ·Time and attendance terminals

·Etc

Specification

Card standard: magstripe card ISO 7810/7811/7812/7813, 1-2-3 tracks

Read ABA/ANSI/ISO/AAMVA standard cards plus some customized formats

Decoding Method: F2F (FM)

Bi-direction reading capacity

Power supply: DC2.7V~DC5.5V

Lifetime of Magnetic Head: >1,000,000 card passes (1 pass: one swipe)

Read magnetic stripe from 300oe up to 4000 oe low co to high Co.

Magnetic head use platinum and manganese alloy material. high quality.

Compatible with windows, linux and mac OS terminals.

Materials: eco, RoHS certified

Output: RS232, USB, PS/2, TTL, TTL232 selectable

Reading Density: 210BPI, 75BPI, 210BPI

Character: Track 1: 79 characters (7-bit); Track 2: 40 characters (5-bit); Track 3: 107 characters (5-bit).

Power current: below 2.0mA( single road) below 5mA(double roads) below 7mA( three magnetic road)

Static Current: 4mA/5V

Output Ripple: Less than 50mVp-p.

Head function reading magnetic road width 1.5mm

Reading Speed: 15-120 cm/sec (6-50inch/sec)

Error rate < 0.5%

Insulation: 10m O

Core earth 500V, 10M or more (between floor and object)

Operation Locus Indoors only

Weight: Approx.190g

Working Temperature: 0-50 degrees 20- 90% RH

Store Temperature: -30 to 70degrees. less than 95% RH

Vibration: Amplitude 2mm, 2G, 10-55Hz/min in x, y, z direction.

Shock resistance: Up to 30G, 11 m/ sec.

RS232 90mm Magnetic Card Readers for GPS Car Tracker with Setting Program

FAQ

- Question: What is the Minimum Order Quantity(MOQ)?    document camera

 Answer: we have no restriction, but generally our wholesale price is for 500pcs to start.

magnetic card readers

- Question: May I buy samples from you?    visual presenter

  Answer: Yes, samples available. Sample is free, while customer need support the shipping fee.

magnetic card readers

- Question: How will you deliver my goods to me?    visual presenter

 Answer: It depends on our customer. By express, air or sea freight either is ok. Delivery time by express is 3-5 days, by sea freight is 20-30 days.   document camera

magnetic card readers

- Question: What is your product quality?     visual presenter

Answer: Our raw materials are purchased from qualified suppliers. The crafts and electronic components are all great. We have excellent software support,too.   document camera

RS232 90mm  magnetic card readers

- Question: What is your waranty?    visual presenter

Answer: Our warranty is 12month after receiving goods.

RS232 90mm magnetic card readers
