Home > Products > Gasoline Water Pump > 168f gasoline engine low pressure china electric water pump
168f gasoline engine low pressure china electric water pump
- 5000 Piece / Pieces per Month
- Ning bo / Shang hai
- T/T
You May Like
-
168f gasoline engine gas water pump
-
low price 168f engine 6.5hp water pump
-
low price 168f engine entrifugal portable fire fighting pump
-
china factory price168f engine entrifugal petrol pumps
-
3 inch 6.5hp engine centrifugal agricultural petrol pumps
-
3 inch 6.5hp water pump gasoline engine centrifugal agricultural pumps
Product Details
Place of Origin | Zhejiang, China | Brand Name | AODISEN | |
Model Number | WP20 | Theory | Centrifugal Pump | |
Structure | Single-stage Pump | Usage | Water | |
Power | Other, hose power | Standard or Nonstandard | Standard | |
Fuel | Gasoline | Pressure | Low Pressure | |
Application | Sewage |
Product Description
168f gasoline engine low pressure china electric water pump
Item No: WP20
1:muffler with low noise
2:recoil start
3:suction range 8m, lifting 25m
With self-made reliable gasoline engine and strict testing from spare parts to whole sets, AODISEN have superior durability with high perforance-price ratio, it is number one for your choice of centrifugal pump.
Characteristic
muffler with low noise
crank shaft options : cast iron / forged steel
high quality carburetor, crankcase and shining pump body
galvanized shining screw, A++ grade pistion
strong carton packing, inside lined with foam
Technical Data & Parameter for
low pressure china electric water pump :
Model | GP50 | GP80 | GP100 |
Suction and Discharge Bore Dia. | 50mm / 2" | 80mm / 3" | 100mm / 4" |
Max. Lift | 25M | 28M | 28M |
Max. Suction Lift | 8M | 8M | 8M |
Max. Flow | 30m³/h | 55m³/h | 65m³/h |
Equipped Gasoline Engine Model | ADS160 (5.5hp) | ADS200 (6.5hp) | ADS390 (13hp) |
Equipped Gasoline Engine Type | 25° Inlcined Single Cylinder, 4 stroke, OHV, Horizontal Shaft, Forced Air-Cooling | 25° Inlcined Single Cylinder, 4 stroke, OHV, Horizontal Shaft, Forced Air-Cooling | 25° Inlcined Single Cylinder, 4 stroke, OHV, Horizontal Shaft, Forced Air-Cooling |
Fuel Tank Capacity | 3.6L | 3.6L | 6.5L |
Starting Mode | recoil | recoil | recoil |
Fuel Consumption rate | 395 g/kw.h | 395 g/kw.h | 395 g/kw.h |
Operating Noise Level | 74db | 74db | 74db |
Dimension | 483mm×383mm×405mm | 510mmx370mmx430mm | 640mm×465mm×515mm |
N.W./G.W. | 22kgs / 23kgs | 23kgs / 24kgs | 46kgs / 48kgs |

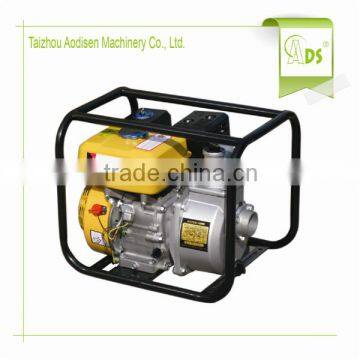

Real Shot For low pressure china electric water pump :
2 Inch Honda Style
Taizhou Aodisen Machinery Co.,Ltd is a professional manufacturer and exporter of kinds of gasoline engine, diesel engines, gasoline generator, diesel generator, natural gas generator, gasoline water pumps, gasoline engine.
With high quality products, excellent services and a good reputation, we have won great support from customers around the world. Thus, our company scale has expanded.
We also offer all kinds of OEM / ODM services. Now our market covers Eastern Europe, South America, Middle East and Africa. We had established long-term, stable and good business relationships with many manufacturers and wholesalers around the world.
We are looking forward to even greater cooperation with overseas customers based on mutual benefits. Sincerely welcome to visit our factory.
Production Line
Testing
Sample Room
Our Factory
Our Workshop
Meeting With Our Customers
Aodisen offer 18moths after-sales service, If the problem is caused by our technology, we will be responsible for that, even we can send the replacement to your or send our engineer to your country if it is serious. If need and your quantity is large enough, we can send engineer to your country to help you with installment or teach you some maintenance knowledge and how to solve some problem that you frequently meet. For the parts, they will be sent out during 5days at most after receiving your request, OEM is available.
Q1: Are You Manufacturer or Trade Company ?
A: We are Manufacturer
Q1: What is Your MOQ ?
A: Engines: 100sets; Generator: 50sets; Water Pump: 100sets ;
Q2. What Is Your Price Terms?
A: EXW, FOB, CNF and CIF are available.
Q3. What Is Your Payment Terms?
A: T/T, L/C, Weston Union
Q4. What Is Your Delivery Time?
A: Usually 20 Working Days After Receiving Deposit
Q5. What Warranty Could You Provide?
A: Half and One Year Warranty for Free Spare Parts. And We Could Send Engineer To Your Side.
