Home > Products > Quartz Products > High Quality Clear Quartz Glass Round Rod

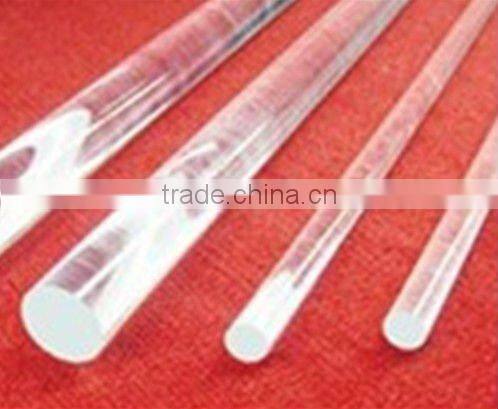

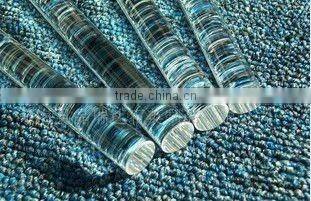

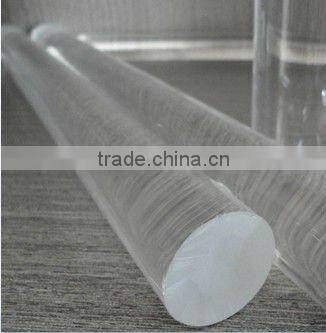

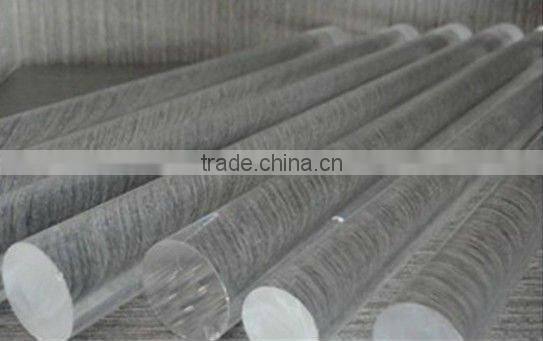

High Quality Clear Quartz Glass Round Rod
- 20 Ton / Tons per Month
- Shanghai seaport
- T/T
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | QUANSHENG | Model Number: | QS0284-QR |
Application: | used as optical process | Outside Diameter: | 2-70mm and alterable | Silicon Dioxide Component: | 99.99% |
Transmittance: | more than 90% |
Product Description
Specifications
OD range 2mm-70mm,Silicon Dioxide >99.95%,
Excellent visual and chemical performance ,high thermo-stability, anticorrosive.
Use for the material of the bridging rod for single end halogen lamps, fiber optical lighting, wafer and push rods in semi.
This clear quartz rod had high purity, high temperature low thermal expansion coefficient
Use for the material of the bridging rod for single end halogen lamps, fiber optical lighting,
wafer and push rods in semiconductor industry
Description :
1.High temperature resistant
2.Good corrosion resistant
3. Good light transmittance
4.Lower price
5.Purity: SiO2 content is more than 99.9%, transparent quartz rod can reaches above 99.95%
6. Temperature : softening point temperature is about 1730 degrees Celsius ,1100 degrees
Celsius in a long time used ,short-time maximum use temperature is up to 1450 degrees Celsius ;
7. Anticorrosion : Quartz glass is acidic materials, except hydrofluoric acid and 300 degrees
Celsius thermal phosphoric acid, on any other acids were shown to be inert, is the best anti acid
materials. At room temperature, alkali and salt on quartz glass corrosion degree is minimal
8. Transmittance good performance : Compare to ordinary silicate glass, transparent quartz
glass in the whole wavelength head excellent permeability. In the infrared spectrum through
than ordinary glass; in the visible region, quartz glass transmittance is relatively high ,above 90%.
In the UV spectral region especially in the ultraviolet region, the spectral transmission is much
better than other glass,about 80%.
9. Good electrical insulation properties : Quartz glass with high dielectric strength and very low
electrical conductivity, even in high temperature, high pressure and high frequency,it can still
maintain high dielectric strength and resistance, in the application of the band almost no dielectric
loss, therefore the quartz glass is an excellent high temperature dielectric insulating material.
10.Thermal stability :The thermal expansion coefficient of quartz galss is extremely small ,it can
be able to adapt drastic temperature changes .
