Home > Products > Gasoline Generator > portable single cylinder 4 stroke manual electric generator
portable single cylinder 4 stroke manual electric generator
- 5000 Piece / Pieces per Month
- Ning bo / Shang hai
- T/T Credit Card PayPal
You May Like
-
single cylinder 4 stroke portable manual generator
-
household portable manual generator gasoline
-
WP30 stable power self-priming irrigation water pump
-
High quality gasoline water pump wp20 with 5.5HP engine
-
3 inch 6.5hp 168f gasoline engine water pump with 4 stroke
-
Agricultural Using water pump gasoline pump with high quality
Product Details
| Place of Origin | Zhejiang, China | Brand Name | AODISEN | |
| Model Number | ADS950 ADS1200 ADS2000 ADS2500 ADS3600 ADS4500 ADS5500 ADS6500 ADS8000 | Output Type | Other, single phase or single phase + 3 phase | |
| Speed | 3600rpm | Frequency | 50 / 60HZ | |
| Rated Power | 0.65 / 0.8 / 1.5 / 1.8 / 2 / 2.5 / 3 / 4 / 5 / 6kw | Rated Voltage | 110V/220V/230V/240V/380V | |
| Rated Current | 3.7A-28.5A |
Product Description

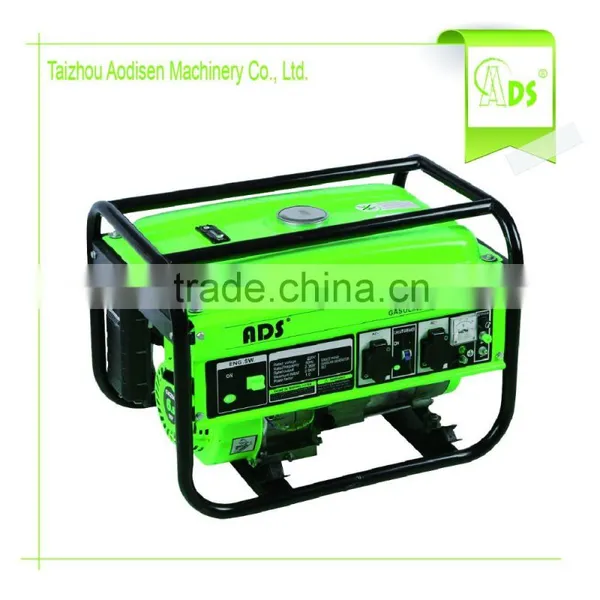

portable single cylinder 4 stroke manual electric generator
Item no: ADS950 ADS1200 ADS2000 ADS2500 ADS3600 ADS4500 ADS5500 ADS6500 ADS8000
1: New type voltage meter & current meter with double protection panel
2: Light weight, compact structure, portable and easy to operate
3: Economical, low fuel consumption rate to ensure 8 hours running without refueling
4: Overload protection for safe running
5: Easy maintenance, suitable for camping, lighting and small hand tools
Technical Data & Parameter For
portable single cylinder 4 stroke manual electric generator
| Model | ADS950 | ADS1200 | ADS1800 | ADS2000 | ADS2500 | ADS3600 | ADS4500 | ADS5500 | ADS6500 | ADS8000 |
| Description | Household Low RPM Small Generator Set | |||||||||
| Rated A.C. Power Output | 0.65kw | 0.8kw | 1.5kw | 1.8kw | 2.0kw | 2.5kw | 3.0kw | 4.0kw | 5.0kw | 6.0kw |
| Max. A.C. Power Output | 0.8kw | 1.0kw | 1.8kw | 2.0kw | 2.2kw | 2.8kw | 3.5kw | 4.5kw | 5.5kw | 6.5kw |
| A.C.Frequency Output Options | 50/60 Hz | |||||||||
| A.C. Phase Options | Single Phase | Single Phase | Single Phase or Three Phase + Single Phase | |||||||
| Rated A.C. Voltage Output Options | 110 / 120V / 220V / 230V / 240 V | 110 / 120V / 220V / 230V / 240 V | 110V / 120V / 220V / 230V / 240 V / 110V+220V / 230V+400V / 240V+415V | |||||||
| D.C. Output | 12V 8.3A | |||||||||
| Matched Gasoline Engine Model | 1E45F (2hp) | 1E54F (2.8hp) | ADS160 (5.5hp) | ADS160 (5.5hp) | ADS200 (6.5hp) | ADS210 (7hp) | ADS210 (7hp) | ADS390 (13hp) | ADS390 (13hp) | ADS420 (15hp) |
| Matched Gasoline Engine Type | Single Cylinder, 2 Strokes, Forced Air Cooling | Single Cylinder, 4 Stroke, Side Valve, Forced Air Cooling, Horizontal Crank Shaft | Single Cylinder, 4 Stroke, Forced Air Cooling, OHV, Horizontal Crank Shaft | |||||||
| Ignition Mode | Condenser Diode Ignition | Condenser Diode Ignition | Non-Contact Transistor Ignition | |||||||
| Starting Mode Options | Recoil | Recoil | Recoil / Electric | |||||||
| Displacement | 0.063L | 0.087L | 0.163L | 0.163L | 0.196L | 0.21L | 0.21L | 0.389L | 0.389L | 0.42L |
| Fuel Tank Capacity | 4L | 6L | 15L | 15L | 15L | 15L | 25L | 25L | 25L | 25L |
| Engine Oil Capacity | 0.37L | 0.37L | 0.65L | 0.65L | 0.65L | 0.65L | 1.1L | 1.1L | 1.1L | 1.1L |
| Continuous Operating Time | 6 hours | 6 hours | 13 hours | 13 hours | 13 hours | 12 hours | 12 hours | 10hours | 10hours | 10hours |
| Min. Fuel Oil Consumption Rate | 225g / kw.h | 276g / kw.h | 360g / kw.h | 360g / kw.h | 360g / kw.h | 360g / kw.h | 360g / kw.h | 360g / kw.h | 313g / kw.h | 313g / kw.h |
| Operating noise level | 45db | 60db | 65db | 65db | 65db | 67db | 67db | 69db | 74db | 74db |
| Dimension | 380mm×330mm×330mm | 460mm×370mm×390mm | 600mm×450mm×470mm | 600mm×450mm×470mm | 600mm×450mm×470mm | 600mm×450mm×470mm | 600mm×450mm×470mm | 700mm×525mm×580mm | 700mm×525mm×580mm | 700mm×525mm×580mm |
| N.W./G.W. | 19.5kgs / 20.5kgs | 21kgs / 22kgs | 40kgs / 41kgs | 40kgs / 41kgs | 41kgs / 42kgs | 42kgs / 43kgs | 42.5kgs / 43.5kgs | |||

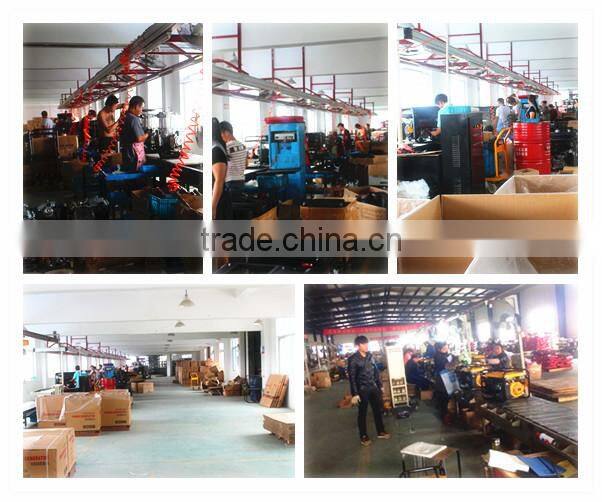

Production Line

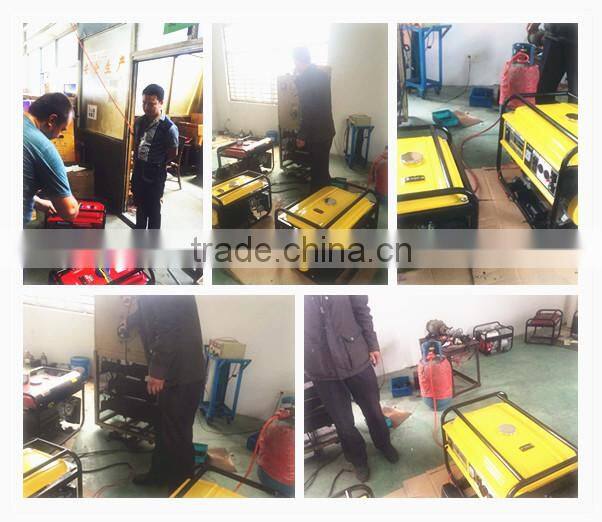

Testing

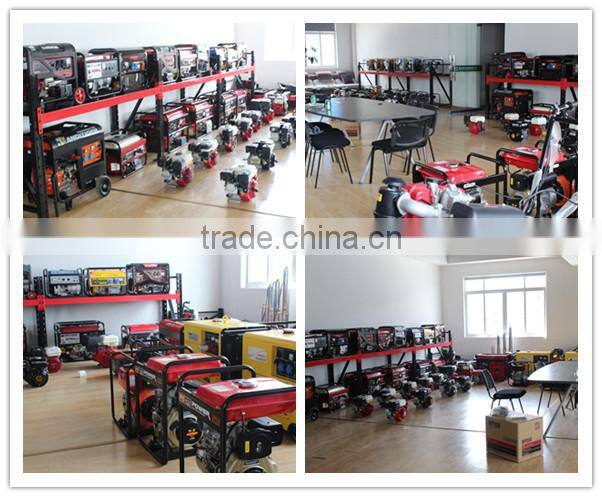

Sample Room
Taizhou Aodisen Machinery Co.,Ltd is a professional manufacturer and exporter of kinds of gasoline engine, diesel engines, gasoline generator, diesel generator, natural gas generator, gasoline water pumps, gasoline engine.
With high quality products, excellent services and a good reputation, we have won great support from customers around the world. Thus, our company scale has expanded.
We also offer all kinds of OEM / ODM services. Now our market covers Eastern Europe, South America, Middle East and Africa. We had established long-term, stable and good business relationships with many manufacturers and wholesalers around the world.
We are looking forward to even greater cooperation with overseas customers based on mutual benefits. Sincerely welcome to visit our factory.

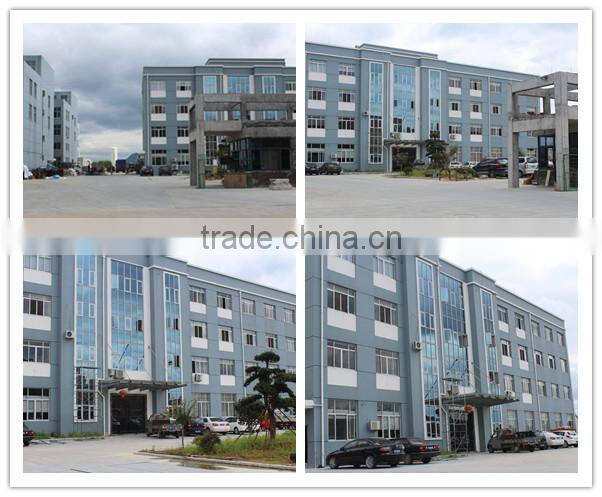

Our Factory
Our Workshop

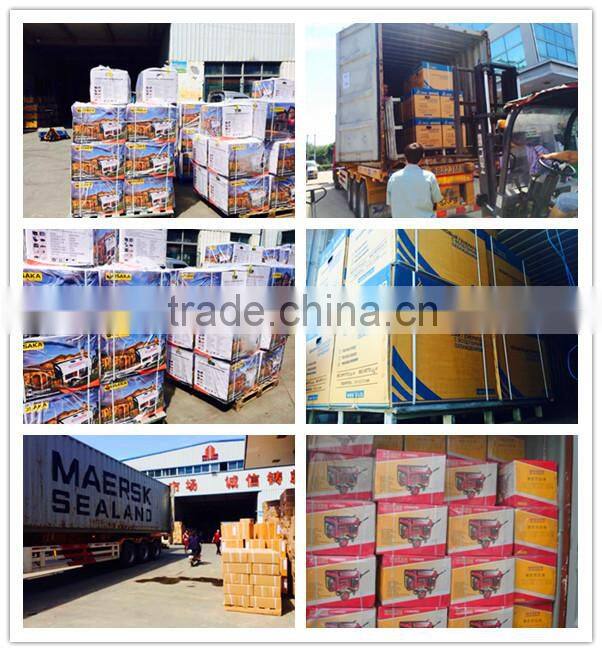

Container Loading
Meeting With Our Customers
