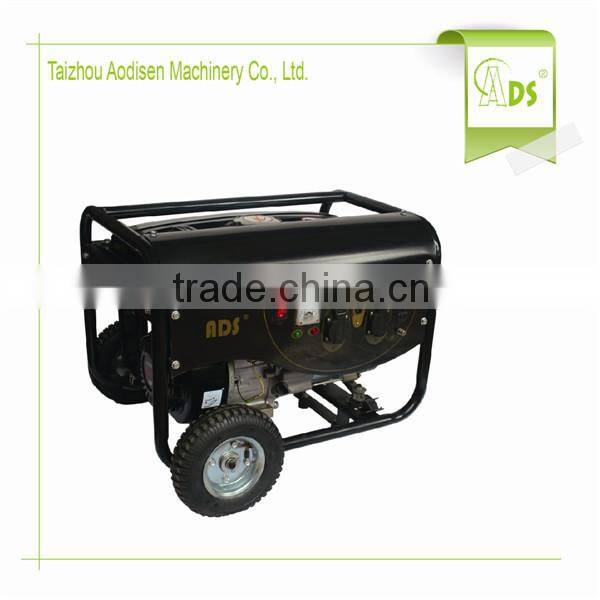

high quality home use 13hp engine 4kW gasoline generator
Model no: ADS5500G
1:Phase options : single phase or single phase + three phase
2:Muffler with low noise
3:Cast iron or forged steel crank shaft , high quality carburetor
4:Best quality crankcase
With self-made reliable gasoline engine and stric testing from spare parts to whole set, AODISEN has superior durability with high performance-price ratio, it is number one for your choice of petrol generator
Characteristic
Four-stroke, high efficiency petrol engine with stable frame
Start options : recoil start & electric start with battery
Phase options : single phase or single phase + three phase
Muffler with low noise
Cast iron or forged steel crank shaft , high quality carburetor
Best quality crankcase
New type voltage meter & current meter with double protection panel
Light weight, compact structure, portable and easy to operate
Economical, low fuel consumption rate to ensure 8 hours running without refueling
Overload protection for safe running
Easy maintenance, suitable for camping, lighting and small hand tools
Strong carton packing, inside lined with foams
Any color is available
Technical Data & Parameter For
high quality home use 13hp engine 4kW gasoline generator
| Model | ADS950 | ADS1200 | ADS1800 | ADS2000 | ADS2500 | ADS3600 | ADS4500 | ADS5500 | ADS6500 | ADS8000 |
| Description | Portable Minitype Petrol Generator For Home Use | |||||||||
| Rated A.C. Power Output | 0.65kw | 0.8kw | 1.5kw | 1.8kw | 2.0kw | 2.5kw | 3.0kw | 4.0kw | 5.0kw | 6.0kw |
| Max. A.C. Power Output | 0.8kw | 1.0kw | 1.8kw | 2.0kw | 2.2kw | 2.8kw | 3.5kw | 4.5kw | 5.5kw | 6.5kw |
| A.C.Frequency Output Options | 50/60 Hz | |||||||||
| A.C. Phase Options | Single Phase | Single Phase | Single Phase or Three Phase + Single Phase | |||||||
| Rated A.C. Voltage Output Options | 110 / 120V / 220V / 230V / 240 V | 110 / 120V / 220V / 230V / 240 V | 110V / 120V / 220V / 230V / 240 V / 110V+220V / 230V+400V / 240V+415V | |||||||
| D.C. Output | 12V 8.3A | |||||||||
| Matched Gasoline Engine Model | 1E45F (2hp) | 1E54F (2.8hp) | ADS160 (5.5hp) | ADS160 (5.5hp) | ADS200 (6.5hp) | ADS210 (7hp) | ADS210 (7hp) | ADS390 (13hp) | ADS390 (13hp) | ADS420 (15hp) |
| Matched Gasoline Engine Type | Single Cylinder, 2 Strokes, Forced Air Cooling | Single Cylinder, 4 Stroke, Side Valve, Forced Air Cooling, Horizontal Crank Shaft | Single Cylinder, 4 Stroke, Forced Air Cooling, OHV, Horizontal Crank Shaft | |||||||
| Ignition Mode | Condenser Diode Ignition | Condenser Diode Ignition | Non-Contact Transistor Ignition | |||||||
| Starting Mode Options | Recoil | Recoil | Recoil / Electric | |||||||
| Displacement | 0.063L | 0.087L | 0.163L | 0.163L | 0.196L | 0.21L | 0.21L | 0.389L | 0.389L | 0.42L |
| Fuel Tank Capacity | 4L | 6L | 15L | 15L | 15L | 15L | 25L | 25L | 25L | 25L |
| Engine Oil Capacity | 0.37L | 0.37L | 0.65L | 0.65L | 0.65L | 0.65L | 1.1L | 1.1L | 1.1L | 1.1L |
| Continuous Operating Time | 6 hours | 6 hours | 13 hours | 13 hours | 13 hours | 12 hours | 12 hours | 10hours | 10hours | 10hours |
| Min. Fuel Oil Consumption Rate | 225g / kw.h | 276g / kw.h | 360g / kw.h | 360g / kw.h | 360g / kw.h | 360g / kw.h | 360g / kw.h | 360g / kw.h | 313g / kw.h | 313g / kw.h |
| Operating noise level | 45db | 60db | 65db | 65db | 65db | 67db | 67db | 69db | 74db | 74db |
| Dimension | 380mm×330mm×330mm | 460mm×370mm×390mm | 600mm×450mm×470mm | 600mm×450mm×470mm | 600mm×450mm×470mm | 600mm×450mm×470mm | 600mm×450mm×470mm | 700mm×525mm×580mm | 700mm×525mm×580mm | 700mm×525mm×580mm |
| N.W./G.W. | 19.5kgs / 20.5kgs | 21kgs / 22kgs | 40kgs / 41kgs | 40kgs / 41kgs | 41kgs / 42kgs | 42kgs / 43kgs | 42.5kgs / 43.5kgs | |||

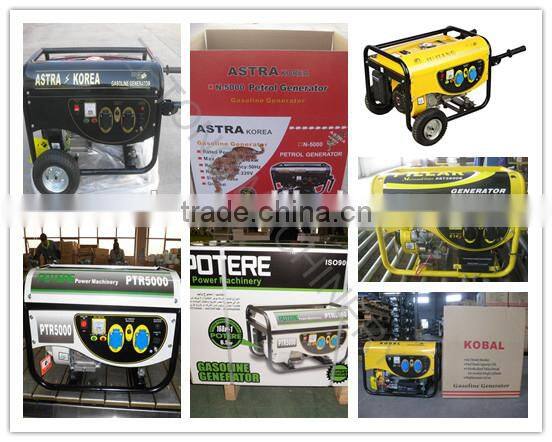

Real Shot For
high quality home use 13hp engine 4kW gasoline generator
Production Line
Testing
Sample Room
Taizhou Aodisen Machinery Co.,Ltd is a professional manufacturer and exporter of kinds of gasoline engine, diesel engines, gasoline generator, diesel generator, natural gas generator, gasoline water pumps, gasoline engine.
With high quality products, excellent services and a good reputation, we have won great support from customers around the world. Thus, our company scale has expanded.
We also offer all kinds of OEM / ODM services. Now our market covers Eastern Europe, South America, Middle East and Africa. We had established long-term, stable and good business relationships with many manufacturers and wholesalers around the world.
We are looking forward to even greater cooperation with overseas customers based on mutual benefits. Sincerely welcome to visit our factory.
Our Factory
Our Workshop
Our Certificates
Meeting With Our Customers
Aodisen offer 18moths after-sales service, If the problem is caused by our technology,we will be responsible for that,even we can send the replacement to your or send our enginer to your country if it is serious.If need and your quantity is large enough,we can send enginer to your country to help you with installment or teach you some maintenance knowledge and how to solve some problem that you frequently meet. For the parts, they will be sent out during 5days at most after receiving your request, OEM is available.
Q1: Are You Manufacturer or Trade Company ?
A: We are Manufacturer
Q1: What is Your MOQ ?
A: Engines: 100sets; Generator: 50sets; Water Pump: 100sets ;
Q2. What Is Your Price Terms?
A: EXW, FOB, CNF and CIF are available.
Q3. What Is Your Payment Terms?
A: T/T, L/C, Weston Union
Q4. What Is Your Delivery Time?
A: Usually 20 Working Days After Receiving Deposit
Q5. What Warranty Could You Provide?
A: Half and One Year Warranty for Free Spare Parts. And We Could Send Engineer To Your Side.
