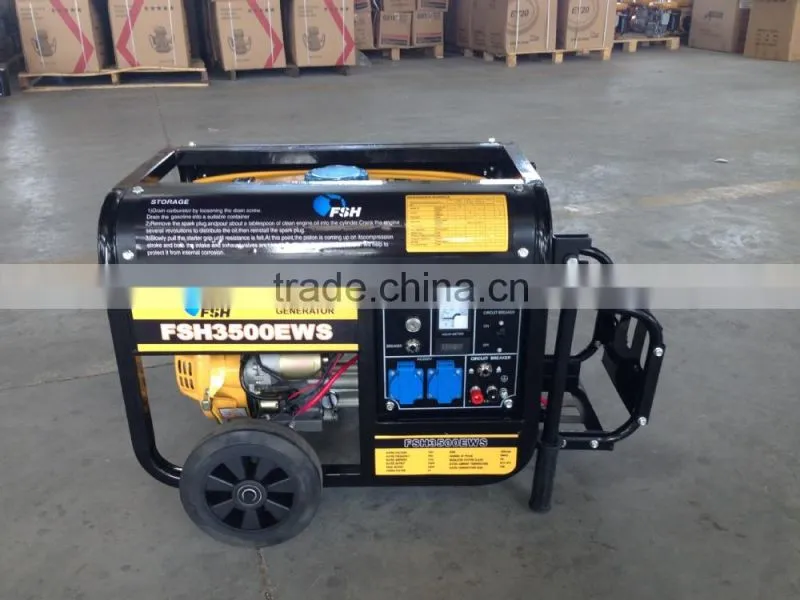

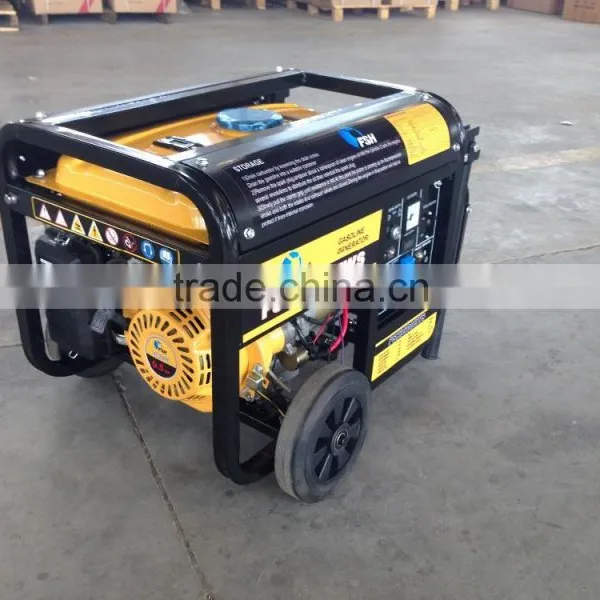

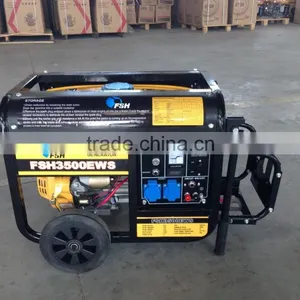

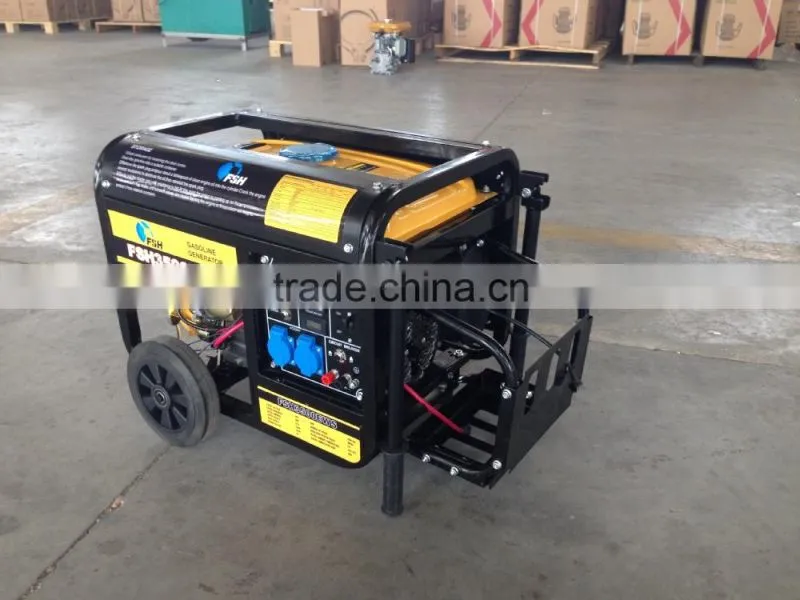

GENERATOR/GASOLINE GENERATOR/HONDA ENGINE GENERATOR

US$ 15 - 150 MOQ: 20 Sets

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

OEM

Model Number:

3000

Yancheng Fujiheng Power Machinery Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name OEM

Model Number 3000

Output Type AC Single Phase

Speed 3600

Frequency 50/60

Rated Power 4.0/4.5kva

Rated Voltage 110/120/220/230/240

Rated Current 12V-8.3A

Specifications

EPA,CE,CSA,CARB,GS,certificates for all market

Specification
GENERATOR	Model	SH2000	SH2500	SH3000
	Type	Brush Single-Phase
	Voltage Regulate	AVR
	Frequency Hz	50/60
	Rated AC Voltage (V)	110V/120V/220V/230V/240V
	Rated AC Output (KVA)	1.5/1.8	2.0/2.2	2.5/3.0
	Peak AC Output (KVA)	1.7/2.0	2.2/2.5	2.8/3.5
	Power Factor COSφ	1.0
ENGINE	Model	JF168	JF168	JF200
	Type	OHV Forced Air-cooled 4-stroke
	Bore x Stroke (mm/inch)	68×45/2.68×1.77	68×45/2.68×1.77	68×54/2.68×2.13
	Displacement (ml)	163	163	196
	Max. output (HP/rpm)	5.5/3600	5.5/3600	6.5/3600
	Fuel	Unleaded Gasoline
	Fuel Tank Capacity (L/gal)	15/4
	Continuous Operating Hours h	13	13	11
	Oil	SF or Higher Grade
	Oil Capacity (L/gal)	0.6/0.16
	Ignition system	T.C.I.
	Starting System	Recoil and hand-operated /Electric start
	Operating Noise Level (7m) dB(A)	67
STANDARD FEATURES	Fuel gauge	0	0	0
	Engine Switch	0	0	0
	Voltmeter	0	0	0
	AC Circuit Breaker	0	0	0
	AC Socket	0	0	0
OPTIONAL FEATURES	Pilot Light	+	+	+
	Wheel & handle	+	+	+
	Hours meter	+	+
