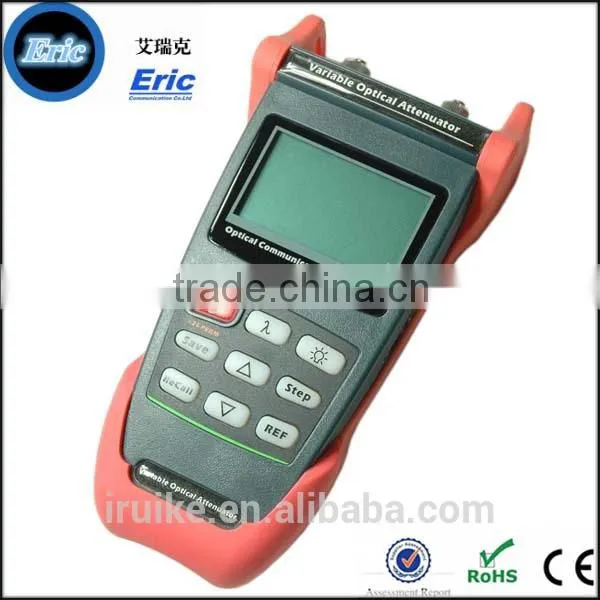

Optical Variable Attenuator EVA50
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
TriBrer Brand
Model Number:
EVA50
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai/shenzhen/ninbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Optical Multimeter AMU900NegotiableMOQ: 1 Piece -
Handheld Optical MultimeterNegotiableMOQ: 1 Piece
-
Optical Fiber Identifier AFI400NegotiableMOQ: 1 Piece
-
Handheld Tribrer Brand Optical Power Meter EPM30T/CNegotiableMOQ: 1 Piece
-
Widely Used Handheld Visual Fault Locator EBL200NegotiableMOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
TriBrer Brand
Model Number
EVA50
Specifications
1. calibrated wavelength: 1310/1490/1550nm2. 0~60dB, 0~80dB
3. 0.1dB per step
Optical Variable Attenuator EVA50
Feature
1. calibrated wavelength: 1310/1490/1550nm
2. 0~60dB, 0~80dB
3. 0.1dB per step
Specification
EVA50-60 |
EVA50-80 |
|
Attenuating Range |
0~60 dB (SM) |
0~80 dB (SM) |
Calibrated Wavelengths |
1310nm / 1490nm / 1550nm |
|
Attenuating Mode |
Digital |
|
Display Resolving Power |
0.1 dB |
|
Display |
LCD, 128*64 |
|
Max Input Power |
+ 28 dBm |
|
Return Loss* |
> 40 dB |
|
Insertion Loss* |
< 2.5 dB |
|
Optical Connector |
FC/PC (can customise other connectors) |
|
Linearity* |
± 0.5 dB |
|
Repeatability* |
± 0.2 dB |
|
RS-232 |
Optional |
|
Auto Power Off |
No operation in 10 minutes (can be cancelled), Low battery energy |
|
Battery Charge |
Yes |
|
Back Light |
Yes |
|
Operate Time |
Above 20 hours |
|
Power Supply |
3 * AA batteries or AC/DC adapter |
|
Size |
190mm * 90mm * 40mm |
|
Weight |
About 450g |
|
