Specifications
1.Power meter and laser source2.Test the loss of the fiber
3.Auto frequency identification
4.1 year guarantee
5.multimet

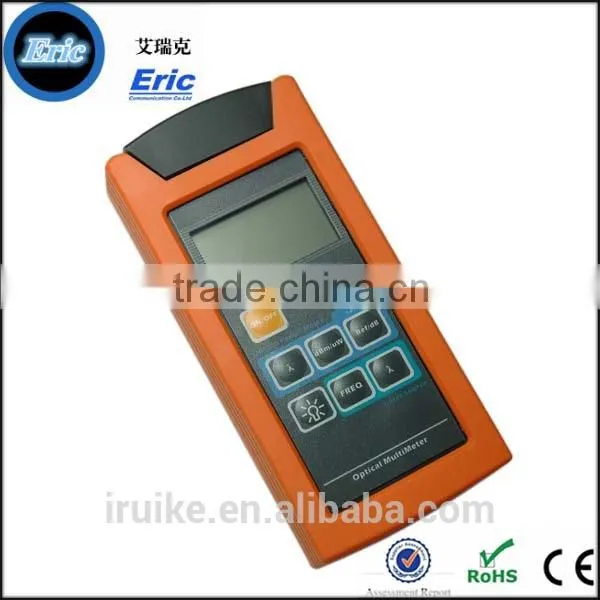

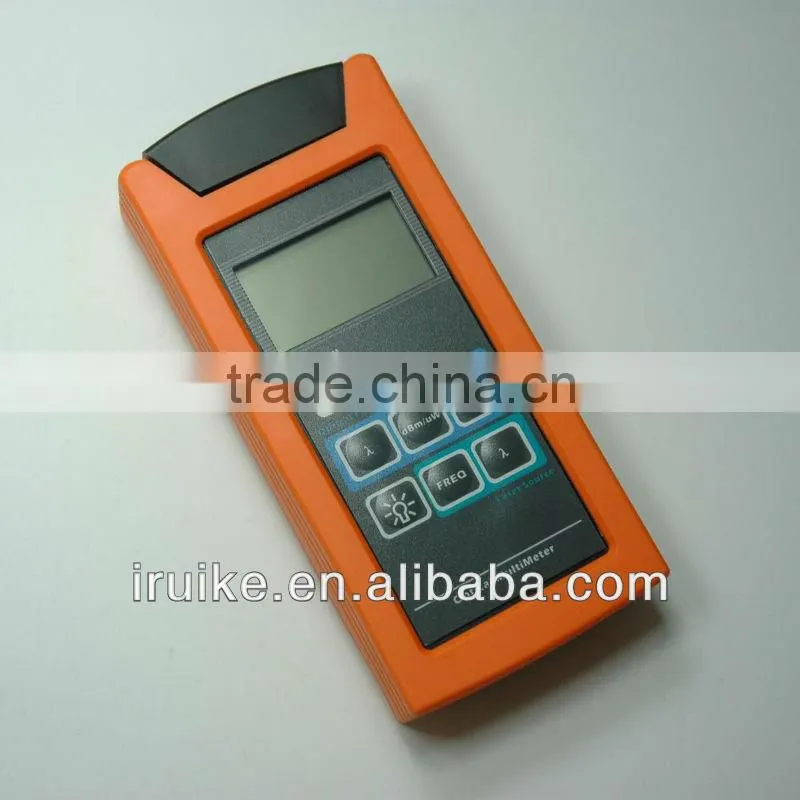

Handheld Optical multimeter
Description
BMU300/301 Optical multimeter can provide both powermeter and laser source for accuratepower, measurement in optical field.Also can provide the reference for laser source and variable attenuator. The optical multimeter is high stabilization of laser souce,can test the loss of the fiber . BMU300 is for telecom test BMU301 is for CCTV test.This item have energy save mode: About 10 minutes no operation will cause.Portable design and easy to carry.
Feature
1.Auto frequency identification
2.Reference value set
Specification
BMU-300 |
||
|
Laser Source |
|
Wavelength (nm) |
1310 & 1550 (1300 & 850) |
|
Output Power |
>-6.0dBm |
|
Modulation |
270Hz, 1KHz, 2KHz |
|
|
Power Meter |
|
Measuring Range |
+8 ~ -70dBm |
|
Display Resolving Power |
0.01dB |
|
Accuracy |
0.01db± 2% |
|
Calibrated Wavelengths |
850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm |
|
Tone Detector |
+5 ~ -40 dBm |
|
Reference Value Set |
Yes |
|
Connecting Adaptor |
FC/PC & Universal |
|
Auto Power Off |
No operation in 10 minutes (can be cancelled),Low battery energy |
|
Battery Charge |
Yes |
|
Power Supply |
2 * AA batteries or AC/DC adapter |
|
Size |
160mm * 75mm * 32mm |
|
at 20±3°C, CW, with FC connector, -10dBm
at 20±3°C, 1550nm
|
Standard |
User's manual |
1 |
Box |
1 |
|
Calibration certification |
1 |
|
Carrying bag |
1 |
|
Optional |
AC/DC adapter |
1 |
Certificates :
