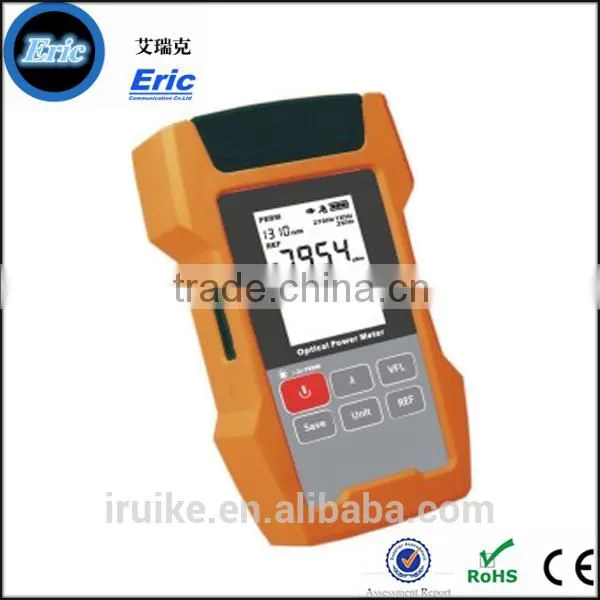

Micro Handheld Fiber Optical Power Meter AOP100

Name: Micro Handheld Fiber Optical Power Meter AOP100
Brand: Eric
SKU: 127577547
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Eric

Model Number:

AOP100

Hangzhou Eric Communication Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen/shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Eric

Model Number AOP100

micro Handheld Fiber Optical Power Meter AOP100

Feature

1.Wide measuremen range;

2.High resolution: 0.01dB;

3.Good accuracy:±0.2dB;

4.Insertion loss test in dB;

5.2.5mm universal and FC, SC, ST, LC;

6.850/1300/1310/1490/1550/1625nm calibrated wavelengths.

7.Data storage

8.Data transfer (optional)

9.7X24 real-time test on PC; (optional)

10.Built in VFL (optional);

11.Energy save mode;

12.Reference value storage;

13.Full energy can support above 100 hours operation

Main Characteristic

Accuracy *	± 0.2 dB
Calibrated Wavelengths	850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm
Display Resolving Power	0.01dB
Connecting Adaptor	FC, SC & 2.5mm UPP, (option: ST)
Reference Value storage	Yes
Automatic Power Off	No operation in 10 minutes (can be cancelled), Low battery energy
Build in VFL (Optional)	1mW or 10mW or customize
Data Storage	40 traces
Battery Charge	Yes
Wave ID (Optional)	Yes
Data Transfer (Optional)	Yes
Real Time Monitor (Optional)	10minutes to 360 days, interval: 0.5s, 2s, 15s, 60s, 180s, 600s
Battery Life	Above 100 hours
Storage Temperature	-20 -- +60 °C, < 90%RH
Operating Temperature	-10 -- +50 °C, < 90%RH
Power Supply	AA * 2 batteries or AC/DC power supply adapter
Size	170mm * 97mm * 38mm
Weight	About 380g

* at 20±3°C, CW, with FC connector, -10dBm

For 850nm, the Min. Power measurement: -60dBm@EPM30T, -40dBm@EPM30C, -50dBm@EPM30M
