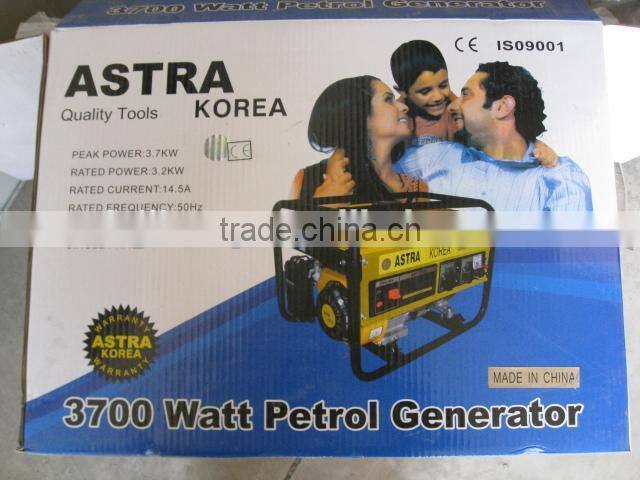

AST3800E/AST3700E/ASTRA KOREA Generator/petrol Generator

Name: AST3800E/AST3700E/ASTRA KOREA Generator/petrol Generator
Brand: AST ORIGINAL
Availability: InStock

FOB Price

US$ 100 - 400 / Set

50 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Gasoline generator:
AST3700E 2.5KW
AST3800E 2.8KW
AST6500EW 5.5KW

Specifications

Specification
GENERATOR	Model	AST3000E	AST3700E	AST3800E
	Type	Brush Single-Phase
	Voltage Regulate	AVR
	Frequency Hz	50/60
	Rated AC Voltage (V)	110V/120V/220V/230V/240V
	Rated AC Output (KVA)	1.5/1.8	2.0/2.2	2.5/3.0
	Peak AC Output (KVA)	1.7/2.0	2.2/2.5	2.8/3.5
	Power Factor COSφ	1.0
ENGINE	Model	JF168	JF168	JF200
	Type	OHV Forced Air-cooled 4-stroke
	Bore x Stroke (mm/inch)	68×45/2.68×1.77	68×45/2.68×1.77	68×54/2.68×2.13
	Displacement (ml)	163	163	196
	Max. output (HP/rpm)	5.5/3600	5.5/3600	6.5/3600
	Fuel	Unleaded Gasoline
	Fuel Tank Capacity (L/gal)	15/4
	Continuous Operating Hours h	13	13	11
	Oil	SF or Higher Grade
	Oil Capacity (L/gal)	0.6/0.16
	Ignition system	T.C.I.
	Starting System	Recoil and hand-operated /Electric start
	Operating Noise Level (7m) dB(A)	67
STANDARD FEATURES	Fuel gauge	0	0	0
	Engine Switch	0	0	0
	Voltmeter	0	0	0
	AC Circuit Breaker	0	0	0
	AC Socket	0	0	0
OPTIONAL FEATURES	Pilot Light	+	+	+
	Wheel & handle	+	+	+
	Hours meter	+	+	+
	DC Output	+	+	+
	DC Circuit Breaker	+	+	+
PACKAGE DIMENSIONS	Dimensions L×W×H (mm/inch)	600×450×470/23.6×17.7×18.5
	Gross Weight (kg/lbs)	41/90.2	42/92.4	52/144.4
	Net Weight (kg/lbs)	39/85.8	40/88	48/105.6
	20/40FT unit	240/475
