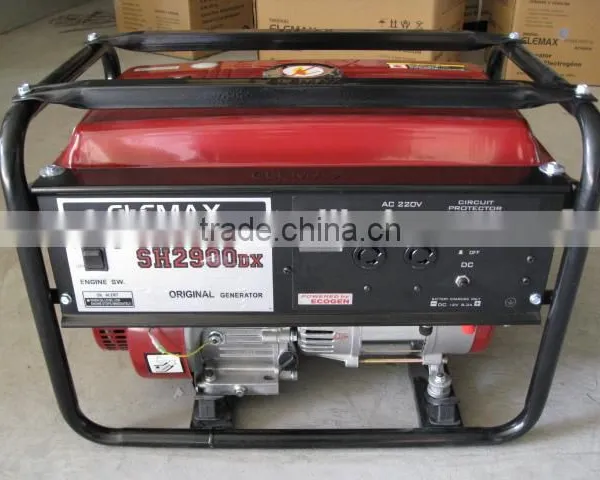

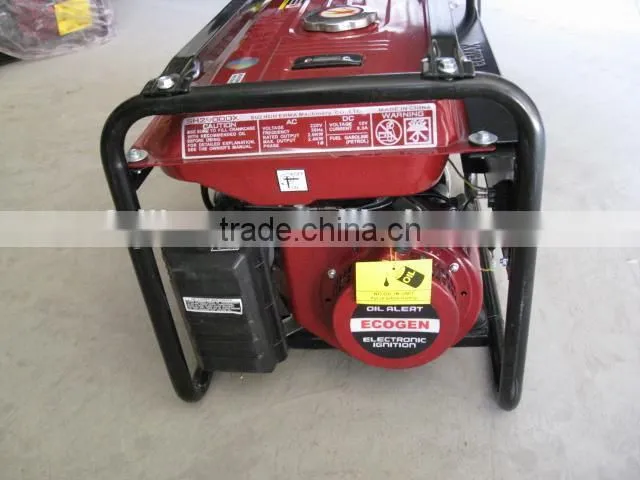

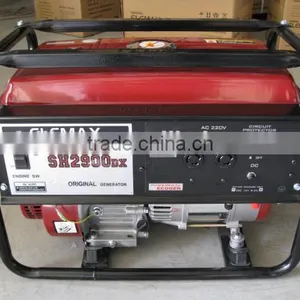

ELEMAX ORIGINAL GENERATOR/ELEMAX GASOLINE GENERATOR

Name: ELEMAX ORIGINAL GENERATOR/ELEMAX GASOLINE GENERATOR
Brand: ELEMAX
SKU: 127576269

US$ 100 - 200 MOQ: 50 Sets

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

ELEMAX

Model Number:

SH2900DX

Yancheng Fujiheng Power Machinery Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name ELEMAX

Model Number SH2900DX

Output Type AC Single Phase

Speed 3600

Frequency 50/60

Rated Power 2kva-5.5kva

Rated Voltage 220/380

Rated Current 1.8/2.0

Specifications

ELEMAX SH2900,,SH7000DXE

Specification

Model	SH2500DX	SH2900DX	SH3800DX	SH7000DXE
Frequency(HZ)	50/60	50/60	50/60	50/60
Rated voltage(V)	110,120,220,230,240 220/380
Rated output KVA	1.8/2.0	2.8/3.0	4.2/4.6	4.6/5.0
Max output KVA	2.0/2.2	3.0/3.3	4.6/5.0	5.0/5.5
DC output	12V-8.3A	12V-8.3A	12V-8.3A	12V-8.3A
Power factor	1.0/0.8(Three phase)
Noise level(7m)db(A)	77	77	77	77
Engine model	SH160	SH160	SH200	SH390
Type	single cylinder,vertical,4-stroke,air-cooled
Bore*stroke(mm)	70*55	78*62	86*70	86*72
Displacement(L)	0.211	0.296	0.406	0.418
Combustion system	Direct Injection
Rated output KW(HP)/rpm	2.5(3.4)/3000 2.98(4.0)/3600	3.8(5.1)/30004.4(5.9)/3600	5.7(7.75)/30006.6(8.85)/3600	5.7(7.75)/30006.6(8.85)/3600
Max output KW(HP)/rpm	2.8(3.8)/3000 3.36(4.5)/3600	4.0(5.36)/30004.9(6.6)/3600	6.3(8.57)/30007.34(9.85)/3600	6.3(8.57)/30007.34(9.85)/3600
Direction of rotation	Counter clock wise,facing PTO shaft
Fuel	0#(summer)/-10#(winder)
Fuel tank capacity(L)	12.5	12.5	12.5	12.5
Lubricating oil capacity(L)	0.75	1.1	1.65	1.65
Continuous running time(h)	14/12	9/8	6.5/5.5	6.0/5.0
Lubricating system	Pressure splashed
starting system	Recoil starter/Electric start
Packing size(LWH)mm	650490570	650490570	725495620
20FT unit	132	132	96	96
Net weight(KG)	58	74	95	98
