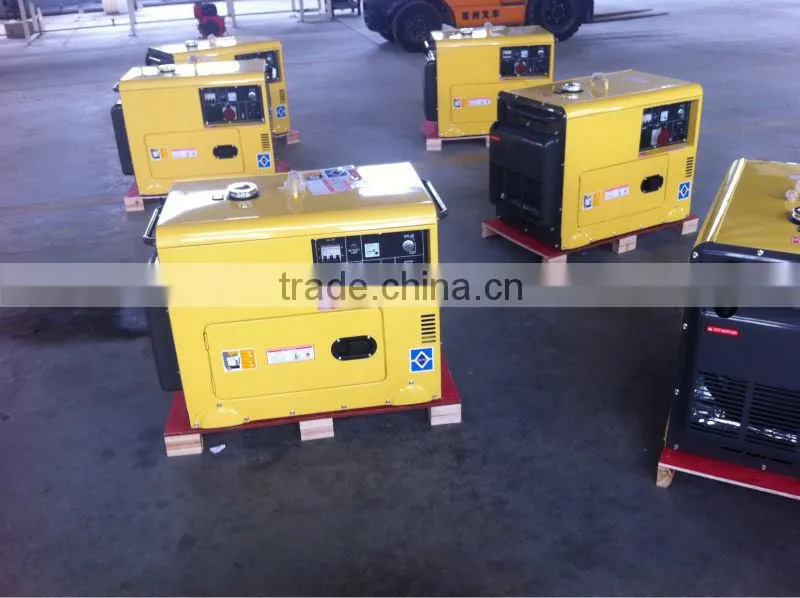

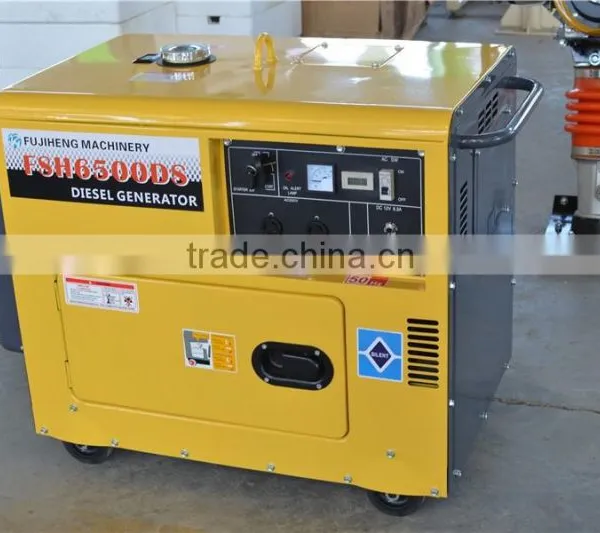

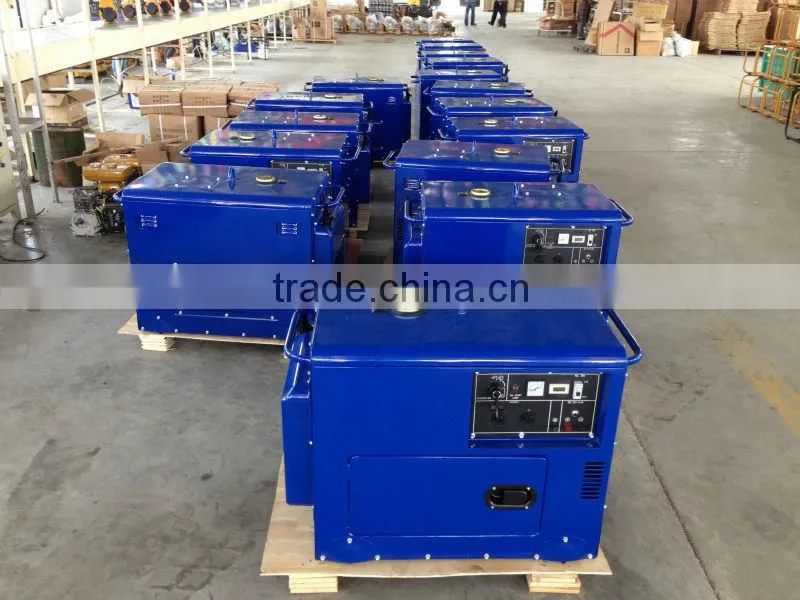

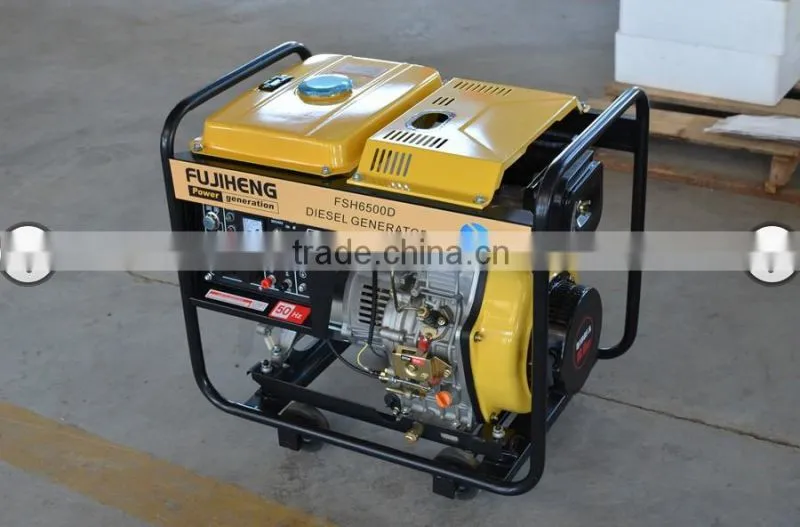

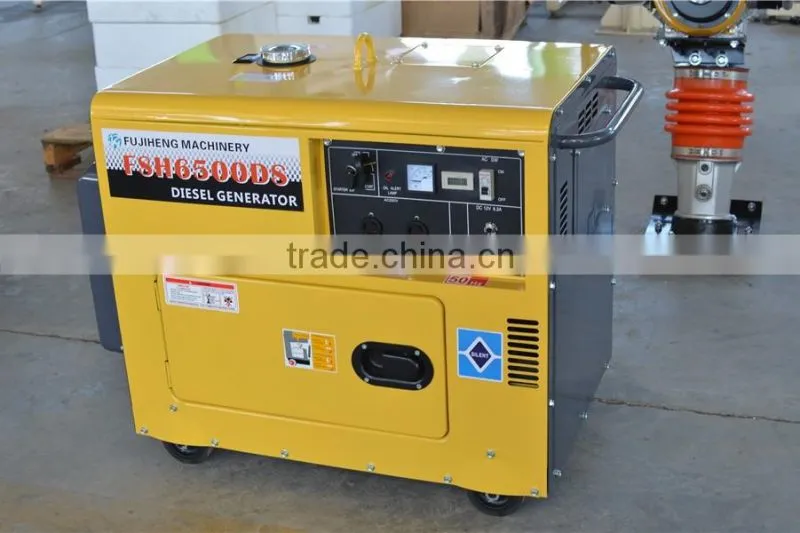

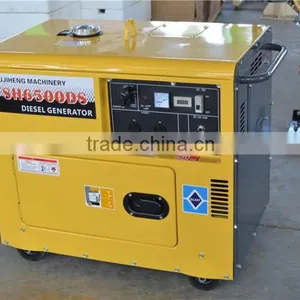

5 Kva Small Diesel Generator, Silent Type and Open Type

US$ 250 - 500 MOQ: 20 Sets

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

FSH

Model Number:

6500DS

Yancheng Fujiheng Power Machinery Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name FSH

Model Number 6500DS

Output Type AC Single Phase

Speed 3600

Frequency 60HZ

Rated Power 2.5-6.5KW

Rated Voltage 110120.220.230.240 230/380

Rated Current 12V-8.3A

Specifications

5.0KVA kama diesel portable generator is mainly uesd in home&garden,indoor&outdoor,power range with 0.8kva to 5kva, silent&open

Features:

1. Easy to operate and high safty,Electric start large fuel tank with 9.5 hours continuous

2.Precise Machining Technique,Automatic shutdown for low oil pressure

3. Long Life of the Machine

4.Delicate and Beautiful Appearance Design

5. Broader Applicable Scope

6.Good quality and less malfunction

7.Four-stroke diesel internal combustion engine

8.Advanced direct fuel injection system

9.Automatic voltage stabilizer

10.Light weight construction

11.One year warranty

Specs:

Model	FSH3500DS	FSH5000DS	FSH6500DS
Frequency(HZ)	50/60	50/60	50/60
Rated voltage(V)	110,120,220,230,240 220/380
Rated output KVA	2.8/3.2	4.2/4.6	4.5/5.0
Max output KVA	3.0/3.3	4.6/5.0	5.0/5.5
DC output	12V-8.3A	12V-8.3A	12V-8.3A
Power factor	1.0/0.8(Three phase)
Noise level(7m)db(A)	72	72	72
Engine model	FSH178FAE	FSH186FE	FSH186FAE
Type	single cylinder,vertical,4-stroke,air-cooled
Bore*stroke(mm)	78*62	86*70	86*72
Displacment(L)	0.296	0.406	0.418
Combstion system	Direct Injection
Rated output KW(HP)/rpm	3.8(5.1)/30004.4(5.9)/3600	5.7(7.75)/30006.6(8.85)/3600	5.7(7.75)/30006.6(8.85)/3600
Max output KW(HP)/rpm	4.0(5.36)/30004.9(6.6)/3600	6.3(8.57)/30007.34(9.85)/3600	6.3(8.57)/30007.34(9.85)/3600
Direction of rotation	Countercolockwise,facing PTO shaft
Fuel	0#(summer)/-10#(winder)
Fule tank capacity(L)	15	15	15
Lubricating oil capacity(L)	1.1	1.65	1.65
Continuous running time(h)	9.5	9.5	9.5
Lubricating system	Pressure splashed
starting system	Electric start
Packing size(LWH)mm	850530710	910530710	915545715
20FT unit	72	72	72
Net weight(KG)	141	165	165
