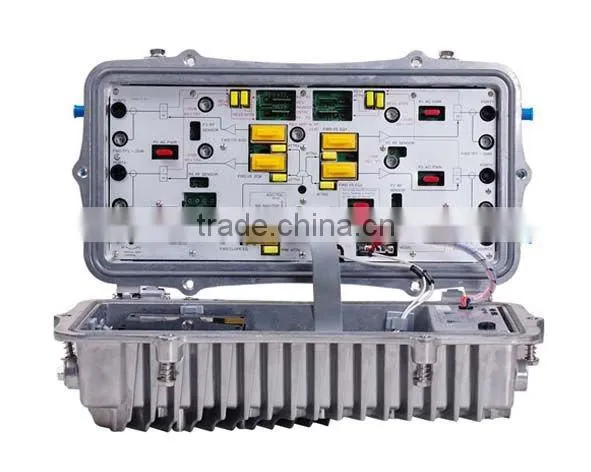

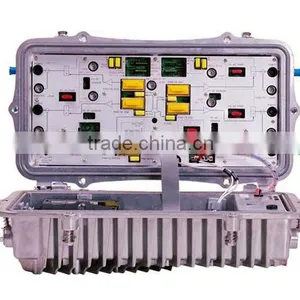

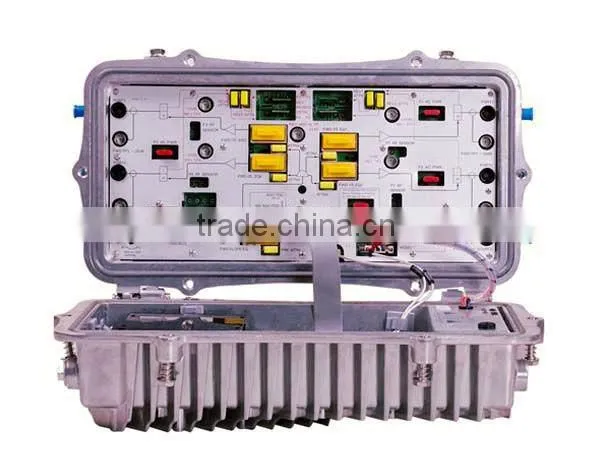

Outdoor CATV Optical Node EN880
1.0 Products Description
EN880 Outdoor Four Ways Output Optical Node with high performance. It has good exterior, choiceness index, mutual independence output, output level adjustable, with reverse transmitter function, reverse transmitter module can be plug flexible convenient for bi-directional network construct. It’s the main device in HFC network.
Inside has optical power indicator and test point, RF channel with adjusted circuit and equilibrium circuit; you can adjust each output level separately.
2.0 Optical Parameter
Optical Wavelength |
1100 ~ 1600nm |
Input Optical Power Range |
-6 ~ +2dBm |
Optical Fiber Connector Model |
FC/APC or SC/APC |
Optical Return Loss |
≥45dB |
Optical Detector Type |
In GaAs PINBGE887BO |
3.0 Link Parameter
CNR |
51dB |
CSO |
≤-61dBC |
CTB |
≤-65dBC |
Test Term |
85 PAL-D signal input Optical Transmitter+10Km Opitcal Fiber and Adjustable Attenuator +YON-8800 Optical Receiver(-1dBm optical power Input) |
4.0 Other Parameter
Power Voltage |
AC180V ~ 250V/AC60V |
Power Consumption |
0 ~ 50°C |
Operating Temperature |
-10 ~ 50°C |
Storage Temperature |
-20 ~ 65°C |
Dimension |
380W x 230D x 165H(mm) |
Weight |
7kg |
5.0 Functional Block Diagram
