Specifications
1.With AGC control2.Use in FTTB network
3.One port output level 108dBuV
4.Two ports output level 105dBuV

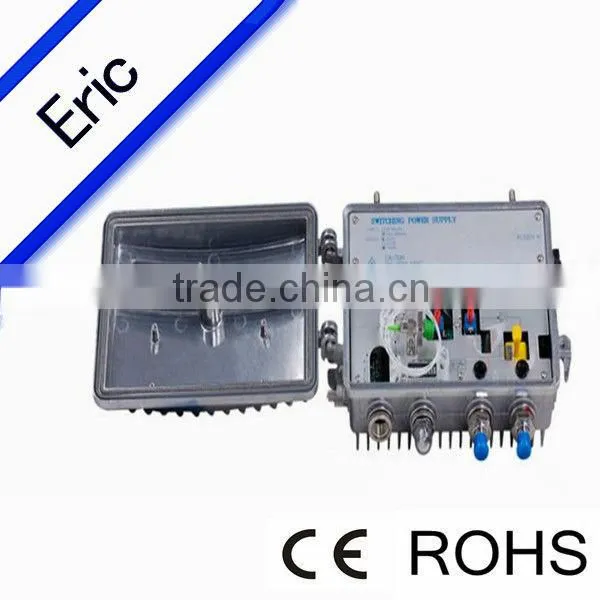

CATV AGC Optical Receivers (Outdoor) ERB2105R
Products Description
ERB2105R series outdoor AGC optical receivers are designed for FTTB and FTTH application.
This device add AGC function to make receiving optical power within -7dBm ~ +2dBm, but output level and other indexes are remain the same. The whole unit with high performance and easy to use, it’s the first choice in large-scale optical fiber network.
Feature
1. CATV AGC Optical Receivers
2.With AGC control
3.Use in FTTB network
4.One port output level 108dBuV
5.Two ports output level 105dBuV
Optical Parameter
Optical Wave Length |
nm |
1100 ~ 1600 |
Input Optical Power |
dBm |
-7 ~ +2 |
Suggest Input Optical Power |
dBm |
-3 ~ +2 |
Optical Return Loss |
dB |
≥45 |
Optical Fiber Connector Type |
|
FC/APC or SC/APC |
RF Parameter
Frequency Rang |
MHz |
45/87 ~ 750/862 |
|
Band-in Flatness
|
dB |
±0.75 |
Output Return Loss |
dB |
≥16 |
Interstage Attenuation |
dB |
0 ~ 15 or fixed plug-in |
Mid-stage Equilibrium |
dB |
0 ~ 15 or fixed plug-in |
C/N |
dB |
≥51(@-1 dBm input) |
CTB |
dB |
≥65 |
CSO |
dB |
≥60 |
RF Output Level |
dBµV |
105(-7 ~ +2 dBm) |
Power Voltage |
V |
AC(130 ~ 265) Or AC(35 ~ 85) |
Power Consumption |
VA |
≤10 |
Functional Block Diagram
