Specifications
1.Fiber Optical switch2.1200 ~ 1600 nm wavelength
3.Imported switching devices with high performance

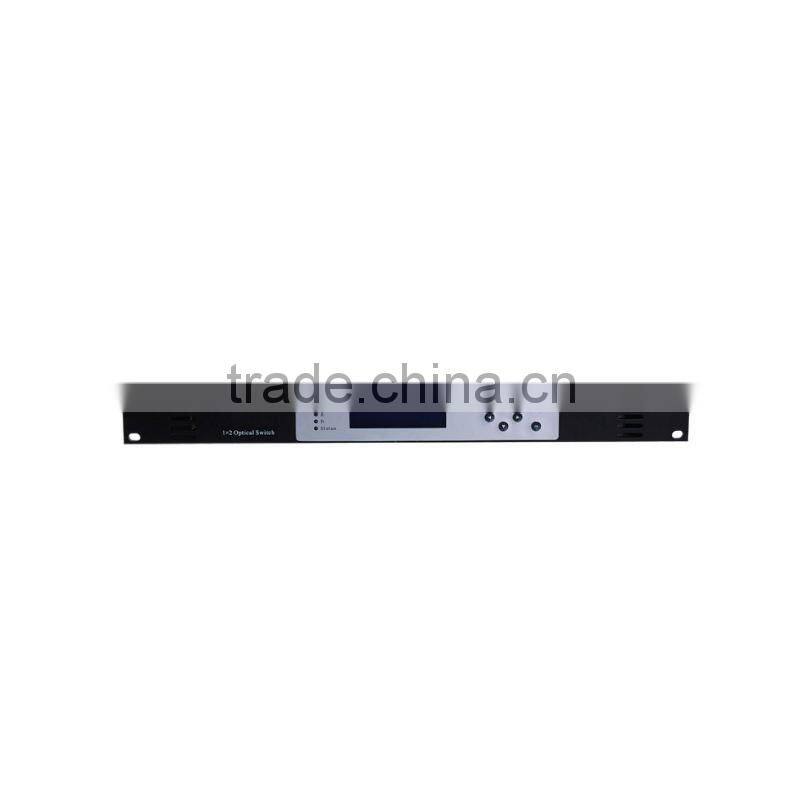

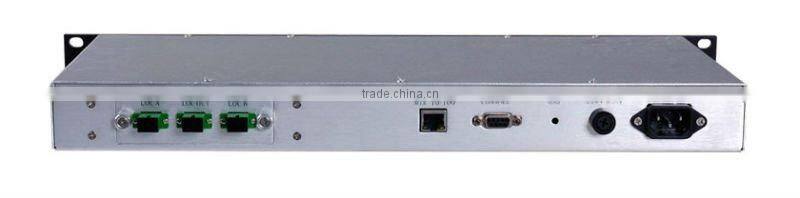

High Performance Fiber Optical Switch OS2012
Products Description
1X2 optical switch is important equipment in optical communication system. It is mainly used in switching two-channel or multichannel optical signals, to ensure the normal non-stop working of the system. It is made of imported switching devices with high performance. It uses embedded automatic monitoring system and Ethernet interface (10Base/100Base-TX) follow IEE802.3, so we can conveniently realize network monitoring.
Technology Parameter
Wavelength | 1200 ~ 1600 nm |
Insertion Loss | ≤1.5 dB |
Switch Time | ≤5 ms |
Return Loss | ≥55 dB |
Max Input Optical Power | 500 mW |
Input Optical Power Range | -10 ~ +27 dBm |
Switch Life | ≥1000 million times |
Optical Connector Type | FC/APC or SC/APC |
Power Supply Voltage | 160V – 250V(50Hz)VAC |
Consumption | ≤2 W |
Working Temperature | -5 ~ +55°C |
Storage Temperature | -30 ~ +70°C |

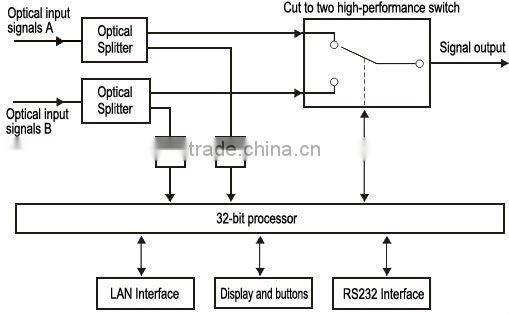

3.0 Functional Block Diagram
