CATV Fiber Optical Switch
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
ERIC
Model Number:
OSW
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Performance Fiber Optical Switch OS2012NegotiableMOQ: 1 Piece -
High Performance Fiber Optical Switch OS2012NegotiableMOQ: 1 Piece
-
High Performance Fiber Optical SwitchNegotiableMOQ: 1 Piece
-
Four Outputs HFC Optical Node EN870NegotiableMOQ: 1 Piece
-
Eric Fiber to Building Optical Receiver/CATV Optical NodeNegotiableMOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
ERIC
Model Number
OSW
Specifications
1)Fiber Optical switch2)Mainly used in the fiber round net
3)With automatic RF test function
4)SNMP management systerm

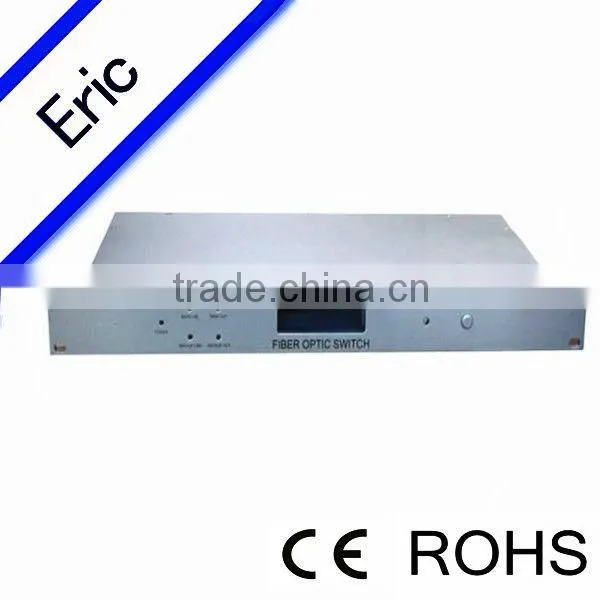

OSW CATV Fiber Optical switch
Product description
OS2000 optical switch has very low insertion loss. VFD or LED will display the working condition.
Features
1) Mainly used in the fiber round net. Once one way of the signal can’t work, it can change to another one automatically.
2) SNMP management system.
3) With optional manual switch through buttons in the panel or by remote SNMP software
4) With automatic RF test function. Once one line has low or zero RF value, it will switch to another line to test automatically.
Parameters
Items |
Parameters |
Working wavelength |
1200nm~1600nm |
Insertion Loss |
1.3~2.0dBm |
Input optical power |
-3dB~25dB |
Return Loss |
≥55dB |
Switching time |
≤7ms |
Power of Switch |
Decided by the user |
Power supply |
220VAC or -48VDC |
Control |
AGC |
Connector |
FC/APC or SC/APC |
Working Temp |
0~50°C |
Storage Temp |
25~65°C |
Humidity |
95% |
Produce series
OS2012: 1 input 2 outputs
OS2021: 2 inputs 1 output
OS2022: 2 inputs 2 outputs
