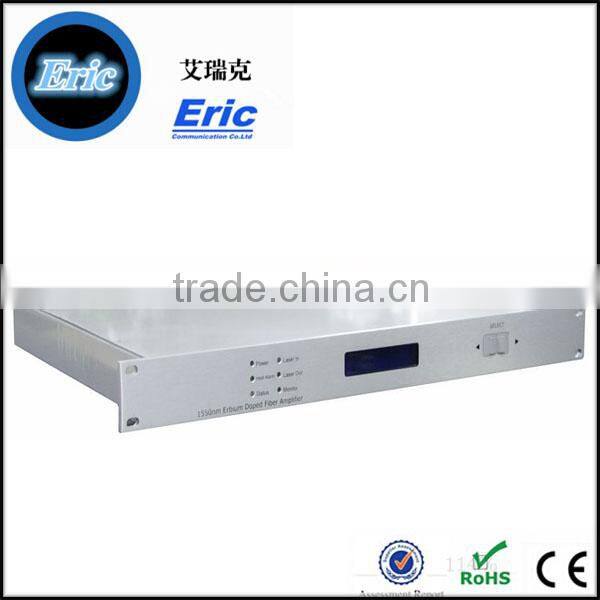

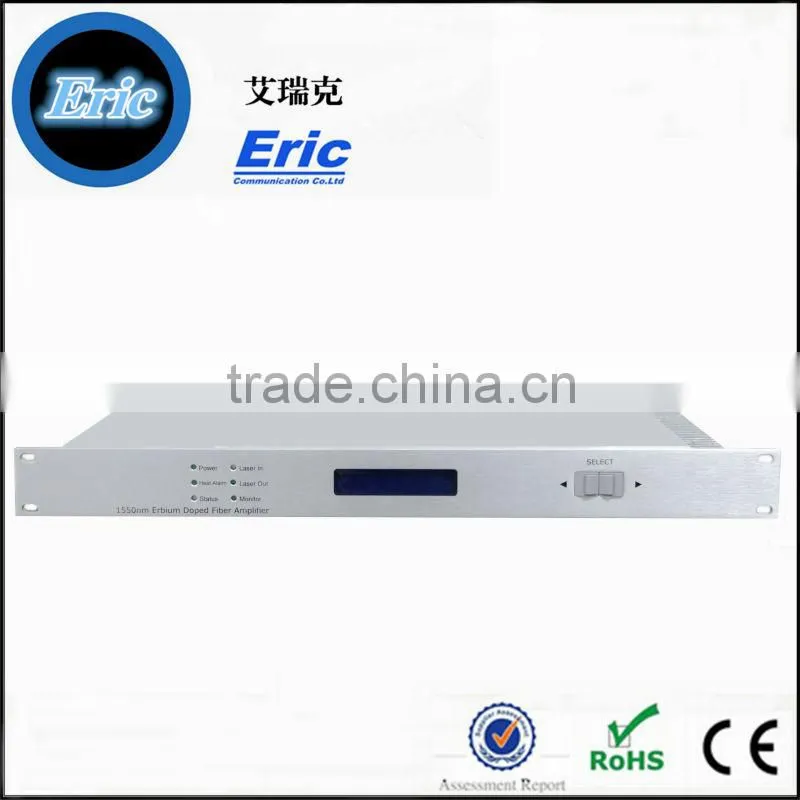

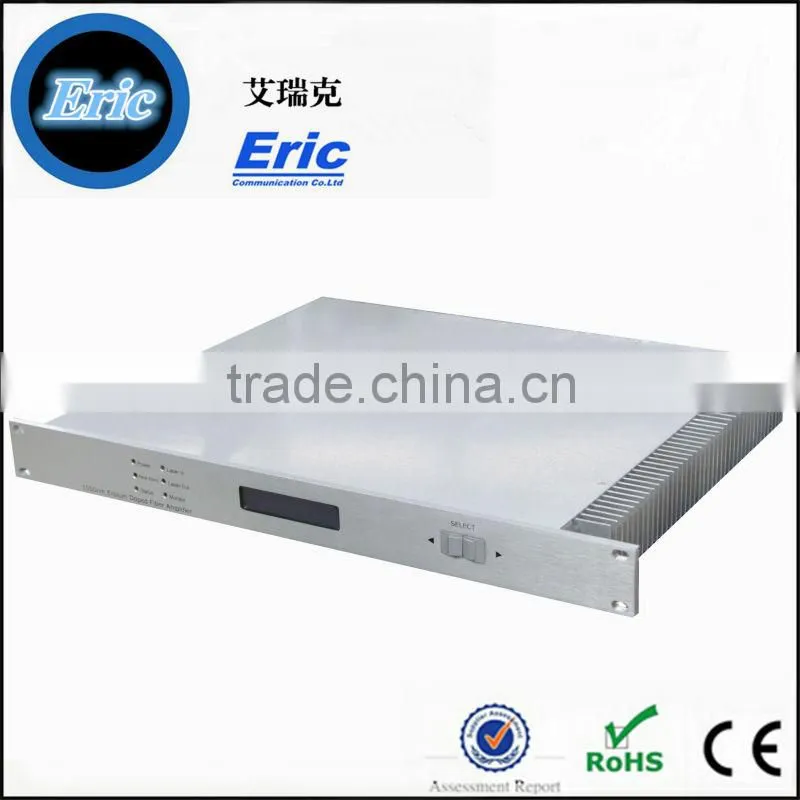

New Products CATV Fiber Optical Amplifier
Product description
EDFA1500 series is a CATV booster optical amplifier with gain dpectrum band within 1530~1560nm. It has low noise figure, high-saturated output power. It is applicable for central bureau, sub-bureau and line relay, as well as other optical communication network.
Features
1) Dual mechanic cooler in the housing and inside iron box to protect the laser. Work a long time.

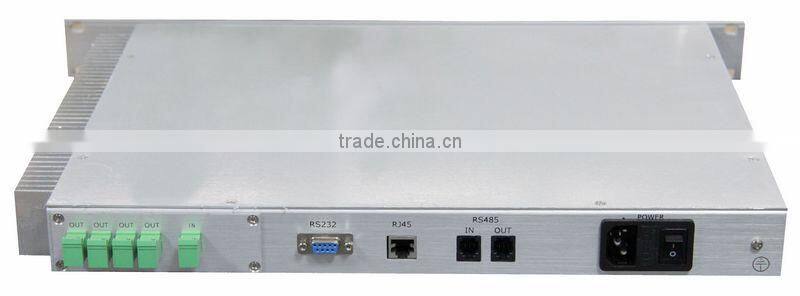

2) RJ45 port for SNMP remote management.
3) RS232 for local management.
4) Adopts JDSU, Fitel and Bookham Pump laser.
5) Good stability, VFD or LED displays the working conditions, good trouble alarm system.
6) Power supply 90V ~ 265V AC or -48V DC for the user’s choice.
7) Max output can reach 27dBm.
Parameters
Items |
Parameter |
||||||||
1500-14 |
1500-15 |
1500-16 |
1500-17 |
1500-18 |
1500-19 |
1500-20 |
1500-21 |
1500-22~27 |
|
Output (dBm) |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22~27 |
Output (mW) |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
160~500 |
Input(dBm) |
-3 ~ 10 |
||||||||
Wavelength(nm) |
1530 ~ 1560 |
||||||||
Output Stability(dB) |
≤0.2 |
||||||||
Polarization Sensitivity |
<0.2 dB |
||||||||
Polarization Dispersion |
<0.5 PS |
||||||||
Optical Return Loss |
≥45 dB |
||||||||
Fiber Connector |
FC/APC or SC/APC |
||||||||
Noise Figure(dB) |
<4.5(0dBm Optical Input) |
||||||||
Network Interface |
RJ45(SNMP) / RS232 / RS486 |
||||||||
Power Consumption |
50 W |
||||||||
Power Supply(V) |
220VAC(110 ~240) or -48VDC |
||||||||
Working Temp(℃) |
-20 ~ +85 |
||||||||
Size(″) |
19″* 15″* 1.75″ |
||||||||
Weight(Kg) |
5.0 |
||||||||
Certificates
