Ledcolourlight LDP6803 TLS3001 WS2811 protocl DMX512 decoder controller nightclub DMX LED lights decoder
Brief Introduction:
Decoder is designed via advanced microchip technology to convert the universal standard DMX512/1990 signal
into most advanced PWM (pulse-width modulation digital driving signal, it allows user to choose 1~3 output channel, 256level brightness control,
max 512 output channels. This compact decoder connects to light console, analog device andvarious Led
terminal products such as RGB Led lamps, RGB Led tubes, building lamps, LED wall washers or lighting and
other compatible devices allowing its user to create endless possibilities of light shows.

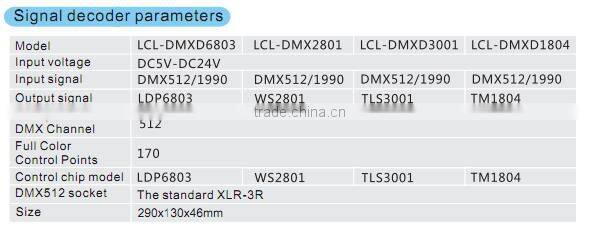

Specification:
Basic Features:
1.Input standard DMX512 protocol,Address can be set by DIP.
2.Automatically adapt input voltage DC12V-24V.
3.3 output channels, 256 scale each, RGB driving control.
4.10 self-changing modes, 8 speed levels.
5.Max output 5A*3CH.
6. Power loss memory function.
Two different versions
3 DMX ADD Version:
The 1st address controls LEDs on CH1,0-255 steps of brightness.
The 2nd address controls LEDs on CH2,0-255 steps of brightness.
The 3rd address controls LEDs on CH3,0-255 steps of brightness.
4 DMX ADD Version:
The 1st address controls LEDs on CH1, 0-255 steps of brightness.
The 2nd address controls LEDs on CH2, 0-255 steps of brightness.
The 3rd address controls LEDs on CH3, 0-255 steps of brightness.
0-127 of the 4th address controls the brightness, 128-255 for strobing.

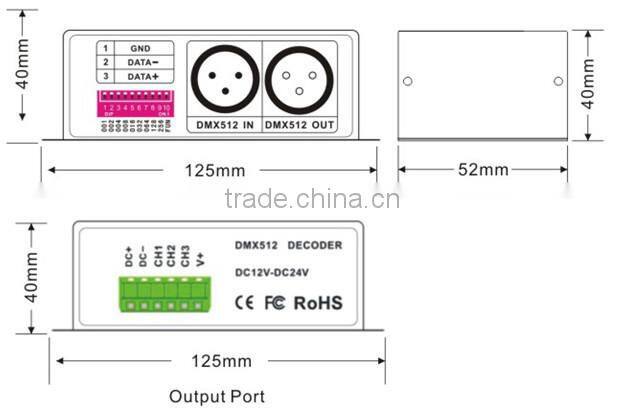

Dimensuons:

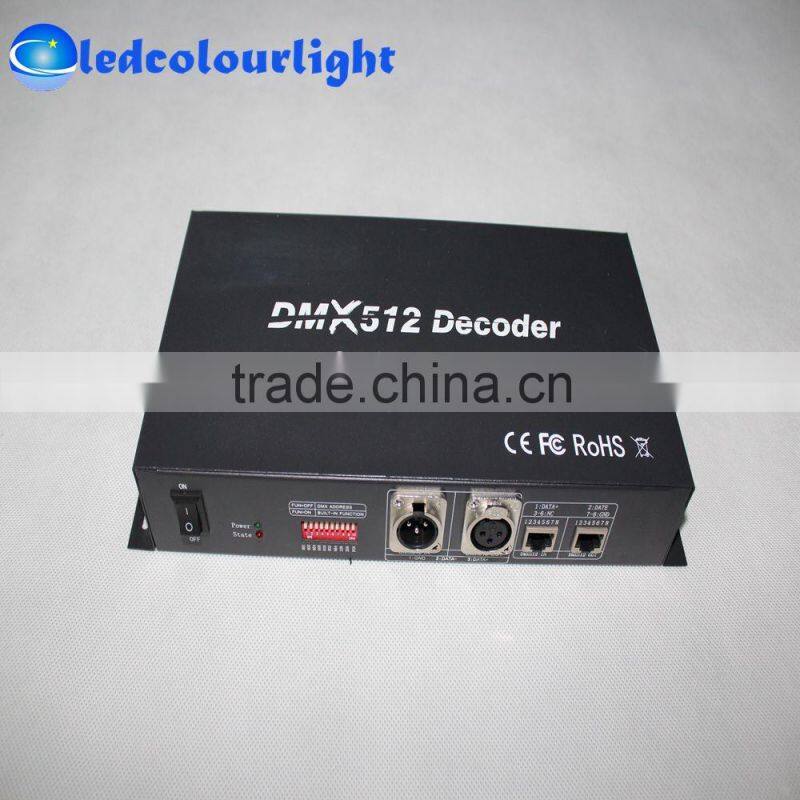

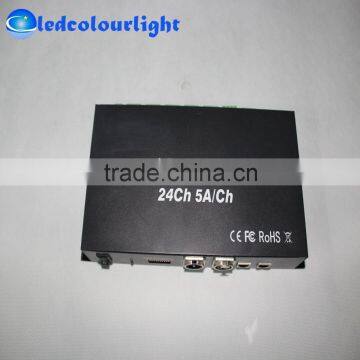

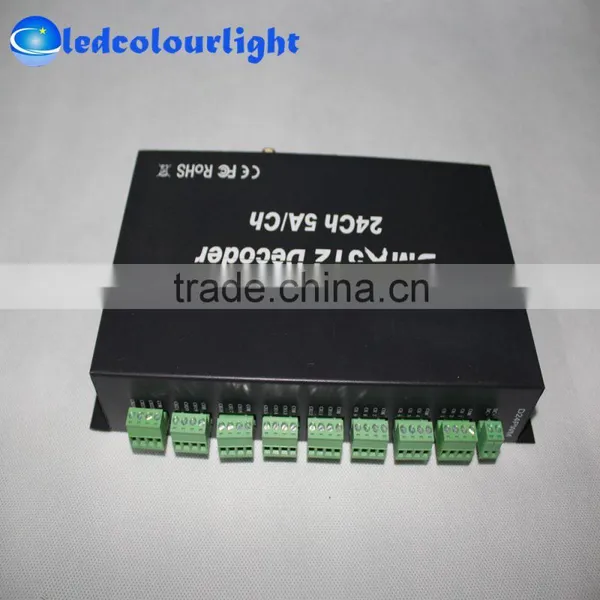

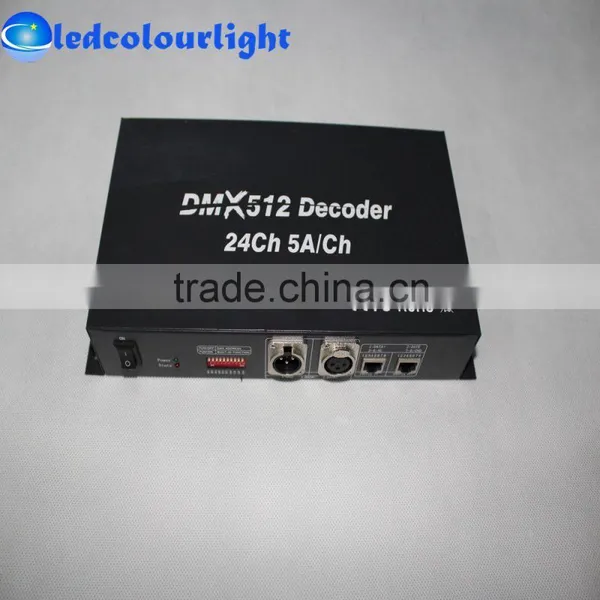

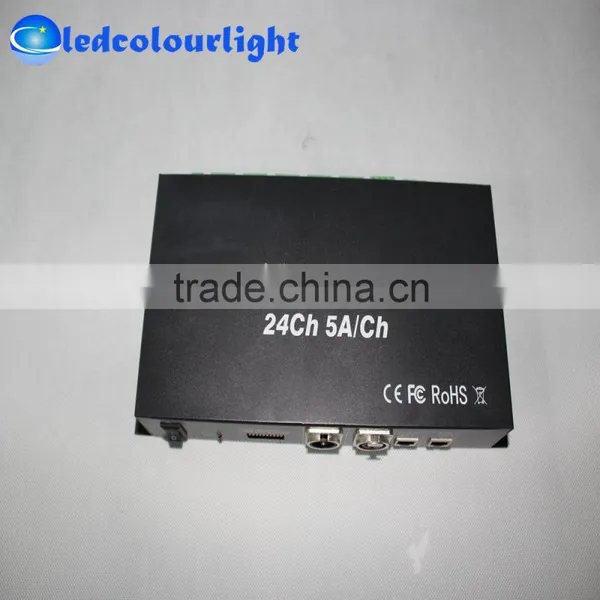

Products picture:
Certificate:

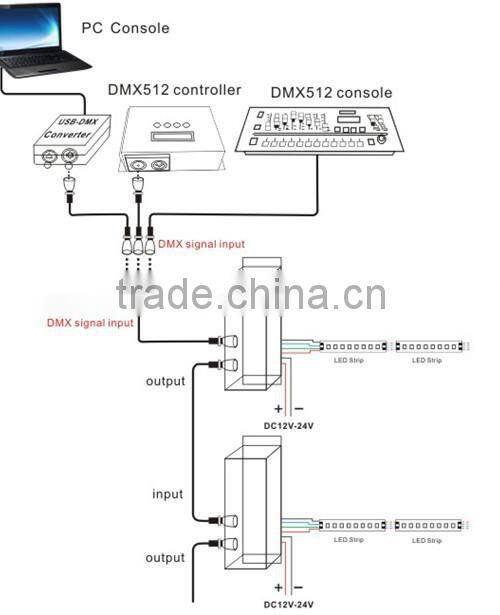

Connection guide:
Quality assurance:All the products will go through 5 checks during production.
Manufactuer's price:Factory direct sale,competitive price.
1. Your inquiry related to our products or prices will be replied within 24 hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. OEM & ODM welcomed, our professional R&D dept. will realize your customized lighting.
4. Distributorship is offered for your unique design and some of our current models.
5. Protection of your sales area, ideas of design and all your private information.
6.Samples can be delivered in 5 days.

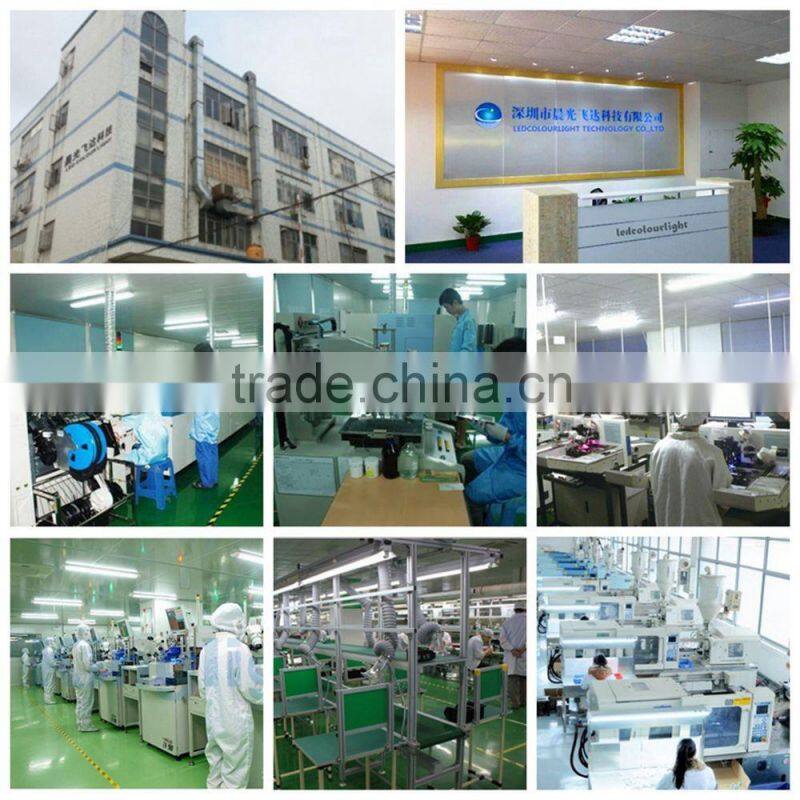

Ledcolourlight Technology Co.,Ltd is a leading DMX LED products and solutions provider
with professional technology, excellent team, perfect management system and enterprise culture.
We work with raw resource suppliers American Cree, South Korean Samsung, Ever light, to realize
the sharing of the resource.
Our products mainly include entertainment lighting,architectural lighting and led controller.
DMX led vertical tube,DMX 3D ball,DMX RGB strip light,DMX module light and DMX digital bar are popular
products for nightclub, stage, and theater. Our DMX underwater/underground light,DMX digital tube,
DMX wall washer,and DMX flood lights are widely used for theme park, hotel, business center, city lighting ect
We insist on quality first and customer first philosophy,striving to provide products and first class service to
our customers.Ledcolourlight will constantly innovate and grow,
and truly realize the win-win Bureau case.
