HOT-SALE!! DMX decoder controller DC12V-24V DMX512 Decoder 3CH*5A
Decoder is designed via advanced microchip technology to convert the universal standard DMX512/1990 signal
into most advanced PWM (pulse-widthmodulationdigital driving signal, it allows user to choose 1~3 output channel, 256level brightness control,
max 512 output channels. This compact decoder connects to light console, analog device andvarious Led
terminal products such as RGB Led lamps, RGB Led tubes, building lamps, LED wall washers or lighting and
other compatible devices allowing its user to create endless possibilities of light shows.
Specification:
Basic Features:
1.Input standard DMX512 protocol,Address can be set by DIP.
2.Automatically adapt input voltage DC12V-24V.
3.3 output channels, 256 scale each, RGB driving control.
4.10 self-changing modes, 8 speed levels.
5.Max output 5A*3CH.
6. Power loss memory function.
Two different versions
3 DMX ADD Version:
The 1st address controls LEDs on CH1,0-255 steps of brightness.
The 2nd address controls LEDs on CH2,0-255 steps of brightness.
The 3rd address controls LEDs on CH3,0-255 steps of brightness.
4 DMX ADD Version:
The 1st address controls LEDs on CH1, 0-255 steps of brightness.
The 2nd address controls LEDs on CH2, 0-255 steps of brightness.
The 3rd address controls LEDs on CH3, 0-255 steps of brightness.
0-127 of the 4th address controls the brightness, 128-255 for strobing.
Dimensuons:

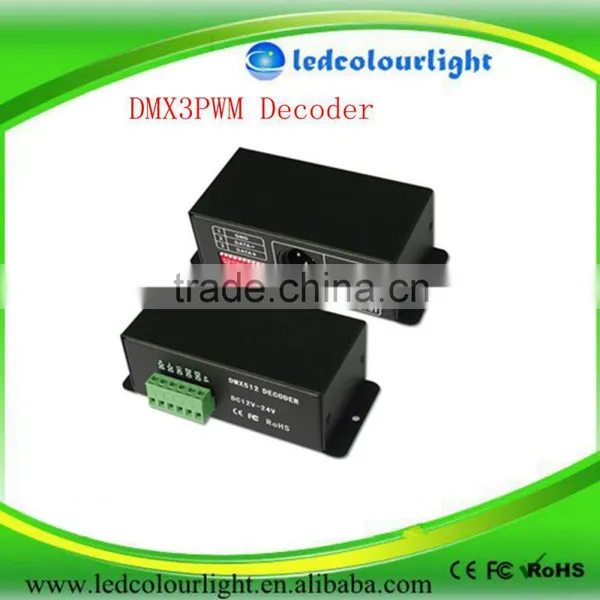

Products picture:
Certificate:
Connection guide:
