Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Eric ftth receiver | Model Number: | ERH1085/WD |
Product Description

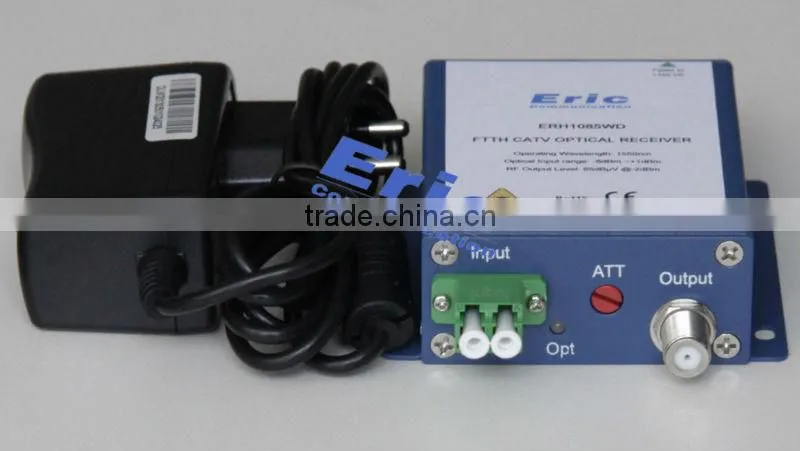

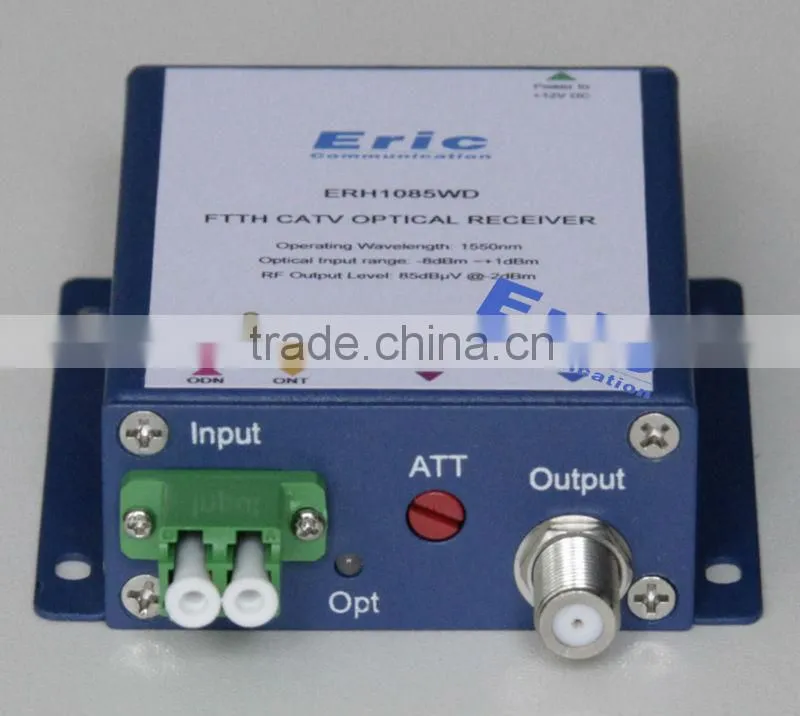

FTTH Pon & CATV Wdm Optical Receiver
Description:

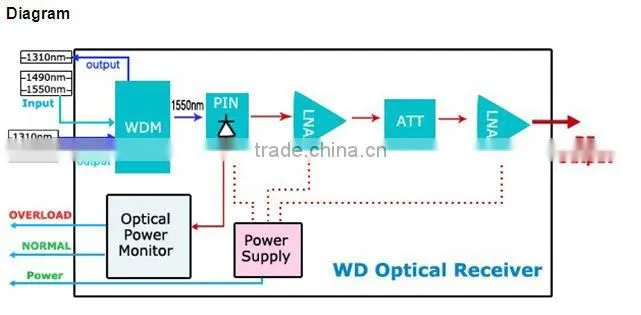

ERH1000/WD Series product is designed for FTTH/FTTB or HFC applications. The general type ERH1085/WD has a normal output level 85dBuV per-channel for TV. The enhanced type ERH1095/WD provides higher level, 95dBuV with -7dBm input power and 3.5% optical modulation index. Both types with WDM integrated for 1550nm video signal pass and 1310nm digital signal reflection they are very applicable for PON system.
Feature:
1.FTTH CATV optica electric receiver build in WDM
2.-8~+2dBm input
3.Output level 20dB adjustable
4.Used in PON system
5.CE and RoHS
Technical specifications:
Downstream Signal Path | General | |||||
Light Wavelength | 1550nm | Power Consumption | 2.3W | |||
Optical Input Power Range | -8 ~ +1dBm | Voltage | 12V DC | |||
Frequency Range | 45MHz ~ 1GHz | RF Connector(s) | F Female | |||
Output Level | 85dBuV | Optical Connector(s) | LC/APC | |||

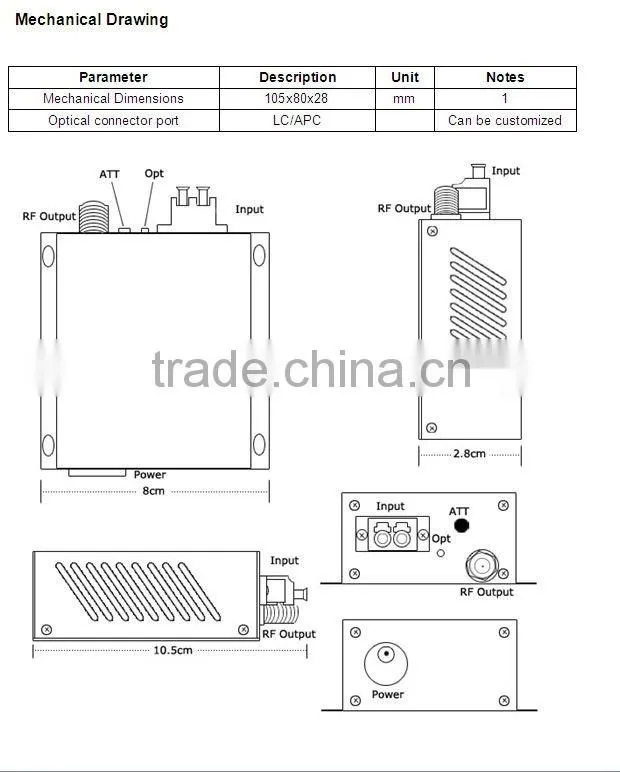

Flatness | ±0.5dB | Dimensions(L*W*H)(mm) | 100*80*28 | |||
Slope | 0dB | Weight | 0.2kg | |||
Return Loss | 16dB | Operating Temp. | -20 ~ 65°C | |||
Noise Figure | 48dB | ESD(RF) Port | 2KV | |||
CTB 59channels | ≥60dB |
| ||||
CSO 59channels | ≥58dB |
