CATV FTTH Fiber Optical Receiver ERH1085WD CN Manufacturer

FOB Price

US$ 50 - 60 / Piece

1 Piece(Min. Order)

Port shanghai /ningbo /shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	Eric optical receiver
Model Number	ERH1085/WD

Product Description

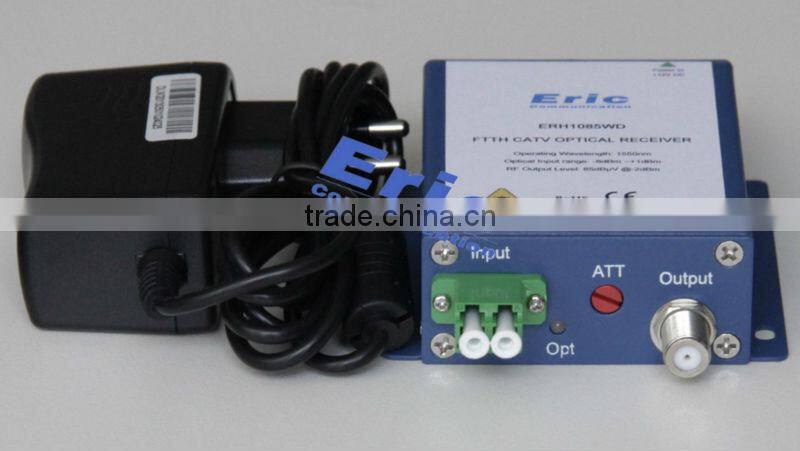

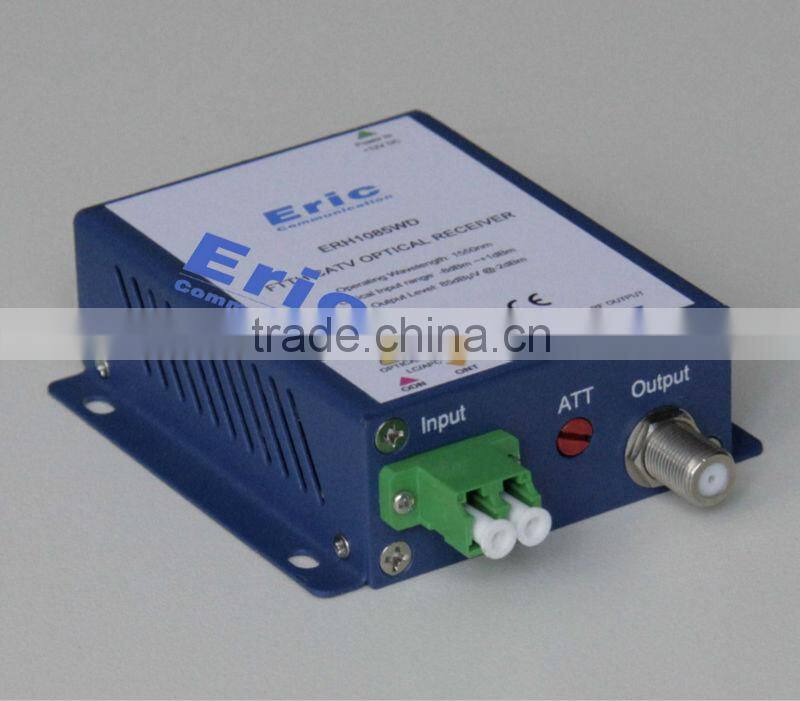

CATV FTTH fiber Optical Receiver ERH1085WD CN manufacturer

ERH1085/WD product is designed for FTTH/FTTB or HFC applications. The general type ERH1085/WD has a normal output level 85dBuV per-channel for TV.

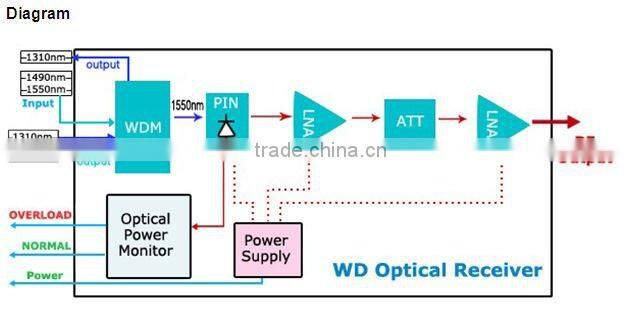

Another Type: ERH1095/WD provides higher level, 95dBuV with -7dBm input power and 3.5% optical modulation index. Both types with WDM integrated for 1550nm video signal pass and 1310nm digital signal reflection they are very applicable for PON system.

Feature:

1.FTTH CATV optica electric receiver build in WDM
2.-8~+2dBm input
3.Output level 20dB adjustable
4.Used in PON system
5.CE and RoHS

Downstream Signal Path			General
Light Wavelength	1550nm	Power Consumption		2.3W
Optical Input Power Range	-8 ~ +1dBm	Voltage		12V DC
Frequency Range	45MHz ~ 1GHz	RF Connector(s)		F Female
Output Level	85dBuV	Optical Connector(s)		LC/APC

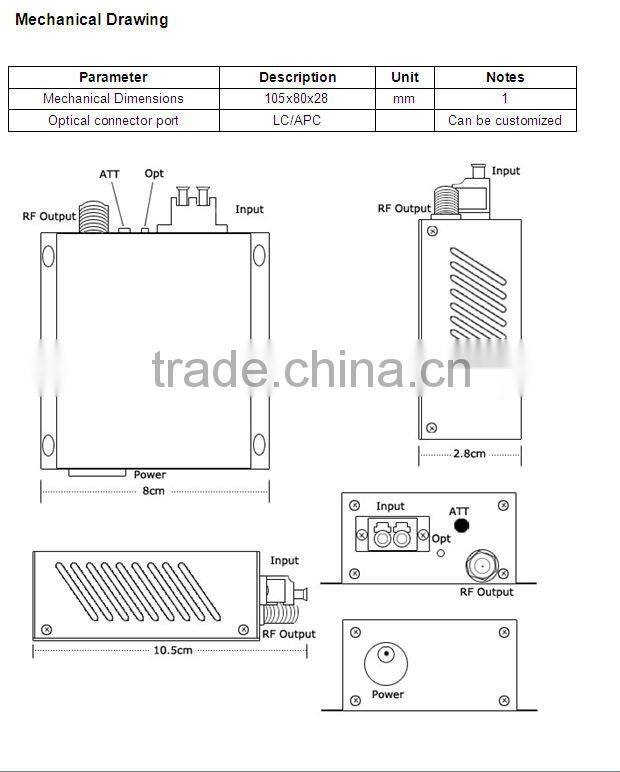

Flatness	±0.5dB	Dimensions(LWH)(mm)		1008028
Slope	0dB	Weight		0.2kg
Return Loss	16dB	Operating Temp.		-20 ~ 65°C
Noise Figure	48dB	ESD(RF) Port		2KV
CTB 59channels	≥60dB
CSO 59channels	≥58dB

We offer more buyer protection for you, so you don't worry about your order:

1) Full Refund if you don't receive your order 2) Refund or Keep items not as described

1) Escrow on line 2) Paypal 3) T/T ( Bank Transfer) 4) Western Union 5) Credit card

For Large quantity or OEM order service, 30% first, 70% balance before delivery.
