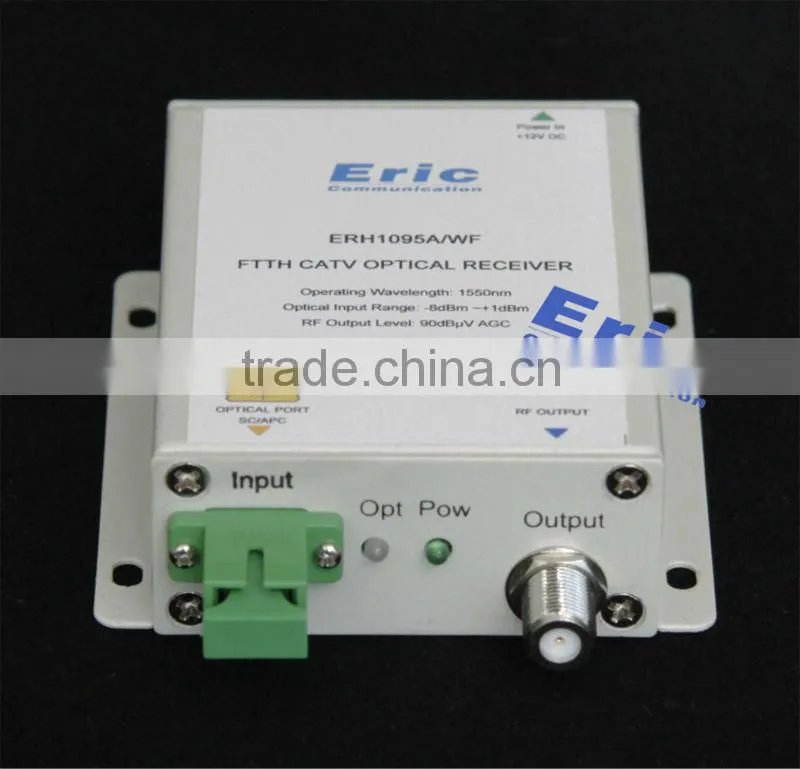

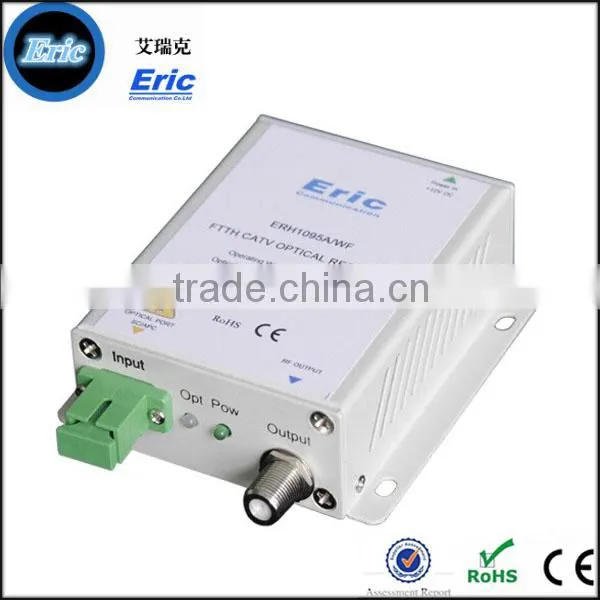

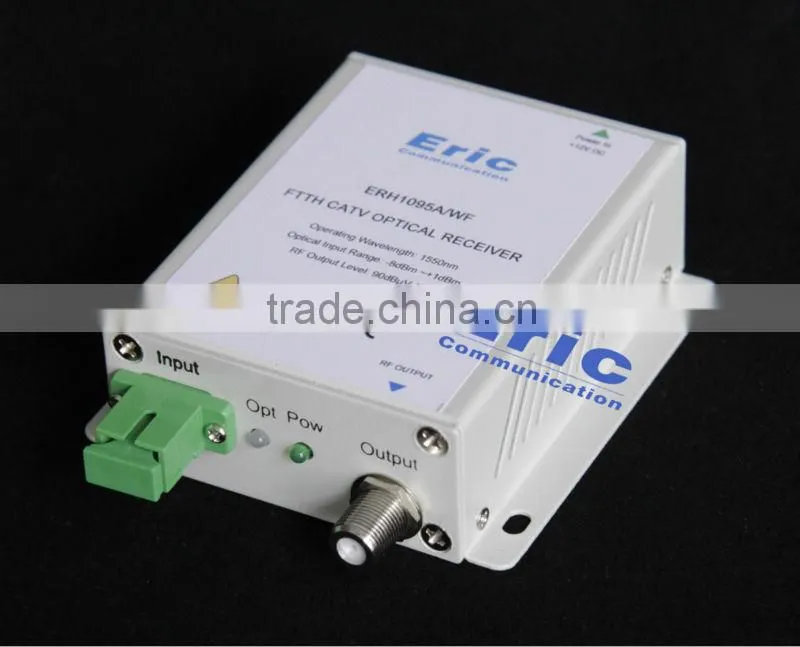

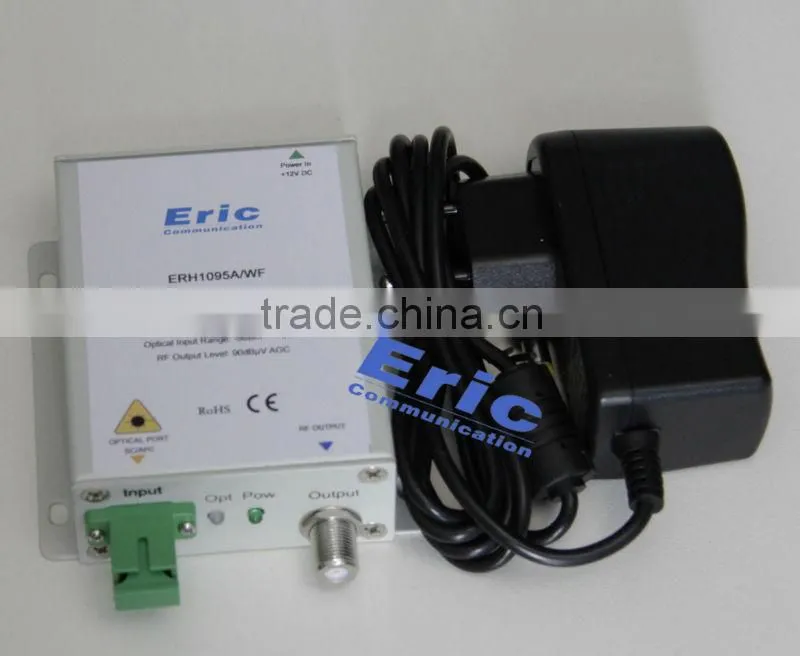

45-1000MHz ftth optical receiver ERH1095A/WF
ERH1000 Series product is designed for FTTH/FTTB or HFC applications. The general type ERH1085 has a normal output level 85dBuV per-channel for TV. The enhanced type ERH1095 provide higher level, 90dBuV with -8dBm input power and 3.5% optical modulation index.
Feature
1.FTTH CATV optical node receiver
2.Good heat dissipation
3.Optical level control
4.Excellent ESD protection
5.Has CE and RoHS
Downstream signal path |
General |
||
Wavelength |
1550nm |
Power Consumption |
3.2W |
Optical Input Power Range |
-8 ~ +1dBm |
Voltage |
12V DC |
Frequency Range |
45MHz ~ 1GHz |
RF Connector(s) |
F Female |
Output Level |
90dBuV (20dB adj.) |
Optical Connector(s) |
SC/APC |
Flatness |
±0.5dB |
Dimensions(L*W*H)(mm) |
100×80×28 |
Slope |
0dB |
Weight |
0.2kg |
Return Loss |
-16dB |
Operating Temp. |
-20 ~ 65°C |
Noise Figure |
48dB |
ESD(RF) Port |
2KV |
CTB 59channels |
≥60dB |
|
|
CSO 59channels |
≥58dB |
|
|
We offer more buyer protection for you, so you don't worry about your order:
1) Full Refund if you don't receive your order 2) Refund or Keep items not as described
1) Escrow on line 2) Paypal 3) T/T ( Bank Transfer) 4) Western Union 5) Credit card
For Large quantity or OEM order service, 30% first, 70% balance before delivery.
