micro ftth Optical Node

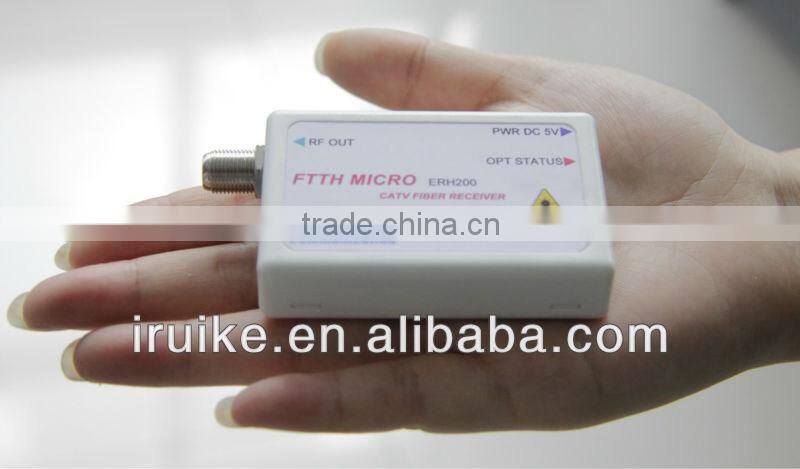

ERH200 FTTH optical receiver can be used for CATV network, digital network and telecommunication network. It is especially suitable for the FTTH network which the fiber extended to the home, the output ports connect to the subscribers.
Features:
1. Micro receiver
2. -8~+2dBm input
3. output power higher than 80dBuV
4. 47-1000MHz operation bandwidth
5. very small size
6.Input stage adopt imported low-noise GaAs chip, excellent non-linear distortion performance
7.The whole power consumption is less than 1W
8.Rigorous reliability test,MTBF >100,000 hours
9.External high-quality power adapter obtains 3C certification
Item |
Unit |
Description |
Remark |
|
Optical |
Optical Wavelength |
nm |
1200~1600 |
|
Optical Connector Type |
SC/APC |
|||
Optical Receive Range |
dBm |
-8~+2 |
Red light while input < -8dBm |
|
Optical AGC Control Range |
dBm |
+2~-8 |
||
RF |
Frequency Range |
MHz |
47~1000 |
|
Flatness |
dB |
±0.75 |
||
RF Output Ports |
1 |
|||
Standard Output Level |
dBuV |
≥80 |
@0dBm input |
|
Output Return Loss |
dB |
>12 |
||
Link Index |
C/N |
dB |
>51 |
@-1dBm input |
CTB |
dBc |
>65 |
||
CSO |
dBc |
>61 |
||
General |
Dimension |
mm |
70×45×17 |
|
External power input voltage |
Vac |
160~220 |
||
External power output voltage |
V |
5 |
||
Power consumption |
VA |
<1 |
||
Operation temperature |
°C |
-20~+50 |
||
Storage temperature |
°C |
-35~+70 |
||
Operation humidity |
10%-90%(non-condensing |
|||
Weight |
Kg |
0.1 |
||
