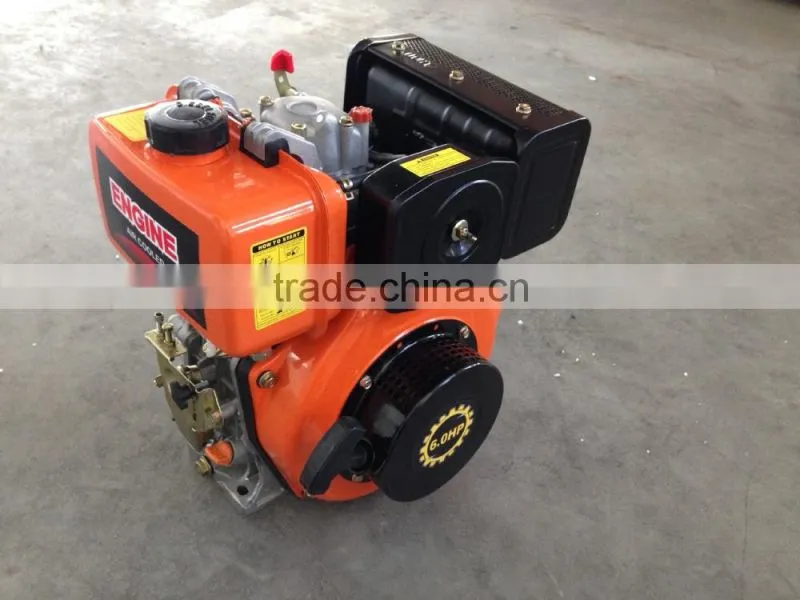

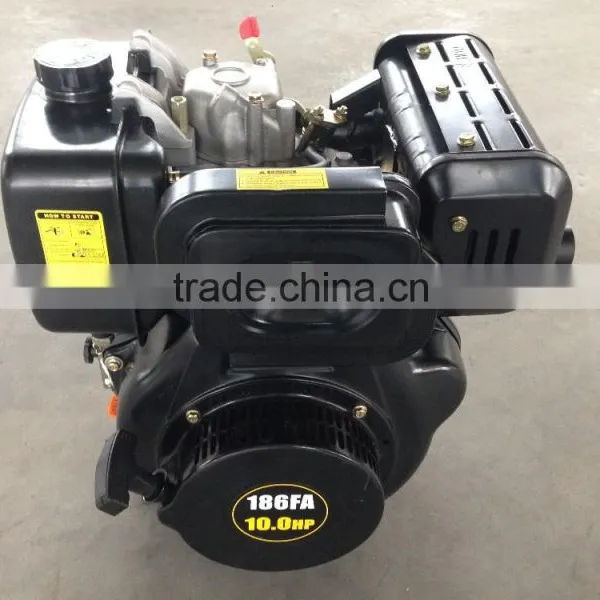

KAMA DIESEL ENGINE/AIR COOLED DIESEL ENGINE/DIESEL ENGINE/170F/178F/186F

Name: KAMA DIESEL ENGINE/AIR COOLED DIESEL ENGINE/DIESEL ENGINE/170F/178F/186F
Brand: KAMA,OEM
SKU: 127572425
Availability: InStock

US$ 45 - 250 MOQ: 50 Pieces

Key Specifications

Condition:

New

Usage:

Other, agricultural

Fuel:

Diesel

Yancheng Fujiheng Power Machinery Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Usage Other, agricultural

Fuel Diesel

Stroke 4 Stroke

Cylinder Single Cylinder

Cold Style Other, Air-cooled

Start Other, mannual/electric start

Place of Origin Jiangsu, China

Brand Name KAMA,OEM

Model Number 186F(E)

Dimension(L*W*H) 500*470*555 mm

Weight 48kgs

Certification CE

Warranty 1 year

After-sales Service Provided Overseas service center available

1.kama diesel engine
2.miniature diesel engine
3.air cooled diesel engine
4.2.5-8.0KVA(3.5-11.0HP)
5.kick or electric start

Kama mniature diesel engine is mainly uesd for agriculture machinery,construction machinery,small boat,generator and etc.

Features:

1. Easy to operate and high safty

2. Precise Machining Technique

3. Long Life of the Machine

4. Delicate and Beautiful Appearance Design

5. Broader Applicable Scope

6.Good quality and less malfunction

Parameter:

Model	FSH170F(E)	FSH178F(E)	FSH178FA(E)	FSH186F(E)	FSH186FA(E)
Type	Air-cooled,4-stroke,single cylinder,side valve
Bore*storke(mm)	70*55	78*62	78*64	86*70	86*75
Dispalcement(L)	0.211	0.296	0.305	0.406	0.418
Combustion sysytem	Derict injection
Rate output KW(HP)/rpm	2.5(3.4)/3000 2.98(4.0)3600	3.8(5.1)/3000 4.4(5.9)/3600	3.8(5.1)/3000 4.4(5.9)/3600	5.7(7.75)/3000 6.6(8.85)/3600	5.7(7.75)/3000 6.6(8.85)/3600
Max output KW(HP)/rpm	2.8(3.8)/3000 3.36(4.5)/3600	4.0(5.36)/3000 4.9(6.6)/3600	4.0(5.36)/3000 4.9(6.6)/3600	6.3(8.57)/3000 7.34(9.85)/3600	6.3(8.57)/3000 7.34(9.85)/3600
Direction of rotation	Counterclockwise,facing PTOshaft
Fuel	0#(summer)/-10#(winder)
Fule tank capacity(L)	2.5	3.5	3.5	5.5	5.5
Lubricationg oil capacity(L)	0.75	1.1	1.1	1.65	1.65
Lubricationg system	Pressure splashed
Start system	Recoil starter/Electric start
Packing size(LWH)mm	415385470	485475525	485475525	500470555	500470555
20FT unit	312	220	220	192	192
Net weight(KG)	26	35	35	48	48
