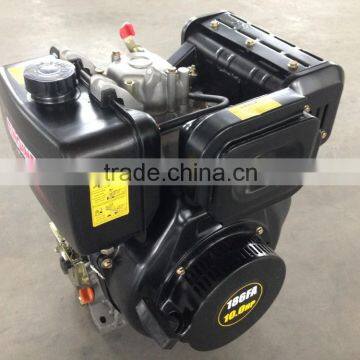

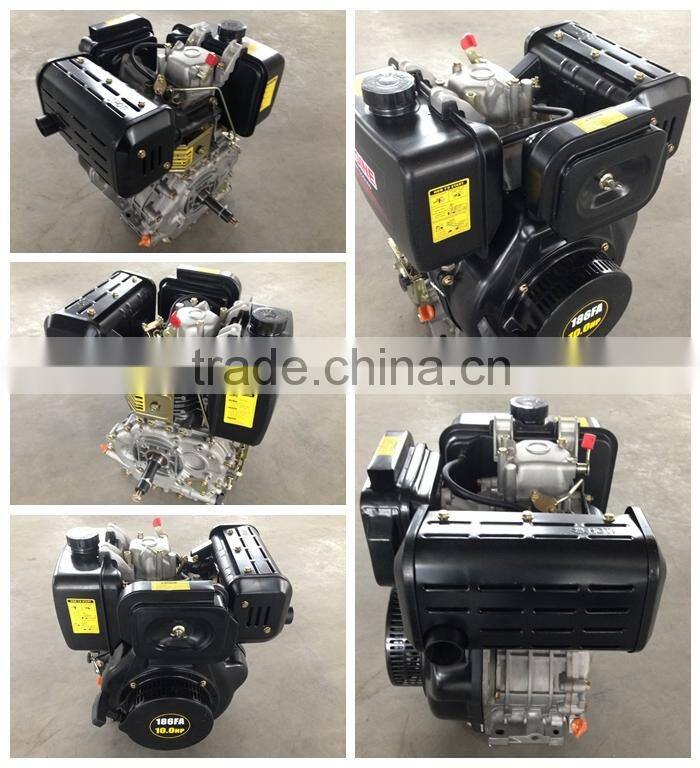

10Hp Small Diesel Engine 186F Air Cooled

FOB Price

US$ 90 - 250 / Piece

10 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Usage	Other, agricultural	Fuel	Diesel
Stroke	4 Stroke	Cylinder	Single Cylinder
Cold Style	Other, Air-cooled	Start	Other, mannual/electric start
Place of Origin	Jiangsu, China	Brand Name	FSH
Model Number	FSH186F

1.kama diesel engine
2.miniature diesel engine
3.kama diesel engine 186f
4.kama 170f,178f,186f,188f engine model
5.hot sale

Kama diesel engine,170f,178f,186f,188f,4.0hp to 10.0hp is mainly uesd in agericulture water pump,generator set,agriculture tiller,small bost and etc.

Features:

1. Easy to operate and high safty,Electric start large fuel tank with 9.5 hours continuous

2.Precise Machining Technique,Automatic shutdown for low oil pressure

3. Long Life of the Machine

4.Delicate and Beautiful Appearance Design

5. Broader Applicable Scope

6.Good quality and less malfunction

7.Four-stroke diesel internal combustion engine

8.Advanced direct fuel injection system

9.Automatic voltage stabilizer

10.Light weight construction

11.One year warranty

Specifications:

Model	FSH170F(E)	FSH178F(E)	FSH178FA(E)	FSH186F(E)	FSH186FA(E)
Type	Air-cooled,4-stroke,single cylinder,side valve
Bore*storke(mm)	70*55	78*62	78*64	86*70	86*75
Dispalcement(L)	0.211	0.296	0.305	0.406	0.418
Combustion sysytem	Derict injection
Rate output KW(HP)/rpm	2.5(3.4)/3000 2.98(4.0)3600	3.8(5.1)/3000 4.4(5.9)/3600	3.8(5.1)/3000 4.4(5.9)/3600	5.7(7.75)/3000 6.6(8.85)/3600	5.7(7.75)/3000 6.6(8.85)/3600
Max output KW(HP)/rpm	2.8(3.8)/3000 3.36(4.5)/3600	4.0(5.36)/3000 4.9(6.6)/3600	4.0(5.36)/3000 4.9(6.6)/3600	6.3(8.57)/3000 7.34(9.85)/3600	6.3(8.57)/3000 7.34(9.85)/3600
Direction of rotation	Counterclockwise,facing PTOshaft
Fuel	0#(summer)/-10#(winder)
Fule tank capacity(L)	2.5	3.5	3.5	5.5	5.5
Lubricationg oil capacity(L)	0.75	1.1	1.1	1.65	1.65
Lubricationg system	Pressure splashed
Start system	Recoil starter/Electric start
Packing size(LWH)mm	415385470	485475525	485475525	500470555	500470555
20FT unit	312	220	220	192	192
Net weight(KG)	26	35	35	48	48
