Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > 10/100/1000M Media Converters

10/100/1000M Media Converters

Name: 10/100/1000M Media Converters
Brand: Eric
SKU: 127571333

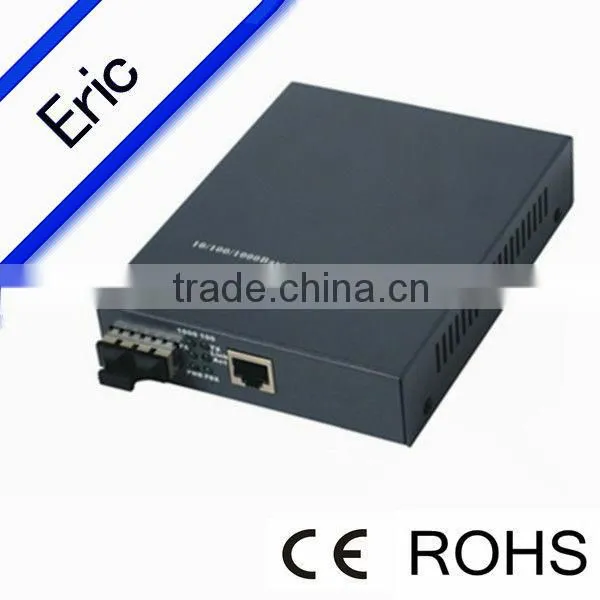

10/100/1000M Media Converters thumbnail-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Eric

Model Number:

ER-GM03

Contact Supplier Request Quote Chat Now

Hangzhou Eric Communication Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI/SHENZHEN/NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Eric

Model Number ER-GM03

Specifications

1.10/100/1000M Media Converters
2.Supporting flow control
3.Adopting internal power supply
4. max 1536 byte Ethernet packet

10/100/1000M Media Converters

Description

This Series Gigabit Fiber Converter can convert Optical-Electric Ethernet signals between 10/100/1000M UTP interface (TX) and 1000M optical fiber interface (FX). The traditional 10/100/1000M gigabit Ethernet can be extended to the distance of 100km through optical fiber link. The performance and quality of the products are excellent because of adopting latest Gigabyte IC from USA and Taiwan. 6 Group LED indicated lights could fully monitor the working conditions of converters. It is easy for users to observe and diagnose the failure of converters.

Main Feature

1.Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex.

2.UTP port supports MDI / MDI-X auto crossover.

3.Supporting the max 1536 byte Ethernet packet

4.Supporting flow control

5.Adopting internal power supply

Technical Specification

1.Operating standards: IEEE802.3z/AB 1000Base-T, 1000Base-SX/LX

2.MAC address table:4K

3.Data Buffer:256K

4.Connector: UTP: RJ-45, 10/100/1000Mbps, Fiber: SC, 1000Mbps

5.Cable
UTP: Cat 5e or Cat 6 (the max distance up to 100m)
Fiber (multimode): 50/125, 62.5/125μm (the max distance up to 550/224m)
Fiber (singlemode): 8.3/125, 8.7/125, 9/125μm (the max distance up to 100km)

6.Flow control
Full Duplex: IEEE802.3x flow control
Half Duplex: back pressure flow control
7.Power: AC110-240V to DC5V; DC 48V to DC5V

8.Ambient temperature:0 ~ +50°C

9.Storage temperature:-40 ~ +70°C

10.Humidity:5% ~ 90%

11.Dimensions:40 (high) x 110 (width) x 140 (length) mm

Order information

Type	Fiber type	Connector	Wavelength	TX power	Sensitivity	Max. distance	Link Budget
ER-GM03	multimode	SC	850nm	-10~-3dBm	-18dBm	224/550m	8dBm
ER-GS03-10	singlemode	SC	1310nm	-12~5dBm	-20dBm	10km	8dBm
ER-GS03-20	singlemode	SC	1310nm	-5~0dBm	-22dBm	20km	13dBm
ER-GS03-30	singlemode	SC	1310nm	-4~0dBm	-24dBm	30km	20dBm
ER-GS03-40	singlemode	SC	1550nm	-8~0dBm	-24dBm	40km	16dBm
ER-GS03-50	singlemode	SC	1550nm	-6~0dBm	-26dBm	50km	20dBm
ER-GS03-70	singlemode	SC	1550nm	-3~3dBm	-28dBm	70km	25dBm

Model	Product description
ER-GM03	10/100/1000M Gigabit Ethernet Multimode Converter: optical wavelength 850nm, optical fiber max distance up to 224m for 62.5μm, 550m for 50μm
ER-303S-xx	10/100/1000M Gigabit Ethernet Singlemode Fiber Converter: optical wavelength 1310 or 1550nm, optical fiber max distance up to 20, 40, 60, 80 or 100km, xx is the amount of distance.
