HOT automatic frozen food tray packaging machine
Main performance & structure characteristics
1. Double converters control bag length which can be set and cut. There is no need to adjust empty which will be prompted automatically by the humanized operation, saving time and membrane.
2. Master control circuit adopts imported single-chip microcomputer with man-machine interface and frequency control, making setting parameters convenient and quick and operation intuitive.Fully implement the humanized automatic operation.
3. Digital fault self-diagnosis function.Fault diagnosis is clear at a glance
4. Packing speed and bag length adopts dual frequency conversion control, digital sealing and cutting position input. The sealing and cutting position is precise, beautiful and solid.
5. Highly sensitive photoelectric device tracks automatically and accurately.
6. Positioning stop function without sticking knife, cutting and wasting envelope.
7.Double frequency contracted mechanical structure with less worn, easy maintenance and long life.
8. The temperature of each seal is independent. PID control is suitable to various packaging materials.
9. All controls are implemented by software. It can install intermittent air device and spray alcohol device to implement adjusting functions immediately and upgrading technology to ensure it will never fall behind.
Applications
Be applicable for packaging of solid and regular products like biscuit, moon cake, candy, insulating tape, wet tissues, paper tissues, cartoon, mosquito-repellent incense and Chinese date.
Technical parameters
| Type | SZ-250 | SZ-320 | SZ-350 | SZ -400 | SZ -450 | SZ-600 |
| Film width | 250mm | 320mm | 350mm | 400mm | 450mm | 600mm |
| Bag Length | 65-280mm | 65-330mm | 65-330mm | 130-400mm | 130-450mm | 130-450mm |
| Bag width | 30-110mm | 50-160mm | 50-160mm | 50-185mm | 60-200mm | 60-280mm |
| products High | max.55mm | Max.55mm | max.60mm | max.80mm | max 90mm | max95mm |
| Packing speed | 40-230bag/mins | 40-230bag/min | 40-230bag/min | 30-180bag/min | 30-180bag/min | 30-150bag/min |
| Power | 220v 50/60HZ 2.4kw | 220v 50/60HZ 2.6kw | 220v 50/60HZ 2.6kw |
220v 50/60hz 2.6kw | 220v 50/60hz 2.6kw | 220v 50/60hz 2.6kw |
| Machine size | 3770x670x1450mm | 3770x720x1450mm | 4020x770x1450mm | 4020x800x1450mm | 4020x820x1450mm | 4020x900x1450mm |
| Machine Weight | 600kg | 700kg | 800kg | 900kg | 1000kg | 1100kg |
Optional device:
1. Code printing machine
2. Line sealing wheel
3. More terminal sealing mould
4. Extra big screen
Electric detailed list:
No. |
Product Name |
Brand |
1 |
PLC |
Panasonic/Japan |
2 |
INVERTER |
Schneider |
3 |
7 inchTouch screen |
Wei Lun/Taiwan |
4 |
Intermediate Relay |
OMRON |
5 |
Switching power |
Meanwell/Taiwan |
6 |
solid state relay |
Schneider |
7 |
Temperature controller |
Yatai/Shanghai |
8 |
Photoelectricity colour code |
Aiset |
Quality Control:
Two different quality controlling way.
1. Factory quality self test.
Have person who is in charge of testing machine with customer's materials.
2. Customer's quality testing
Take video of machine testing, then send to customer, also we keep record.
Basic Service:
1.Technical support
2.Loading inform
3.Video for debugging
4.Customer's require is welcome
5. Free training, Free 1 year warranty

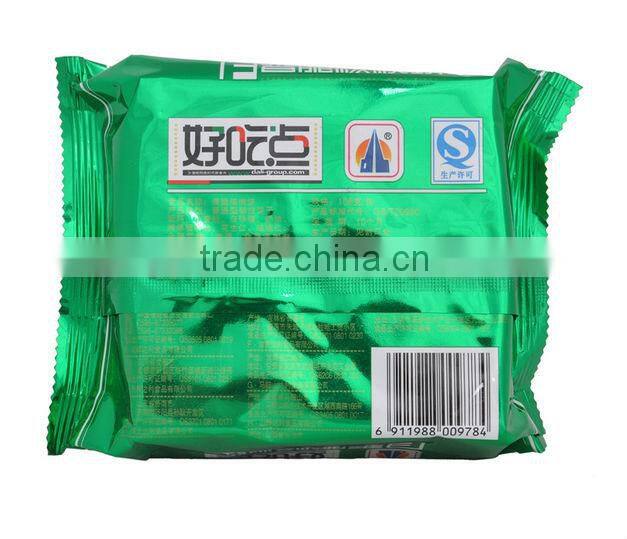

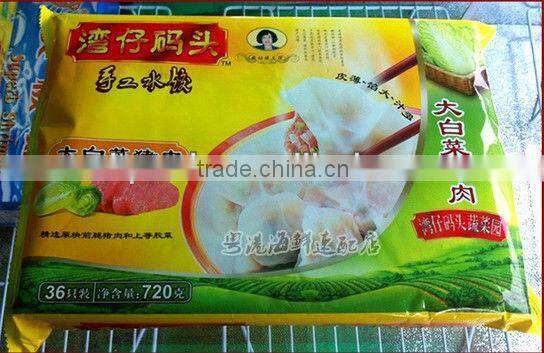

Packing samples:

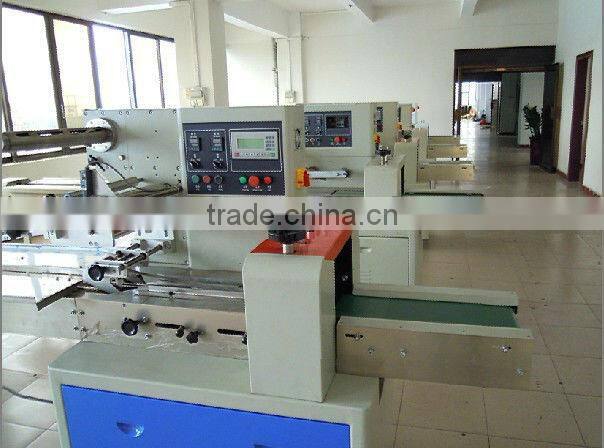

Workshop:
