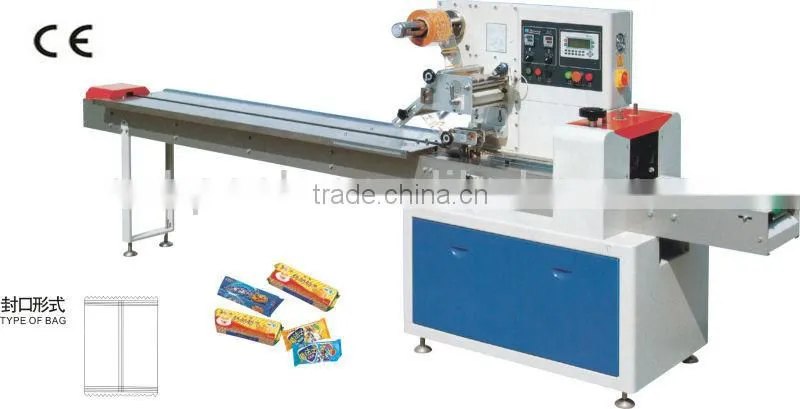

Help CenterAutomatic Pesticide Pillow Packing Machine SZ-250B
Related Products
-
Pocket Tissue Packing MachineUS$ 3,750 - 5,600MOQ: 1 Set -
High-speed Multiple Spoon Straw Packaging MachineUS$ 3,700 - 5,700MOQ: 1 Set
-
SZ-320D Egg Tray Pillow Packaging MachineUS$ 5,400 - 6,880MOQ: 1 Set
-
Best Selling Food Automatic Packing MachineUS$ 5,400 - 6,880MOQ: 1 Set
-
Auto Bagel Wrapping MachineUS$ 3,750 - 5,600MOQ: 1 Set
Specifications
Speciations of automatic pesticide pillow packing machine SZ-250B1. easy to operate
2. high quility ang good price
3. CE
Application of Automatic pesticide pillow packing machine SZ-250B
Suitable for packing regular objects such as biscuit, bread, instant noodle, moon cakes, industrial parts, paper box or trays.
1.easy to operate
2.high quility ang good price
3. CE certification
Optional device of Automatic pesticide pillow packing machine SZ-250B
1. Code applying machine
2. line sealing wheel
3. Moire terminal sealing mould
4. Extra big screen
Main performance & structure characteristics( Automatic pesticide pillow packing machine SZ-250B):
1. Double converters control bag length which can be set and cut. There is no need to adjust empty which will be prompted automatically by the humanized operation, saving time and membrane.
2. Master control circuit adopts imported single-chip microcomputer with man-machine interface and frequency control, making setting parameters convenient and quick and operation intuitive.Fully implement the humanized automatic operation.
3. Digital fault self-diagnosis function.Fault diagnosis is clear at a glance
4. Packing speed and bag length adopts dual frequency conversion control, digital sealing and cutting position input. The sealing and cutting position is precise, beautiful and solid.
5. Highly sensitive photoelectric device tracks automatically and accurately.
6. Positioning stop function without sticking knife, cutting and wasting envelope.
7.Double frequency contracted mechanical structure with less worn, easy maintenance and long life.
8. The temperature of each seal is independent. PID control is suitable to various packaging materials.
9. All controls are implemented by software. It can install intermittent air device and spray alcohol device to implement adjusting functions immediately and upgrading technology to ensure it will never fall behind.
| Tye | SZ-250B | SZ-250D | SZ-250E(3blades) | SZ-250S(4blades) |
| Film width | Max.250mm | Max.180mm | ||
| Bag length | 65-190 or 120-280mm | 90-220mm | 50-115mm | 45-90mm |
| Bag width | 30-110mm | 30-80mm | ||
| Product height | Max.40mm | Max.55mm | Max.35mm | |
| Film roll diameter | Max.320mm | |||
| Packaging rate | 40-230bag/min | 60-330bag/min | ||
| Power | 220v 50/60Hz 2.4KW | 220v 50/60Hz 2.8KW | ||
| (L)3770×(W)670×(H)1450mm | ||||
| Machine weight | 600kg | |||
| Remarks | Optional air filling device | |||
Electric detailed list:
No. |
Product Name |
Brand |
1 |
PLC |
Panasonic/Japan |
2 |
INVERTER |
Schneider |
3 |
7 inchTouch screen |
Wei Lun/Taiwan |
4 |
Intermediate Relay |
OMRON |
5 |
Switching power |
Meanwell/Taiwan |
6 |
solid state relay |
Schneider |
7 |
Temperature controller |
Yatai/Shanghai |
8 |
Photoelectricity colour code |
Aiset |
Quality Control:
Two different quality controlling way.
1. Factory quality self test.
Have person who is in charge of testing machine with customer's materials.
2. Customer's quality testing
Take video of machine testing, then send to customer, also we keep record.
Basic Service:
1.Technical support
2.Loading inform
3.Video for debugging
4.Customer's require is welcome
5. Free training, Free 1 year warranty
