Help CenterHigh-speed Multiple Spoon Straw Packaging Machine
Related Products
-
SZ-320D Egg Tray Pillow Packaging MachineUS$ 5,400 - 6,880MOQ: 1 Set -
Best Selling Food Automatic Packing MachineUS$ 5,400 - 6,880MOQ: 1 Set
-
Auto Bagel Wrapping MachineUS$ 3,750 - 5,600MOQ: 1 Set
-
Pillow Packing Machine SZ-250DUS$ 3,750 - 5,600MOQ: 1 Set
-
Pillow Type Packaging Machine(SZ-450X )NegotiableMOQ: 1 Set
Specifications
1. Simple Opearation;2. Easy Maintenance;
3. Durable;
4. Efficient Follow-up Serivce
Packing material: Heat-sealable laminated film, such as: OPP,PE,PVC,PT/PE,OPP/CPP ,other special sealable packing film.
Sealing Type: Back-sealed (3 sides sealed)
I. Main performance and structure features
1. Double transducer control, flexible bag length cutting, operator needn’t to adjust the unloading working, saving time and saving films.
2. human-machine operation, convenient and quick parameter setting.
3.Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking ,digital input cut position which makes the sealing and cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
8. .All the controls are achieved by software, convenient for function adjusting and upgrading.
II. Application
Suitable for packing regular objects such as biscuit, bread, instant noodle, moon cakes, industrial parts, paper box or trays.
III. Optional device
1. Code applying machine
2. Extra big screen
IV. Specification:
Type |
SZ-350B |
SZ350D |
SZ-400B |
SZ-400D |
||
Film width |
Max.350mm |
Max.400mm |
||||
Bag length |
65-190/120-280mm |
90-220/150-330mm |
130-320mm |
180-400mm |
||
Bag width |
50-160mm |
50-185mm |
||||
Product height |
Max.40mm |
Max.60mm |
Max.40mm |
Max.60mm |
||
Film roll diameter |
Max.320mm |
|||||
Packaging rate |
40-230bag/min |
30-180bag/min |
||||
Power |
220v 50/60Hz 2.6KW |
|||||
Machine size |
(L)4020×(W)770×(H)1450mm |
(L)4020×(W)800×(H)1450mm |
||||
Machine weight |
800kg |
900 kg |
||||
Remarks |
Optional air filling device |
|||||
V. Electric detailed list:
| No. | Product Name | Brand |
| 1 | PLC | Panasonic/Japan |
| 2 | INVERTER | Schneider |
| 3 | 7 inchTouch screen | Wei Lun/Taiwan |
| 4 | Intermediate Relay | OMRON |
| 5 | Switching power | Meanwell/Taiwan |
| 6 | solid state relay | Schneider |
| 7 | Temperature controller | Yatai/Shanghai |
| 8 | Photoelectricity colour code | Aiset |

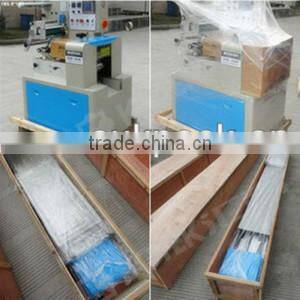

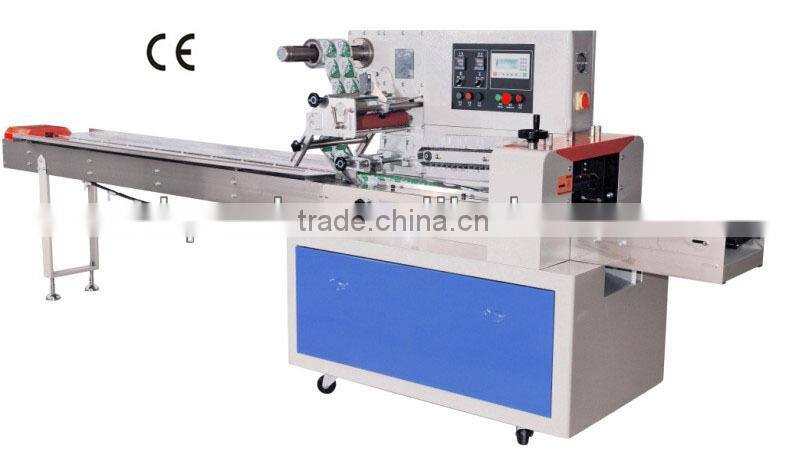

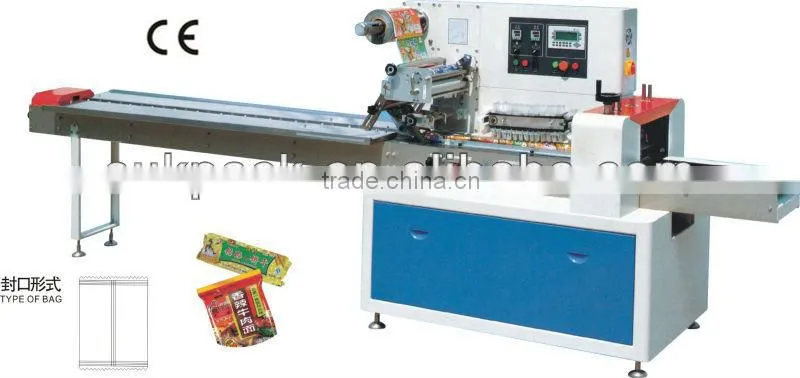

Machine pictrues:

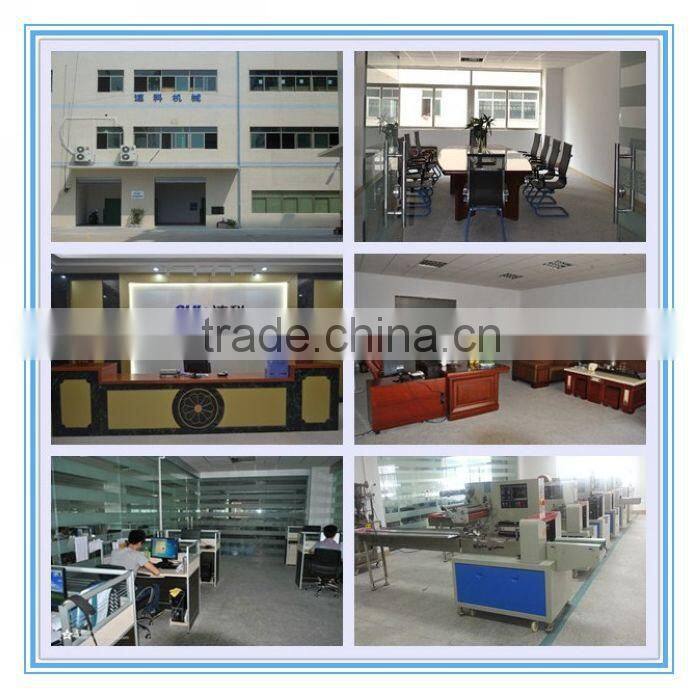

Workshop:
Packaging:
Sample:
