Automatic Hardware Appliance Packing Machine1. high speed
2.stable operation
3.PLC control

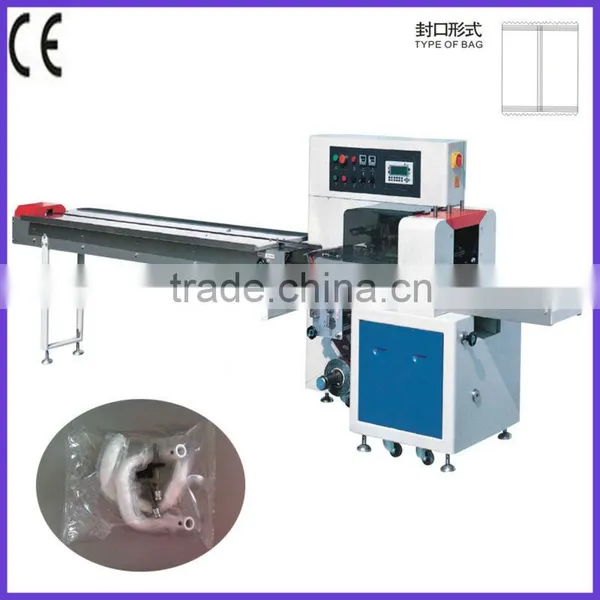

SZ-350X Automatic Hardware Appliance Packing Machine
I.FEATURES
1. Dual frequency conversion control,bag length can be set and cut in one step,saving time and film.
2.interface features easy and quick setting and operation.
3. Self failure diagnosis,clear failure display.
4. High sensitvity photoelectric eye color tracing,numerical input of cutting sealing position for estra accuracy.
5. Temperature independent PID control,more suitable for packaging different materials.
6. Positioned stop function,without sticking knife or wasing film.
7. Simple driving system,reliable working,conwenient maintenance.
8. All control is realized through software,esay for function adjusting and technical upgrade.
Automatic Hardware Appliance Packing Machine
II. APPLICATIONS
Packaging various kinds of regular objects like biscuits,pies,chocolates,bread,instant noodles,mooncakes,drugs,daily appliances,industrial parts,paperboxes,plates,etc.
Automatic Hardware Appliance Packing Machine
III. SPECIFICATIONS
Model |
SZ-350X |
Film width |
Max.350mm |
Bag length |
65~190mm Or 120~280mm |
Bag width |
50~160mm |
Product height |
Max. 45mm |
Film roll diameter |
Max.320mm |
Packing speed |
40~230 pack/minute |
Power supply |
220V,50/60HZ,2.8KW |
Machine size |
(L)4020X(W)720X(H)1320mm |
Machine weight |
900Kg |
Welcome your visit and contact me:
