Specifications
1. packaging various kinds of regular objects like biscuits, etc.2. high packing rate
3. ease to operate
FOSHAN SUK Packing Machinery Co.,Ltd is a professional packaging machine manufacturer with 5 years' experience in China. We offer over 18 various kinds of packaging machines and our monthly output amounts to more 100 sets. We will supply you a high quality packing machine and a resonable price .Hoping to be your reliable parter in China.
Packing material: Heat-sealable laminated film, such as: OPP,PE,PVC,PT/PE,OPP/CPP ,other special sealable packing film.
Sealing Type: Back-sealed (3 sides sealed)
SZ- 600W Super rate horizontal flow Reciprocating pillow machine,packaging
I. Main performance and structure features
1. Dual frequency conversion control ,bag length can be set and cut in one step,saving time and films.
2. Colorful touch screen,easy and quick setting and operation.
3. Self diagnosis failure function,clear failure diaplay.
4. High sensitivity photoelectric eye color trace the bag,numerical input of cutting sealing position for extra accuracy.
5. The temperature of each seal is independent. PID control is suitable to various packaging materials.
6.Recoprocating type sealing device,filmer sealing,no wasting in mould sealing cutter.
7.Teminal sealing device,more beautiful bag shape,improving products level.
8. Positioning stop function without sticking knife, cutting and wasting envelope.
9. Simple driving system,reliable working,convenient maintenance.
10. All controls are implemented by software. It can install intermittent air device and spray alcohol device to implement adjusting functions immediately and upgrading technology to ensure it will never fall behind.
II. Application
Suitable for packing regular object with inserting angles like,biscut,pies,mooncakes,noodles,daily commoditiles,paper tissues,female sanitary towels,industrials parts,paper box,trays,etc.
III. Optional configuration
1. code machine 2. straight lines in the code printerseal round 3.reticualte end seal mourld 4.7-inch touch screen.
IV. Specification
| Type | SK-600W |
| Film width | Max.600mm |
| Bag lenghth | 120-450mm |
| Bag width | 50-280mm |
| Product height | Max.10-100mm |
| Film roll diameter | Max.320mm |
| Packaging rate | 20-80bag/min |
| Power | 220v50/60Hz 3.6KVA |
| Machine size | (L)4380x(W)970x(H)1500mm |
| Machine weight | 1160kg |
| Remarks | Reciprocating sealing and cutting system,with angle folding device |
V. Electric detailed list:
| No. | Product Name | Brand |
| 1 | PLC | Panasonic/Japan |
| 2 | INVERTER | Schneider |
| 3 | 7 inchTouch screen | Wei Lun/Taiwan |
| 4 | Intermediate Relay | OMRON |
| 5 | Switching power | Meanwell/Taiwan |
| 6 | solid state relay | Schneider |
| 7 | Temperature controller | Yatai/Shanghai |
| 8 | Photoelectricity colour code | Aiset |

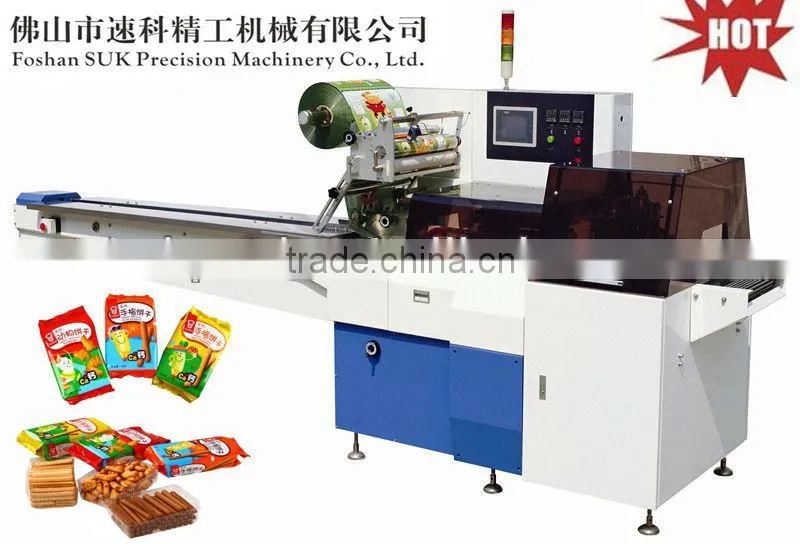

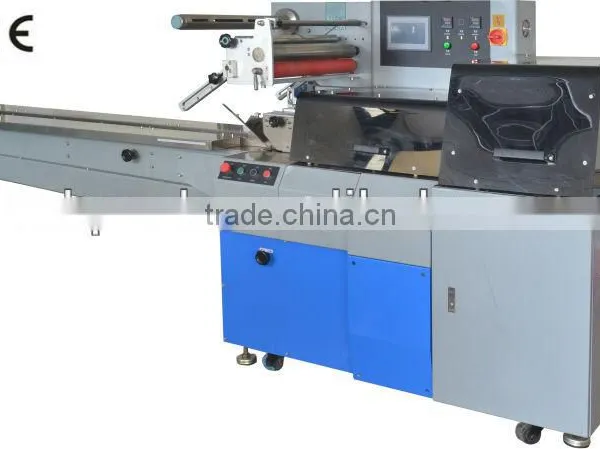

Machine pictrues:
Effect of packing :
Wooden packaging :
workshop:
