Specifications
1/ Simple Opearation;2/ Easy Maintenance;
3/ Durable;
4/ Efficient Follow-up Serivce
FOSHAN SUK Packing Machinery Co.,Ltd is a professional packaging machine manufacturer with 5 years' experience in China. We offer over 18 various kinds of packaging machines and our monthly output amounts to more 100 sets. We will supply you a high quality packing machine and a resonable price .Hoping to be your reliable parter in China.
Packing material: Heat-sealable laminated film, such as: OPP,PE,PVC,PT/PE,OPP/CPP ,other special sealable packing film.
Sealing Type: Back-sealed (3 sides sealed)
Pillow Packaging Machine SZ-320B
I. Main performance and structure features
1. Double transducer control, flexible bag length cutting, operator needn’t to adjust the unloading working, saving time and saving films.
2. human-machine operation, convenient and quick parameter setting.
3.Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking ,digital input cut position which makes the sealing and cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
8. .All the controls are achieved by software, convenient for function adjusting and upgrading.
II. Application
Suitable for packing regular objects such as biscuit, bread, instant noodle, moon cakes, industrial parts, paper box or trays.
III. Optional device
1. Code applying machine
2. Extra big screen
IV. Specification:
Type |
SZ-320B |
SZ-320D |
Film width |
Max.320mm |
|
Bag length |
65-190/120-280mm |
90-220/150-330mm |
Bag width |
50-160mm |
|
Product height |
Max.40mm |
Max.55mm |
Film roll diameter |
Max.320mm |
|
Packaging rate |
40-230bag/min |
|
Power |
220v 50/60Hz 2.6KVA |
|
Machine size |
(L)3770×(W)720×(H)1450mm |
|
Machine weight |
700kg |
|
Remarks |
Optional air filling device |
|
V. Electric detailed list:
| No. | Product Name | Brand |
| 1 | PLC | Panasonic/Japan |
| 2 | INVERTER | Schneider |
| 3 | 7 inchTouch screen | Wei Lun/Taiwan |
| 4 | Intermediate Relay | OMRON |
| 5 | Switching power | Meanwell/Taiwan |
| 6 | solid state relay | Schneider |
| 7 | Temperature controller | Yatai/Shanghai |
| 8 | Photoelectricity colour code | Aiset |

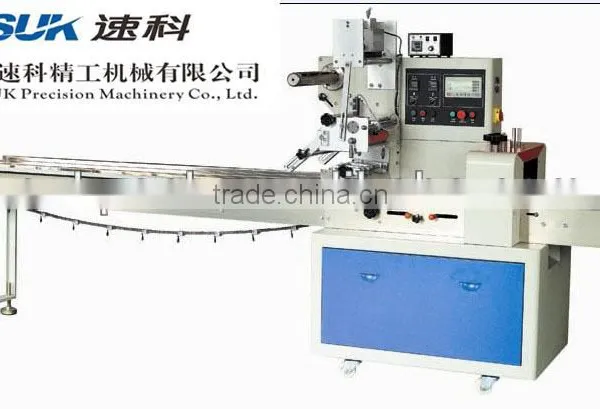

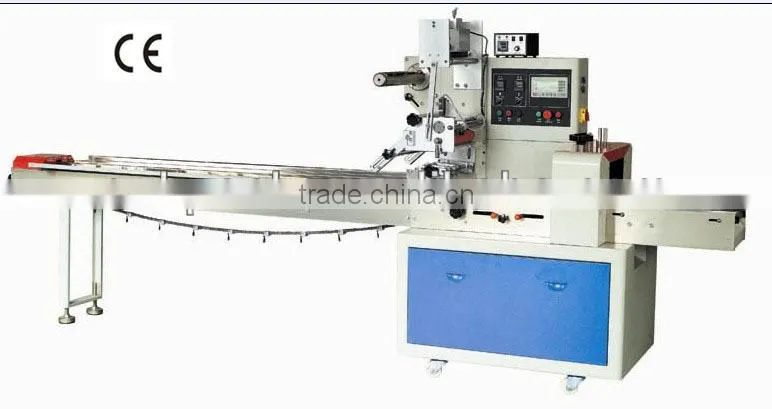

Machine pictrues:

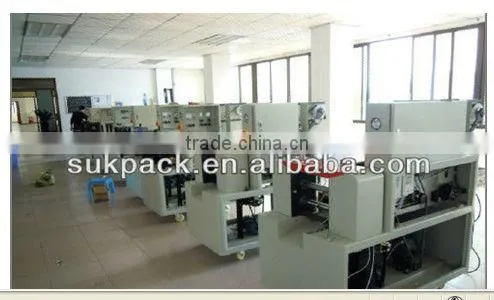

Workshop:
Effect of packing :
