Specifications
1. packaging various kinds of regular objects like biscuits, etc.2. high packing rate
3. ease to operate
FOSHAN SUK Packing Machinery Co.,Ltd is a professional packaging machine manufacturer with 5 years' experience in China. We offer over 18 various kinds of packaging machines and our monthly output amounts to more 100 sets. We will supply you a high quality packing machine and a resonable price .Hoping to be your reliable parter in China.
Packing material: Heat-sealable laminated film, such as: OPP,PE,PVC,PT/PE,OPP/CPP ,other special sealable packing film.
Sealing Type: Back-sealed (3 sides sealed)
SZ-350X Rotary pillow packaging machine(up graded)
I. Main performance and structure features
1. Double converters control bag length which can be set and cut. There is no need to adjust empty which will be prompted automatically by the humanized operation, saving time and membrane.
2. Master control circuit adopts imported single-chip microcomputer with man-machine interface and frequency control, making setting parameters convenient and quick and operation intuitive. Fully implement the humanized automatic operation.
3. Digital fault self-diagnosis function. Fault diagnosis is clear at a glance
4. Packing speed and bag length adopts dual frequency conversion control, digital sealing and cutting position input. The sealing and cutting position is precise, beautiful and solid.
5. Highly sensitive photoelectric device tracks automatically and accurately.
6. Positioning stop function without sticking knife, cutting and wasting envelope.
7. Double frequency contracted mechanical structure with less worn, easy maintenance and long life.
8. The temperature of each seal is independent. PID control is suitable to various packaging materials.
9. All controls are implemented by software. It can install intermittent air device and spray alcohol device to implement adjusting functions immediately and upgrading technology to ensure it will never fall behind.
II. Application
Disposable knfie and fork,towel,paper,noodles,cake,sausage,squid,popsicle,fudge,cookies,fresh frult and so on.
III. Optional configuration
1. code machine 2. straight lines in the code printerseal round 3.reticualte end seal mourld 4.7-inch touch screen.
IV. Specification
Type |
SZ-250X |
SZ-350X |
Film width |
Max.250mm |
Max.350mm |
Bag length |
65-190/120-280mm |
|
Bag width |
30-110mm |
50-160mm |
Product height |
Max.40mm |
|
Film roll diameter |
Max.320mm |
|
Packaging rate |
40-230bag/min |
|
Power |
220v 50/60Hz 2.4KW |
220v 50/60Hz 2.8KW |
Machine size |
(L)3920×(W)670×(H)1320mm |
(L)4020×(W)720×(H)1320mm |
Machine weight |
800kg |
900kg |
Remarks |
Optional air filling devlce |
|
V. Electric detailed list:
| No. | Product Name | Brand |
| 1 | PLC | Panasonic/Japan |
| 2 | INVERTER | Schneider |
| 3 | 7 inchTouch screen | Wei Lun/Taiwan |
| 4 | Intermediate Relay | OMRON |
| 5 | Switching power | Meanwell/Taiwan |
| 6 | solid state relay | Schneider |
| 7 | Temperature controller | Yatai/Shanghai |
| 8 | Photoelectricity colour code | Aiset |

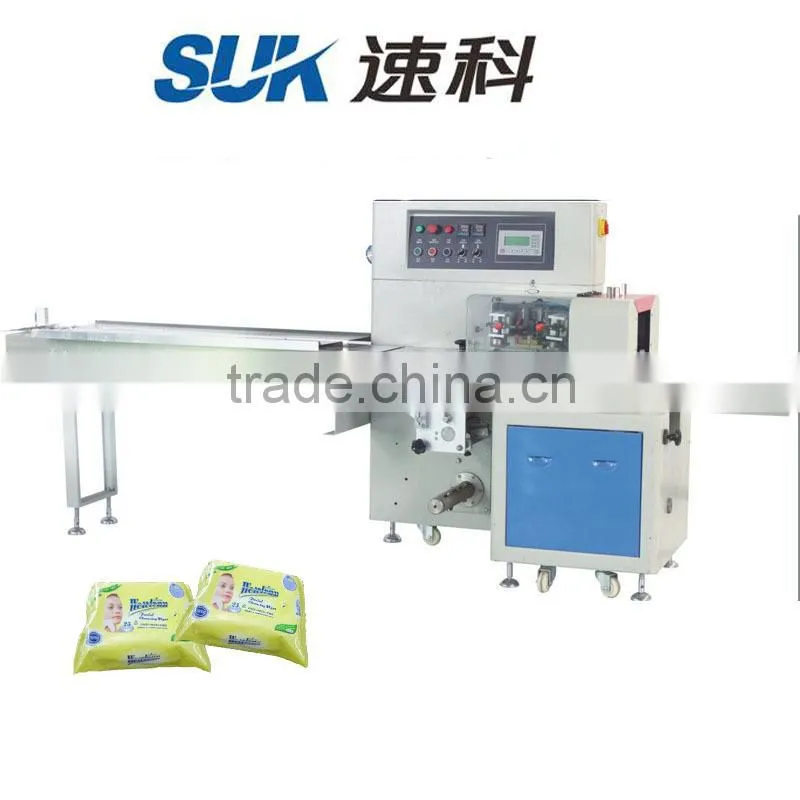

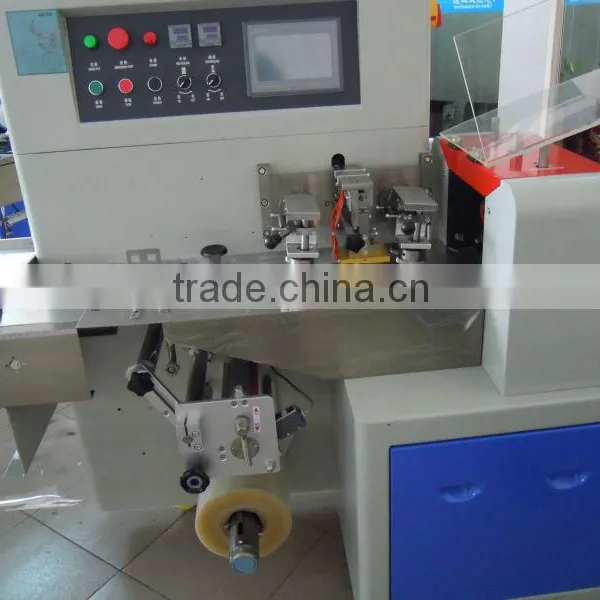

Machine pictrues:
Effect of packing :

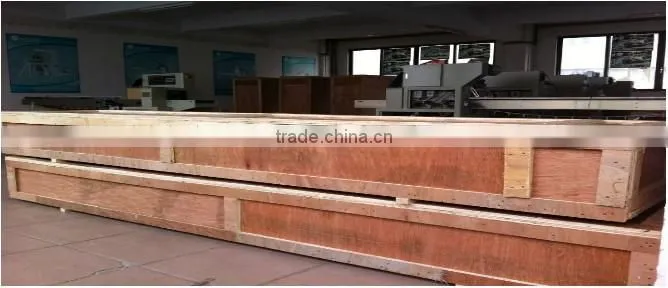

Wooden packaging :
workshop:
Contact me:
