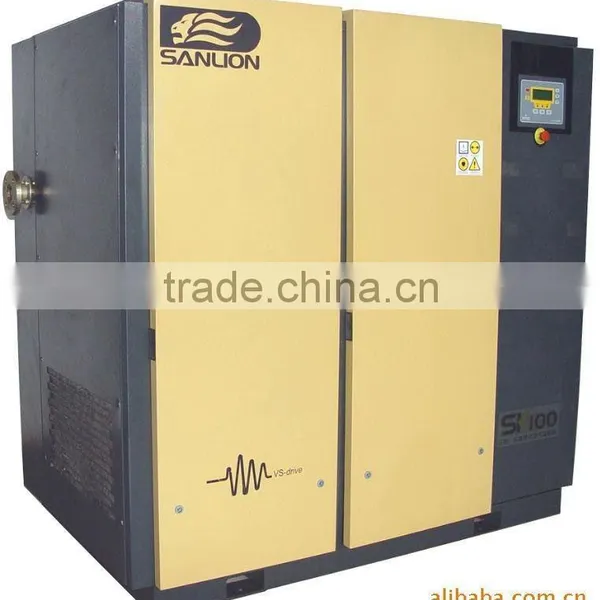

variable speed driven screw air compressor (75KW)
- 80 Set / Sets per Month
- Shanghai
- T/T D/P D/A Credit Card
Product Details
Type: | Rotary | Configuration: | Stationary | Power Source: | AC Power |
Lubrication Style: | Lubricated | Mute: | Yes | Place of Origin: | Zhejiang, China |
Brand Name: | SANLION | Model Number: | SK-100 |
Product Description
We are a Chinese air compressor manufacturer.
SANLION is our a brand.
SANLON variable speed driven screw air compressor (75KW), made by German ROTORCOMP airends. The depth oil/air separator, As Germany Hi-quality, best performance, good price!
The Power range from 5.5KW(7.5HP)to 250KW(340HP)
Working pressure from 7Bar(101.5PSI) to 13Bar(188.5PSI)
1. Our owned patent technology of Four-stage oil-gas dissociation system to secure the extremely low residual oil which is lower than 2PPM.
2. The most energy-efficient VSD screw air compressor, supply with constant pressure air and customer required air volume by automatically adjust the motor speed.
3. Originally imported from German ROTORCOMP or GHH-RAND airend or rotor to guarantee the reliablity and high efficiency.
4. High capacity and top performance frequency converter with vector, designed with working temperature of 60°C and continuous overload rating up to 150%, apply to high speed response without any abnormal stoppage.
5. Full performance and broad adjustment of pressure and flow. Make the continuous low-speed frequency up to 10HZ and high-speed to 70HZ by the specialized VSD main-motor, Enhance the compressor performance over to 30%, Set up the pressure randomly within 6-13Bar, 100% use the air volume under the required pressure, to achieve the best Input Power to Air Volume.
6. Control the pressure fluctuation within 0.1bar by the specialized controller with PID calculator and precisely adjusted VSD parameters, to supply with constant pressure with customer required air volume.
7. Originally imported MANN+HUMMEL Air Filter, Oil Filter, and Oil-Air Separator to ensure the purity of oil and air, lowest loss of pressure, longer service time and maintenance interval.
8. DDR Multi-blade Centrifugal Fan with Higher efficiency, low power and noise, G2.5 vibration grade, high quality fan blade, ABB-tech for the motor with class-F insulation.
9. The fifth generation 2-line LCD digital intelligent control system of PLC
The parameter of SK-100 as follows:
Model | Motor Power | Exhaust Pressure | Air Displacement | Noise | Interface | Size | Weight | ||
KW | HP | Bar | Kg/cm2 | m3/min | dB(A) | CM | Kg | ||
SK100 08DS | 75 | 100 | 8 | 8.2 | 13.8 | 75 | G2 | 151*131*185 | 1560 |
SK100 10 DS | 75 | 100 | 10 | 10.2 | 12.5 | 75 | G2 | 151*131*185 | 1560 |
SK100 13 DS | 75 | 100 | 13 | 13.2 | 10.5 | 75 | G2 | 151*131*185 | 1560 |
SK100 VS | 75 | 100 | 5-13 | 5.1-13.3 | 4-14.8 | 70 | G2” | 192*121*187 | 1520 |
