Home > Products > LED Tunnel Light > high quality LED Tunnel Lighting

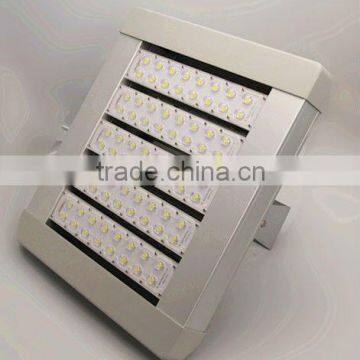

high quality LED Tunnel Lighting
- 5000 Piece / Pieces per Month
- shenzhen
- Credit Card
You May Like
Product Details
| Input Voltage(V) | AC 90-277V | Lamp Power(W) | 96 | |
| Lamp Luminous Flux(lm) | 7800 | Working Temperature(℃) | -20, +45 | |
| Working Lifetime(Hour) | 50000 | Place of Origin | Guangdong, China | |
| Brand Name | ILLUSION | Model Number | TL3096 |
Product Description
Specifications
1.luminous flux 7800lm2.Standard exposed wire length(m) 11.2
3.Module Amount 6
4.Nominal Power 96w
Product Features
The Tunnel Light use the combination of several modules, the IP rate of each module is IP65;
It uses High-Power LED with high-brightness. The PC material cover of the modules is optical PC with optical lens;
Even light effect; long lifespan of 50,000h;
Beam Angle: 90°*120°, this meets the street lightning requirements;
Lighting Angle can be readjusted, which make it convenient for the replacement of traditional tunnel light;
Novel style, excellent heat sinking, low power consumption, impact resistance, high reliability, energy-saving and environmental friendly, pleasant light temperature.
Technical Parameter
Part No. | TL3064 | TL3080 | TL3096 |
Module Amount | 4 | 5 | 6 |
Voltage(V) | AC 90-277V | ||
Nominal Power(Watts) | 64 | 80 | 96 |
Nominal Luminous Flux (LM) | 5200 | 6500 | 7800 |
Beam Angle(degrees) | 90°*120° | ||
Color Temperature(K) | Warm White 3500±300/ Pure White 6000±500 | ||
Power Transform Efficiency | >90% | ||
Length of the Exposed Wire (m) | 0.6 | ||
Connecting Wire | Power-supply: 3-core rubber wire 3X1.0mm2 | ||
Net Weight( kg) | 9.2 | 10.2 | 11.2 |
IP Rate | IP65 | ||
Dimension Diagram (Unit: mm)
The angel of the lamp holder can be adjusted, range: ±75°
Part No. | TL3064 | TL3080 | TL3096 |
L Value | 358.4 | 428.4 | 482.4 |
