Home > Products > LED Tunnel Light > High Brightness 50W IP65 High Power LED Tunnel Light

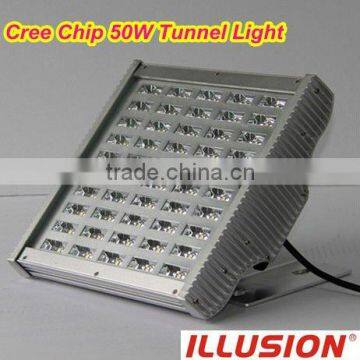

High Brightness 50W IP65 High Power LED Tunnel Light

FOB Price

Negotiable / Piece

5 Pieces(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Light Source	Induction Lamps	Input Voltage(V)	100-240V
Lamp Power(W)	52	Lamp Luminous Flux(lm)	3500
Lamp Luminous Efficiency(lm/w)	70	Color Temperature(CCT)	Cool White
Working Temperature(℃)	-35, +40	Working Lifetime(Hour)	50000
Lamp Body Material	Aluminum Alloy	IP Rating	IP65
Certification	CE	Base Type	FESTOON
Place of Origin	Guangdong, China	Brand Name	ILLUSION
Model Number	TL1003

Product Description

Specifications

LED Tunnel Light
1.CE&ROHS approved,
2.Power available: 50w, 90w, 120w
3.Cree Chip
4.LEDs take turns to rest

High Brightness 50W IP65 High Power LED Tunnel Light

Advantage:

According to the tunnel illumination's characteristic, it controls the led(take group as unit) to work samsara by control system, make sure the operation feasibility of LED can work in long term, the rest time in turn is five minutes, 25 minutes one samsara.

Technique Parameter:

Par No.	IL1003	IL1002	IL1001
LED Quantity	50 Pcs	90 Pcs	120 Pcs
Input voltage	100-240V AC 50/60Hz
Input current	250m A	430m A	600m A
Input power	52W	95W	125W
Power Factor	>0.9
Power efficiency	>90%
Projection distance	Length 8m,width 5m (High 5m)	Length 10m,width 5m (High 6m)	Length12m,width 6m (High 8m)
Luminous	3500 lm	6300 lm	8400 lm
Lighting efficiency	>80%
Wavelength(K)	6500±500K
colouration index	Ra>75
Junction temperature	<70 degrees
Working environment	Environment temperature -35~40°C,Relative humidity 10%~90%
Storage temperature	When it doesn't work, the storage temperature is -35 ~ 80 degrees
Life span	>30000Hrs
Material	Aluminum alloy, PC,toughened glass
Size	310x306x90mm	510x306x90mm	660x306x90mm
Height of Installation	4-5M	6M	6-8M
Net weight	5KG	8KG	9.5KG
IP Rank	IP65
Installation	Hoisting screws fixed

Dimension:

We believe that every customer should have the product they want or need.

We offer a varity of solutions with the help of our engineers.

As a factory we have the capability to produce things according to your requirment.

Meantime we are also trying to offer better forsale and aftersale service and always better price.

Feel free to contact us at any time to discuss your need.

We are very glad if you do not hesitate to send us any of your inquiries and we will always give satisfactory services.
